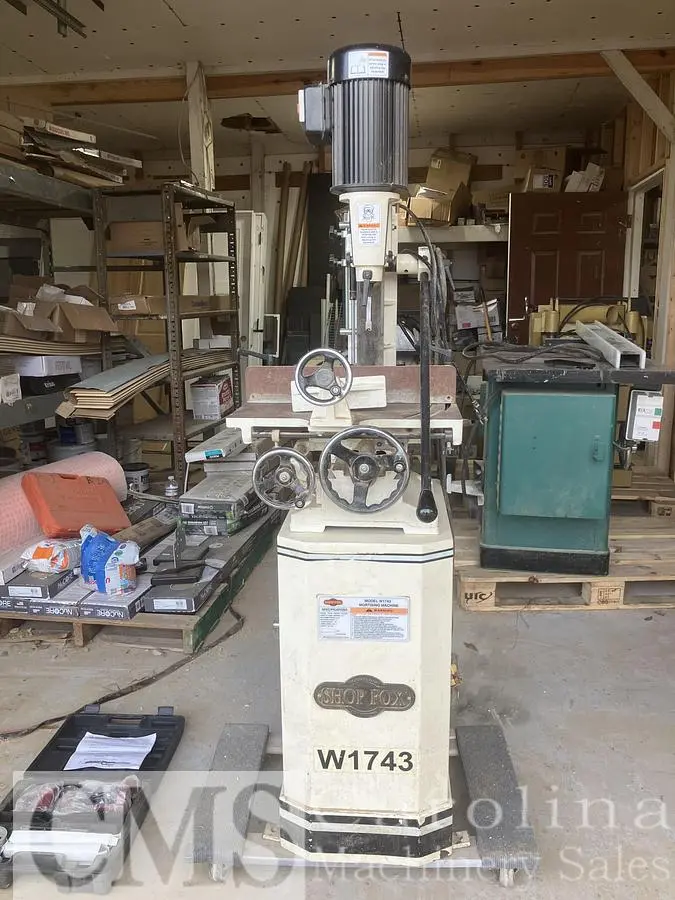

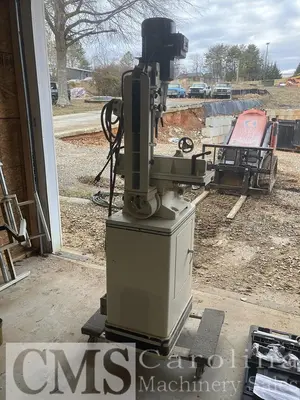

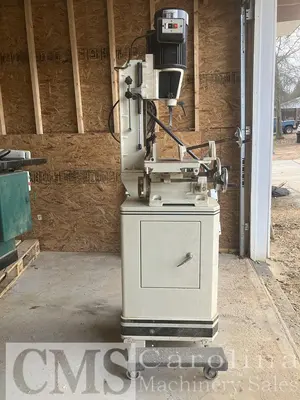

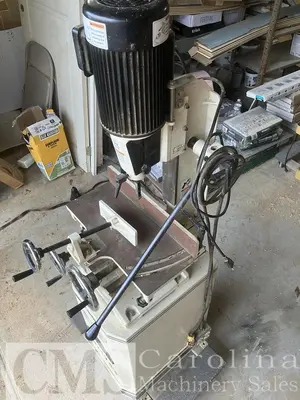

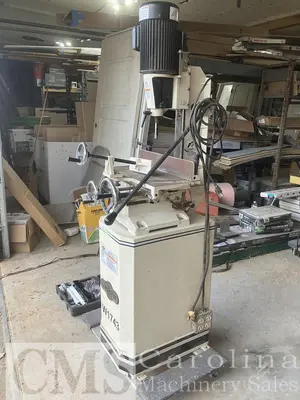

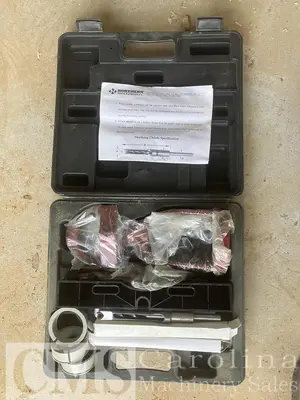

USED 2006 SHOPFOX W1743 MORTISER

Shop Fox W1743 Mortiser
Manufacturer Specifications
Product Dimensions
Weight.......................................................................................................... 263 lbs.
Width (side-to-side) x Depth (front-to-back) x Height........................................ 24 x 36 x 71 in.
Footprint (Length x Width).................................................................... 20-1/2 x 17-1/2 in.
Shipping Dimensions
Carton #1
Carton #2
Type........................................................................................... Wood Slat Crate
Content................................................................................................. Machine
Weight................................................................................................... 308 lbs.
Length x Width x Height..................................................................... 23 x 22 x 36 in.
Type.................................................................................................. Cardboard
Content.................................................................................................... Stand
Weight.................................................................................................... 68 lbs.
Length x Width x Height..................................................................... 19 x 22 x 29 in.
Electrical
Motors
Power Requirement.............................................................. 110V/220, Single-Phase, 60 Hz
Minimum Circuit Size......................................................................................... 15 Amp
Switch............................................................................................ On/Off Push Switch
Switch Voltage.................................................................................................... 110V
Cord Length....................................................................................................... 6 ft.
Cord Gauge................................................................................................... 16 gauge
Plug Included....................................................................................................... Yes
Main
Type......................................................................... TEFC Capacitor Start Induction
Horsepower........................................................................................... 1-1/2 HP
Voltage................................................................................................ 110/220V
Prewired.................................................................................................... 110V
Phase...................................................................................................... Single
Amps....................................................................................................... 14/7A
Speed.................................................................................................. 1725 RPM
Cycle....................................................................................................... 60 Hz
Number of Speeds............................................................................................. 1
Power Transfer ................................................................................... Direct Drive
Bearings............................................................. Shielded and Permanently Lubricated
Bearings............................................................. Shielded and Permanently Lubricated
Model W1743 Machine Specifications, Page 1 of 2Main Specifications
Operation
Table Cross Travel......................................................................................... 3 in.
Table Longitudinal Travel......................................................................... 14-1/2 in.
Vertical Spindle Travel................................................................................... 9 in.
Column Tilt....................................................................... Left and Right 30 degrees
Head Vertical Traverse................................................................................... 3 in.
No Of Spindle Speeds......................................................................................... 1
Range Of Spindle Speeds........................................................................... 1725 RPM
Cutting Capacities
Maximum Stock Width.................................................................................... 9 in.
Maximum Stock Thickness.......................................................................... 6-5/8 in.
Maximum Mortising Depth.......................................................................... 6-1/4 in.
Maximum Chisel Travel............................................................................. 6-1/4 in.
Chisel Size Range................................................................................... 1/4 – 1 in.
Fence to Chisel Center Distance........................................................................ 3 in.
Extendable Work Stop Length..................................................................... 30-1/2 in.
Table Information
Table Size Length................................................................................... 12-1/2 in.
Table Size Width......................................................................................... 19 in.
Floor To Table Height.............................................................................. 36-3/4 in.
Chuck Information
Chuck Type............................................................................................... Keyed
Chuck Size............................................................................................... 1/2 in.
Chuck Capacity.......................................................................................... 1/2 in.
Construction
Base.................................................................................................... Cast Iron
Head.................................................................................................... Cast Iron
Table......................................................................................... Ground Cast Iron
Paint....................................................................................................... Epoxy
Cabinet..................................................................................................... Steel
Column................................................................................................. Cast Iron
Fence......................................................................................... Ground Cast Iron........................................................................................................ 2 Year

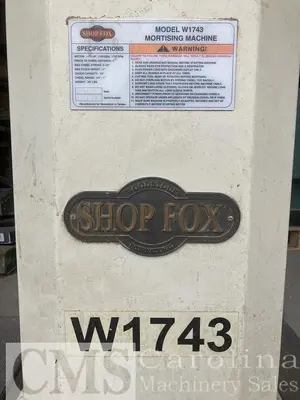

Serial Number Location .................................................................................. Data Plate
Customer Assembly & Setup Time .......................................................................... 1 Hour
