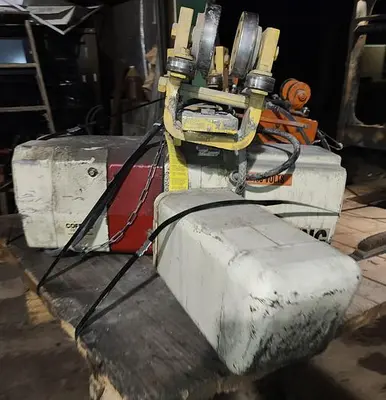

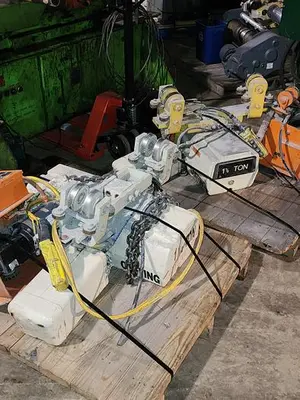

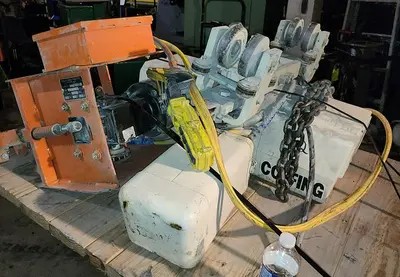

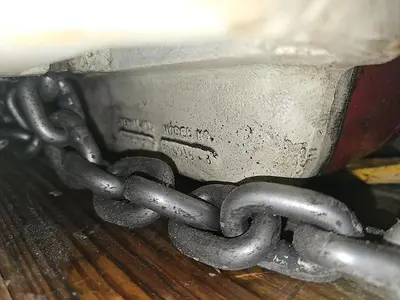

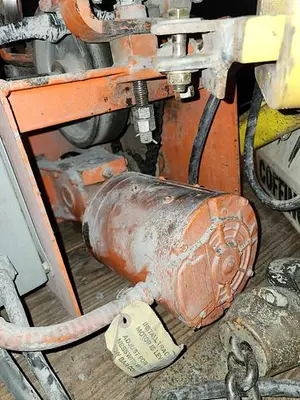

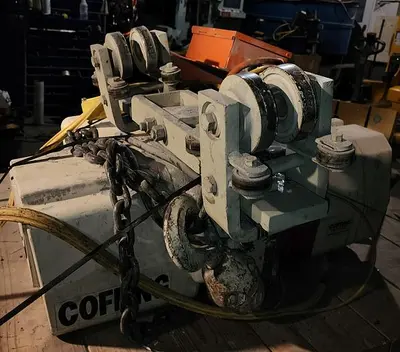

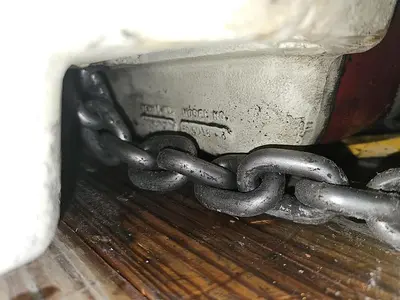

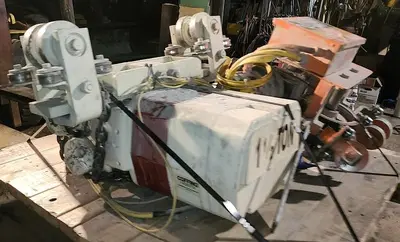

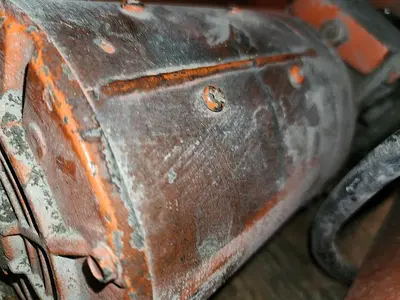

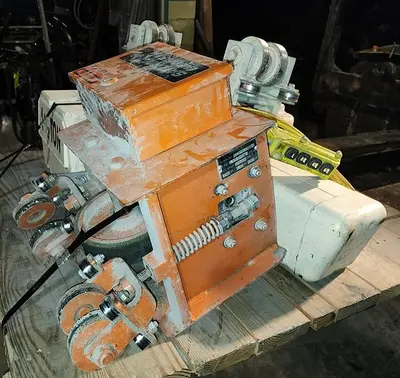

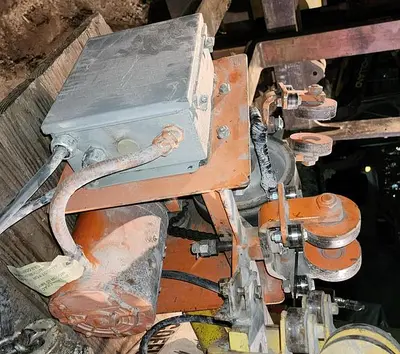

Coffing EC4016-3 | 2-Ton Electric Chain Hoist & Saturn Tractor DriveSYSTEM OVERVIEWThis is a professional-grade, high-capacity lifting and travel solution featuring the Coffing EC4016-3 (Large Frame) hoist integrated with a Saturn Engineering Motorized Tractor Drive.Designed for H4 Severe Duty environments, this system provides effortless vertical lifting and motorized horizontal transport. The Saturn Tractor drive ensures positive traction across long monorails or bridge cranes, eliminating the physical strain of manual pushing.TECHNICAL SPECIFICATIONSVertical Lift: Coffing EC4016-3Capacity: 2-Ton (4,000 lbs) / Adjustable for 1.5-Ton applicationsLifting Speed: 16 FPM (Feet Per Minute)Motor: 2.0 HP High-TorquePower: 230/460V | 3-Phase | 60 HzDuty Rating: H4 Industrial DutyBraking: Dual System (DC Magnetic + Mechanical Load Brake)Horizontal Travel: Saturn Tractor DriveManufacturer: Saturn EngineeringDrive Type: Spring-loaded friction drive wheelAdvantage: Provides superior grip on beams where standard geared trolleys might slip.Compatibility: Fits standard I-Beams, S-Beams, and Wide Flange rails.PREMIUM FEATURESMotorized Propulsion: The Saturn Tractor Drive allows for precise, effortless movement of heavy loads along the rail via the pendant control.Large Frame Construction: Built with ductile iron housings rather than standard aluminum, providing the structural integrity required for 4,000 lb loads.Precision 5-Pocket Sheave: Increases chain-to-wheel engagement by 25%, resulting in smoother lifting and significantly reduced chain wear.Mechanical Overload Protection: Features a factory-set clutch that prevents the hoist from lifting loads beyond rated capacity.Oil-Bath Lubrication: Triple-reduction helical gearing operates in a continuous oil bath for maximum heat dissipation and quiet operation.
S/N: EC3E242MD
Capacity: 5000 lbs
Speed: 55 FPM
