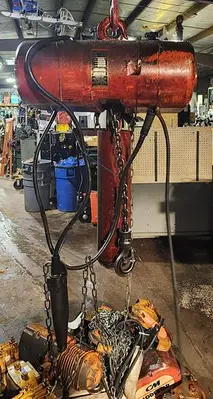

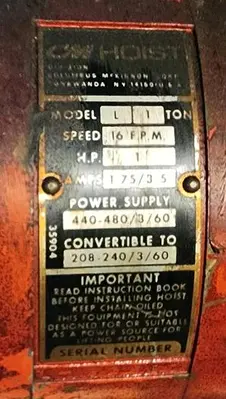

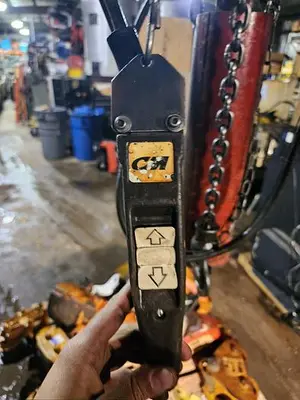

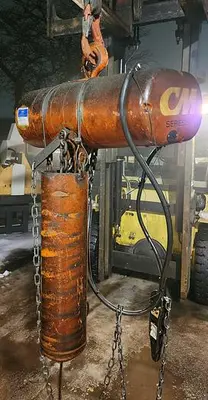

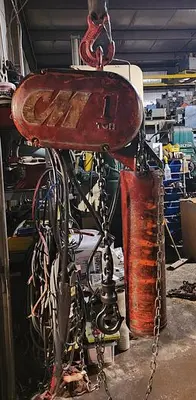

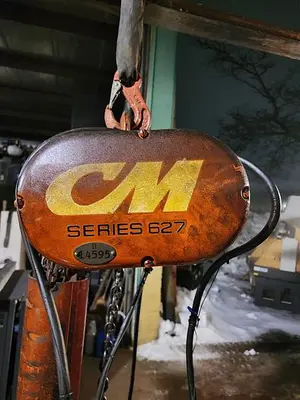

CM Series 627 Model L | 1 Ton Electric Chain Hoist & TrolleyOVERVIEWThe CM Series 627 Model L is a heavy-duty, industrial-grade lifting system designed for reliability and ease of use in professional environments. This 1 Ton (2,000 lb) capacity unit comes integrated with a matching trolley, making it a "ready-to-install" solution for monorails, bridge cranes, and workstation jib cranes. Known for its rugged aluminum construction and efficient power delivery, the Series 627 is a versatile alternative to the Lodestar series for standard industrial lifting.TECHNICAL SPECIFICATIONSManufacturer: CM (Columbus McKinnon)Model: Series 627 (Model L)Capacity: 1 Ton (2,000 lbs)Lifting Speed: 16 FPM (Feet Per Minute)Power Supply: 230/460V | 3-Phase | 60 HzDuty Class: H4 Rated (High-cycle industrial service)Trolley Type: Adjustable I-Beam/S-Beam TrolleyControl: 115V Pendant Control (Standard)KEY FEATURESINTEGRATED TROLLEY SYSTEM: The hoist is factory-mated to a high-quality trolley that is fully adjustable to fit various beam flange widths. This ensures smooth horizontal travel and easy integration into existing rail systems.PRECISION HELICAL GEARING: Engineered with hardened steel gears operating in a lifetime grease lubrication bath. This design provides quiet operation and eliminates the maintenance hassle of oil changes.DUAL-BRAKE SAFETY: Features a primary DC magnetic brake for instantaneous stopping and a secondary mechanical load brake for redundant fail-safe protection during power loss.FRICTION CLUTCH OVERLOAD: Equipped with the CM Protector™ system, which acts as an automatic overload device to prevent the hoist from lifting loads beyond its rated capacity.HIGH-DUTY MOTOR: The 1 HP motor is designed with Class F insulation and a high-torque start, allowing it to handle frequent starts and stops without overheating in production environments.DURABLE CHASSIS: Housed in a lightweight but extremely tough aluminum alloy frame with a powder-coated finish for superior corrosion resistance.
Capacity: 1 Ton
Lift Capacity: 10'
Speed: 16 FPM
* Capacity: 1 Ton (2,000 lbs)

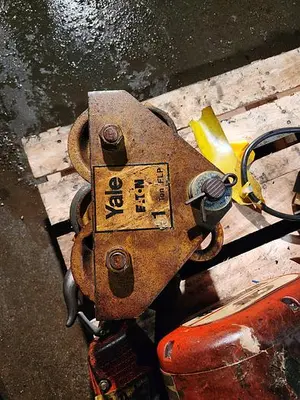

* Trolley Type: Adjustable I-Beam/S-Beam Trolley
* Control: 115V Pendant Control (Standard)
