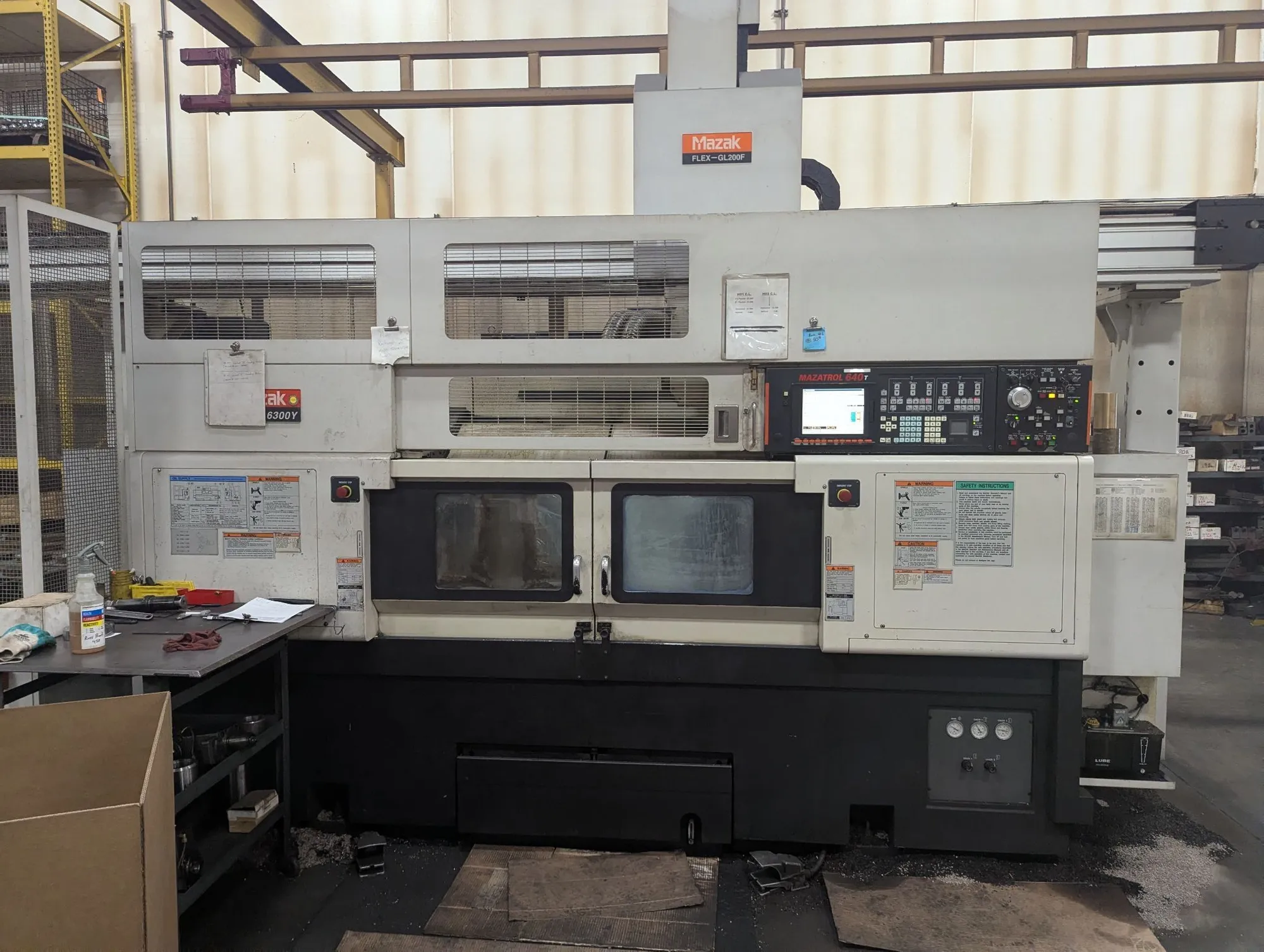

2005 Mazak Multiplex 6300Y with GL200F Gantry Loader with 10" Chucks, Live Tooling, Y-Axis, and Mayfran Chip Conveyor
| Year | 2005 | 2005 |
| # Axis | 5 | 5 |
| Swing | 16.93" | 430.02 mm |
| Machining Length | 25.59" | 649.99 mm |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 3" | 76.2 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 16.93" | 430.02 mm |
| Control | CNC (Mazatrol 640T) | CNC (Mazatrol 640T) |
| Dimensions | 95.3" x 167.7" x 85.44" | 95.3" x 167.7" x 85.44" |
| Weight | 26,840 LBS | 26,840 LBS |
Maximum Swing..............................16.93"
Standard Cutting Diameter..................13.0"
Maximum Cutting Diameter...................16.93"
Maximum Cutting Length Chuckwork...........8.86"
Maximum Cutting Length Shaftwork...........25.59"
Distance Between Spindle Faces.............9.82" - 57.09"
Spindle Nose...............................A2-8
Spindle Bore...............................3.46"
Maximum Bar Diameter.......................3.0"
Spindle Speed..............................4,000 RPM
Spindle Indexing (C-Axis)..................0.001 deg./360,000 Positions
Spindle Horsepower (30 min.)...............30 HP (AC)
Spindle Torque.............................441.34 ft.-lbs.
Turret Index Time (1 Step).................0.3 Seconds
Total Number of Tools......................24
Max. Turning & Facing......................1" x 1"
Max. Boring Bar Maximum Diameter...........2"
Milling Spindle Speed......................4,000 RPM
Milling Spindle Horsepower (10 Min)........10 HP (A.C.)
Milling Spindle Torque (4000 RPM)..........57.88 ft.-lbs.
Milling Spindle Torque (2000 RPM Option)...72.34 ft.-lbs.
Maximum Drill..............................7/8"
Maximum End Mill...........................13/16"
Maximum Tap................................8-5/8 UNC
Y-Axis Travel..............................+/- 3.0"
X-Axis Travel..............................12.2"
Z-Axis Travel..............................23.82"
Y-Axis Rapids..............................393 IPM
X & Z-Axis Rapids..........................945 IPM
C-Axis Rapids..............................400 RPM
Machine Floor Space (W x L)................95.3" x 167.7"
Machine Height.............................85.44"
Total Power Required (Machine Only)........76 KVA
Air Requirements...........................71 PSI
Total Weight (For Machine Only)............26,840 LBS
Mazatrol 640T CNC Control
10" Chucks
Live Tooling
Y-Axis
Flex GL200F Gantry Loader
Chip Conveyor
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
