| size | 1/4 X 14' | 1/4 X 14' |
| Max Thickness | 0.25" | 6.35 mm |
| Length of Blade | 14' | 4.3 m |

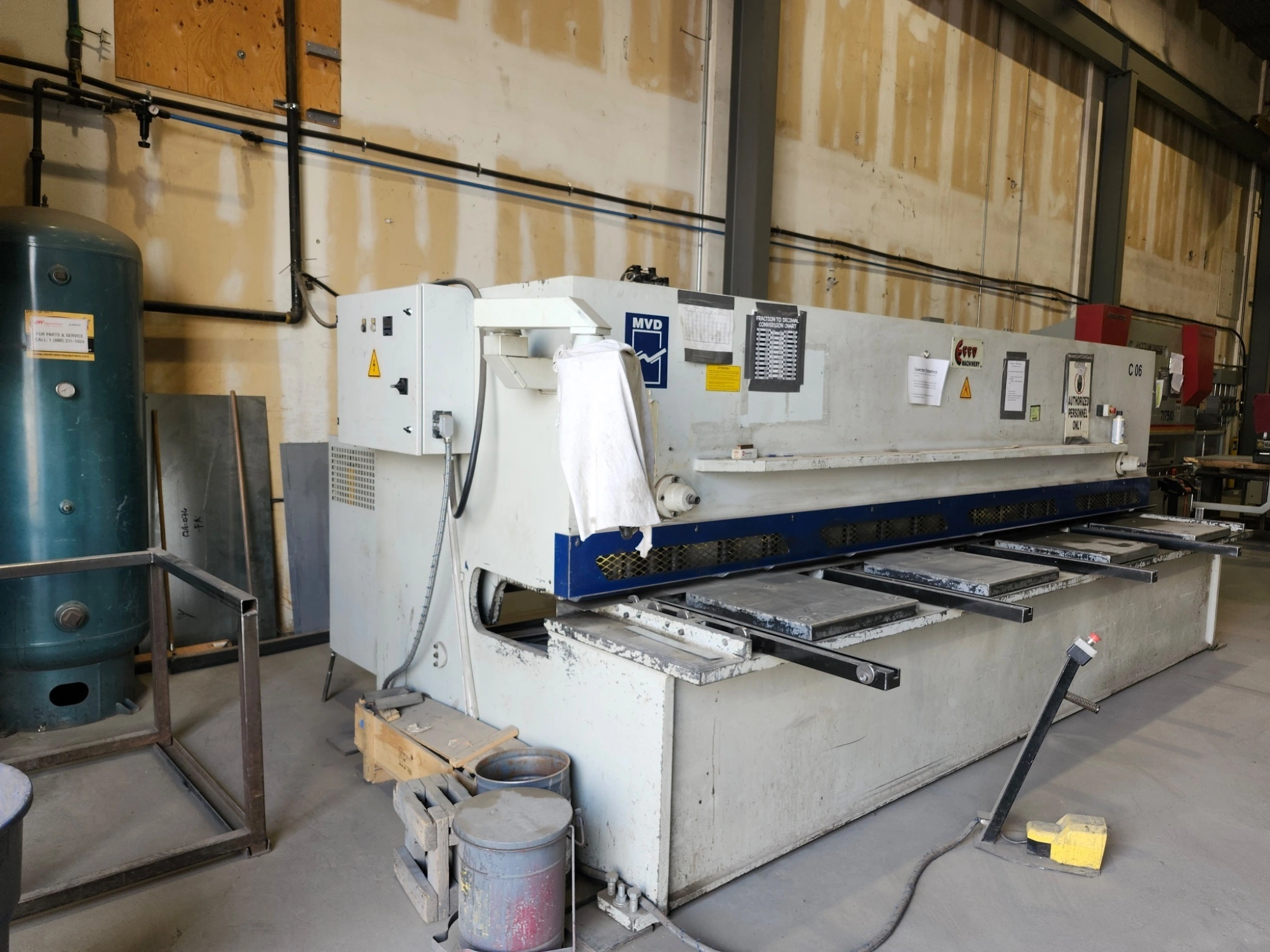

MVD 1/4" x 14' cnc Hydraulic Guillotine Shear C06-4300
Description
SPECIFICATIONS
Model C06-4300
Year: 2013
S/N: 1312231
Condition Used
GENERAL
Gauge Capacity 0.25 in
Horsepower 15 hp
Bed Length 14 ft
CNC Yes
ELECTRICAL
Voltage 220/440 volts
Phase 3-phase
OTHER SPECIFICATIONS
Max. cutting length: 4300 mm
Max. cutting thickness: 6 mm
Max. hydraulic pressure: 210 bar
Main motor power: 11 kW
overall full load current: 40 - 25 Amps
