Dependable, reliable, quality. Combining the durability and strength of Meehanite castings with precision engineering, Elite Geared Head Lathes turn out high quality components turn after turn. Designed with a universal gearbox to allow for a wide range of threading without gear changes, and Turcite-B coatings between the bed and carriage to provide smooth and accurate movement, these machines provide the perfect blend of performance and reliability you can come to expect from JET Elite.
| Lathe Type | Geared Head | Geared Head |
| Swing Over Bed | 17" | 431.8 mm |
| Distance Between Centers | 40" | 1,016 mm |
| Spindle Bore | 3.125" | 79.375 mm |
| Motor | 7.5 hp | 5.6 kW |
| Phase | 3 | 3 |
| Voltage | 230v | 230v |
| Amps | 22 | 22 |
| Dimensions | 94" x 44" x 68" | 94" x 44" x 68" |
| Weight | 3,747 lbs. | 3,747 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Parts and Labor

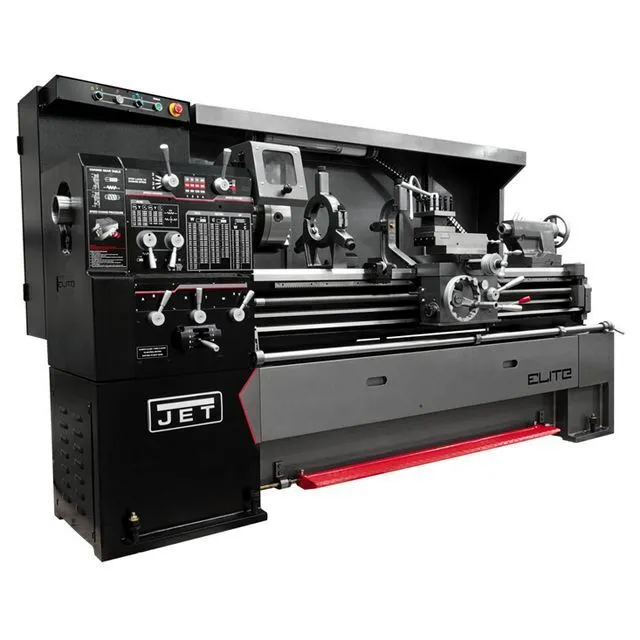

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
