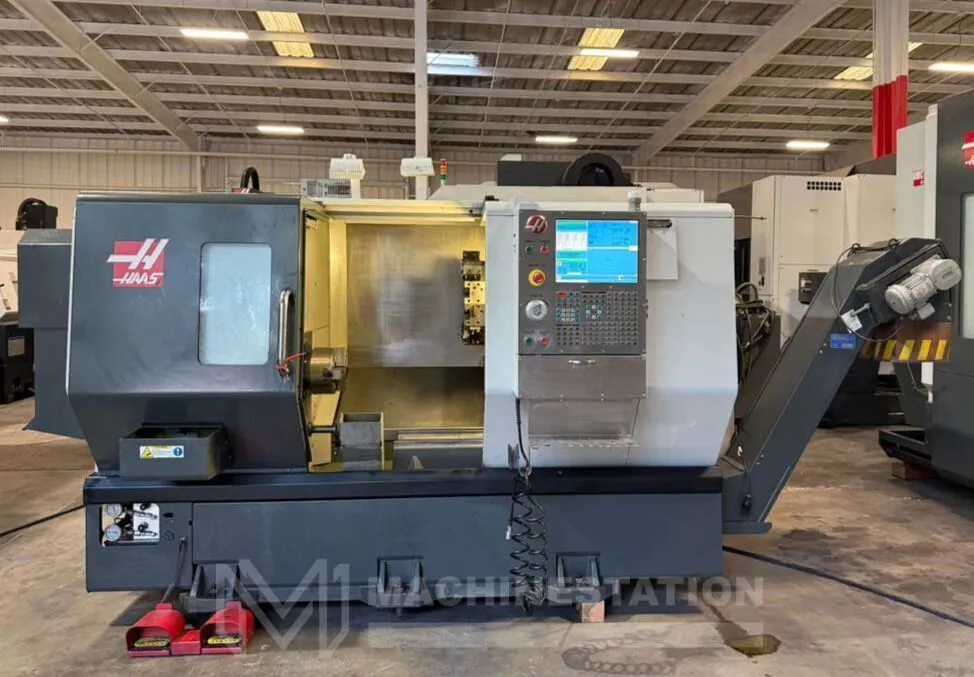

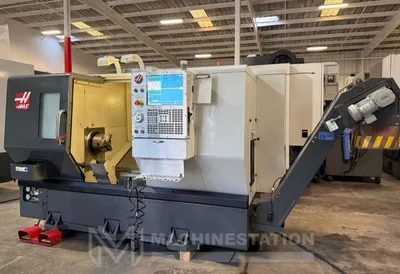

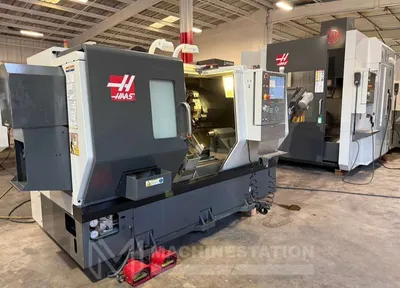

USED 2013 HAAS ST-20

Avoid Paying More! New Haas prices just went up 5% as of May 1st 2025— plus, long lead times on new machines mean delays and higher costs. This 2013 (Sold & Installed in 2014) Haas ST-20 is fully equipped with 8″ Chuck, 12 Station Turret, Programmable Tailstock, and Chip Conveyor.
One Owner all Original Paint Machine.

“Replacement Cost Over $90,000 with Similar Options”

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:
Haas CNC Control
A2-6 Spindle Nose
12 Station Automatic Turret
Rigid Tapping
Coolant Tank with Pump

Capacity:
Max Turning Diameter : 13.0″
Max Swing Over Bed : 21.0″
Max Turning Length: 22.5″
Max Bar Capacity : 2.00″

Travels:
X Axis Travel : 8.4″
Z Axis Travel : 22.5″

Feedrate:
Rapid Traverse X Axis: 945 IPM
Rapid Traverse Z Axis: 945 IPM

Spindle:
Spindle Nose: A2-6
Spindle Bore: 2.5″
Spindle Speed: 4000 RPM
Spindle Motor: 20 HP

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 1 Second
Turret Type: Bolt On Tool Turret

Tailstock:
Tailstock Taper: MT-4
Tailstock Quill Dia.: 2.6″
Tailstock Quill Travel: 3.1″

General:
Air Requirement: 4 scfm @ 100 psi
Power Source: AC 220v / 3-Phase / 60 Hz
Machine Dimensions: 142.5″ x 90″ x 92″ High
Machine Weight: 8820 lbs Approx.

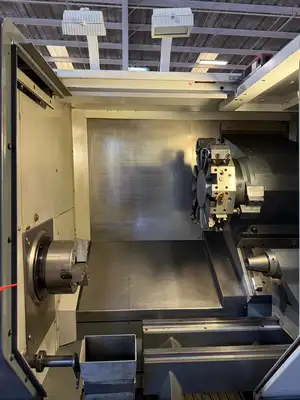

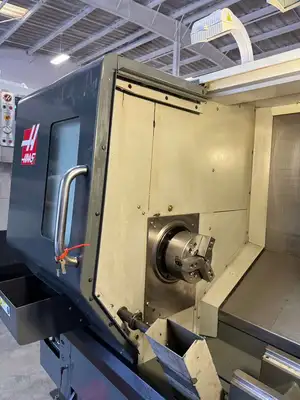

8” 3-Jaw Hydraulic Chuck
Programmable Hydraulic Tailstock (Upgraded $8,695 value Included) – Excellent For Longer Parts

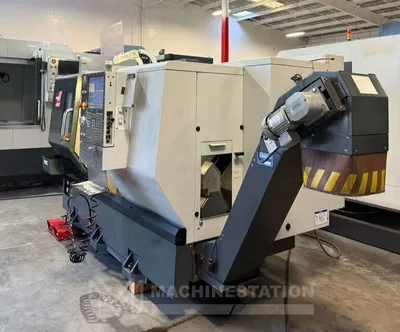

Belt Type Chip Conveyor (Upgraded $6,195 value Included) – For Efficient Chip Removal
Foot Switches

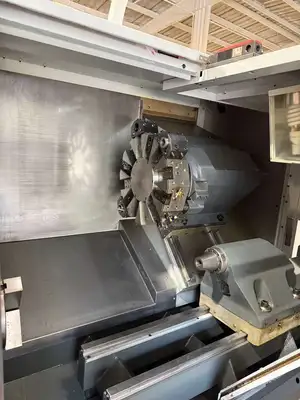

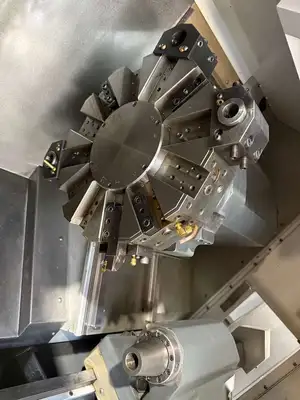

(3) Boring Tool Holders are Mounted on Turret (As shown in the images)
