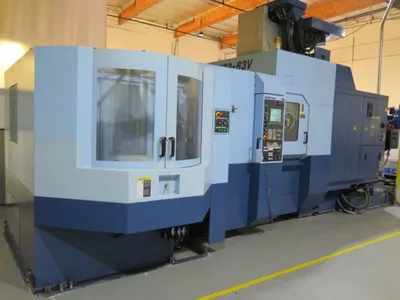

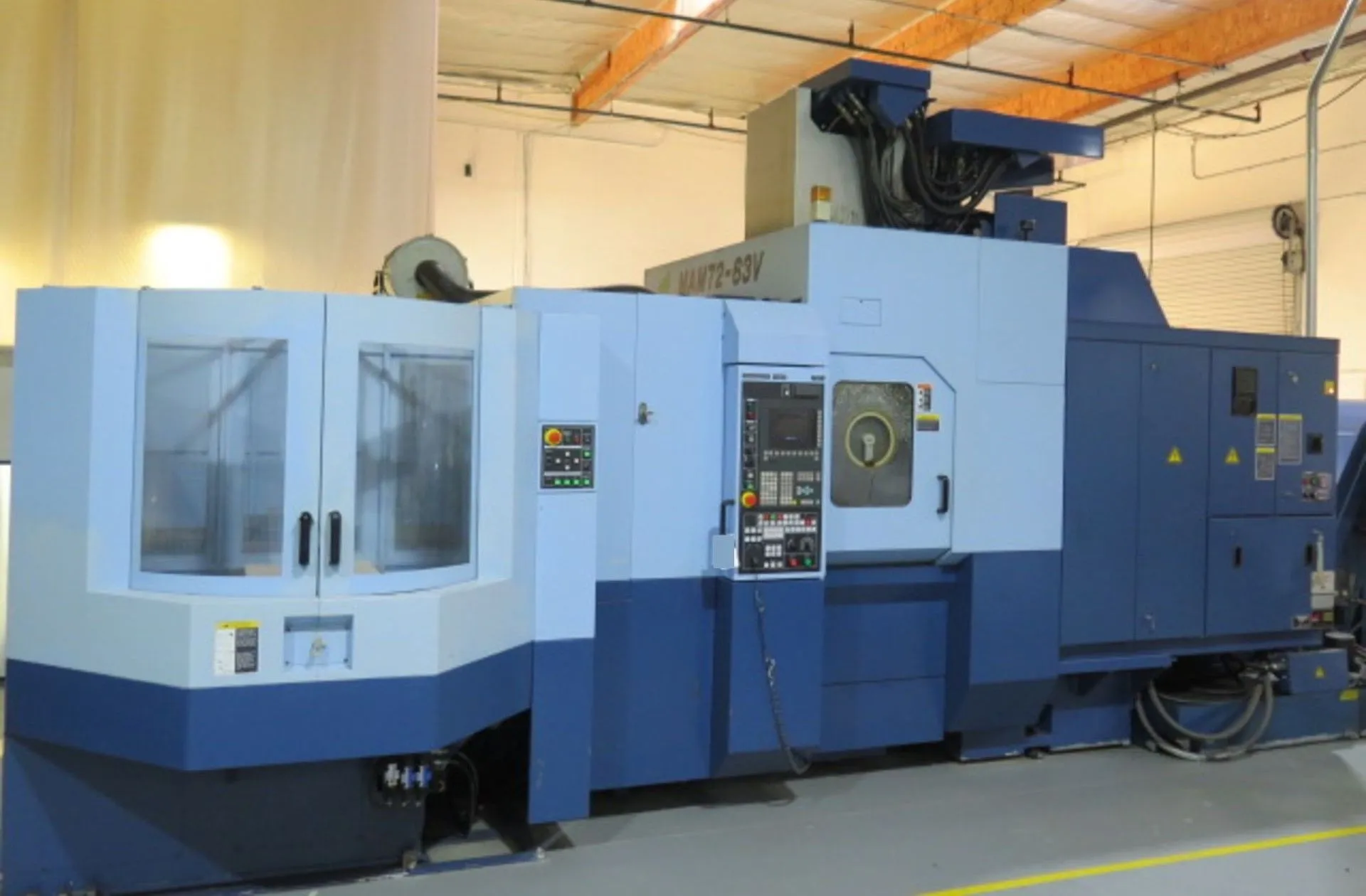

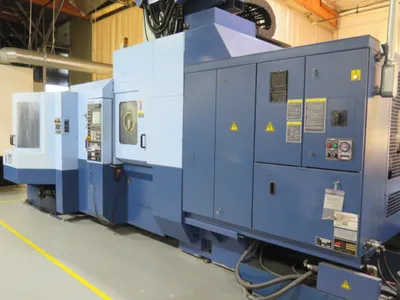

USED 2007 MATSUURA MAM 72-63V
Specifications
| X | 29.92" | 759.97 mm |
|---|---|---|
| Y | 33.26" | 844.8 mm |
| Z | 25.98" | 659.89 mm |
| # Axis | 5 | 5 |
| Power | 30 hp | 22.4 kW |
| RPM | 20,000 RPM | 20,000 RPM |
| # ATC | 240 | 240 |
| Taper | BT-40 | BT-40 |
| Control | CNC (Siemens) | CNC (Siemens) |
| Dimensions | 249in x 153in x 126in | 249in x 153in x 126in |
| Weight | 31967 lbs | 31967 lbs |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

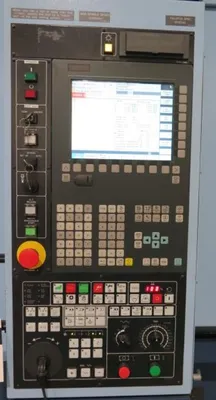

Siemens CNC Control

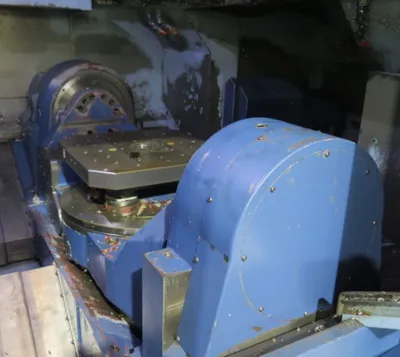

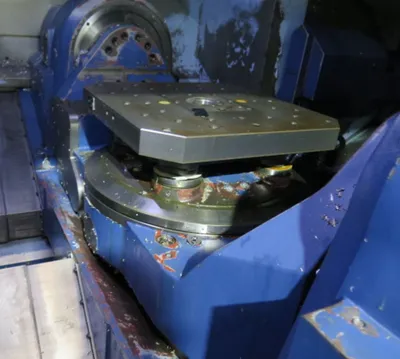

19.8” x 19.8” NC Programmable Swiveling Trunnion Table
5 Axis Simultaneous Machining
Full 4th Axis Thru Pallets
BT-40 Spindle Taper
Rigid Tapping

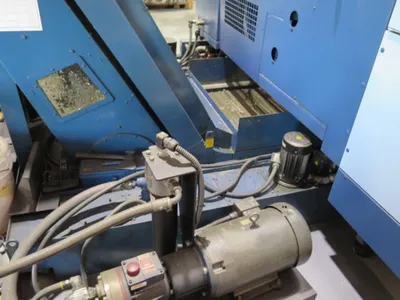

Coolant System
Travels:
X Axis: 29.92″
Y Axis: 33.26″
Z Axis: 25.98″
A Axis: 220° (+110°/– 110°) ( Table Tilt )
C Axis: 360° ( Table Rotate )
Rapid Traverse Rates X, Y, Z Axis: 1968 Inch Per Minute

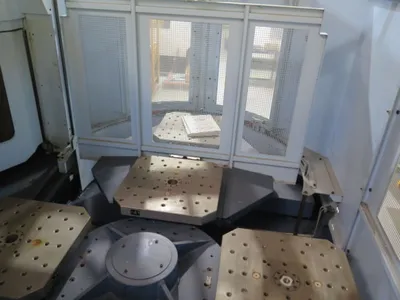

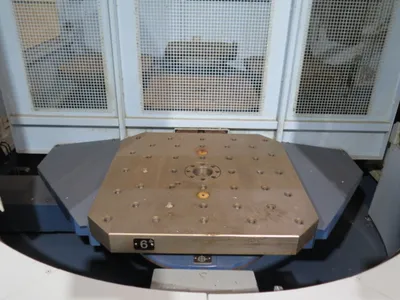

Pallet:
Number of Pallets: 6 Station
Pallet Surface: 19.68″ x 19.68″
Max Workpiece Diameter: 28.34″
Max Workpiece Height: 17.71″
Max Weight on Table: 770 lbs
Spindle:
Taper Size: BT-40
Speed Range: 20,000 RPM
Spindle Power: 30 HP

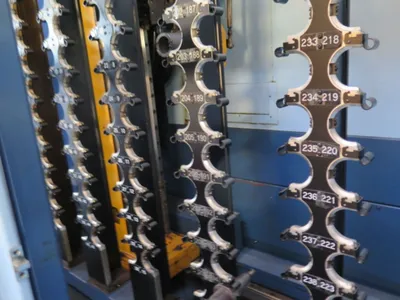

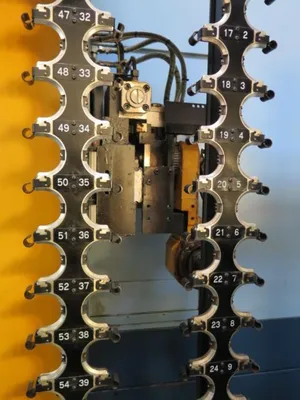

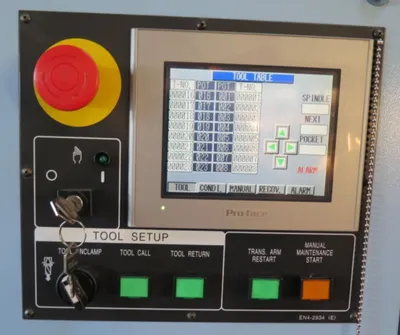

Automatic Tool Changer:
Capacity: 240 Tools
Taper: BT-40
Max Tool Diameter: 3.77″
Max Tool Length: 13.77″
Max Tool Weight: 22 lbs.
General:
Air Required: 80 psi 4 scfm

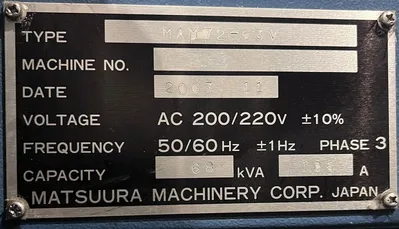

Power: 220v / 50/60 hz / 3-Phase / 68 kva
Overall Dimensions: 249″ X 153″ X 126″ High (Only Machine without Pallet Cell System)
Weight: 31,967 lbs Approx.
Equipped With

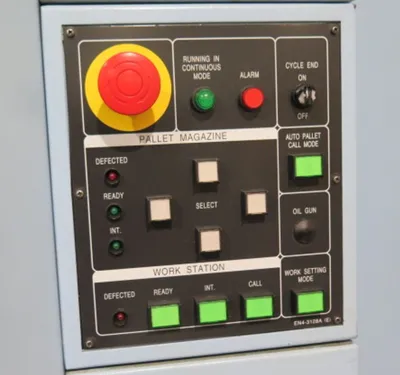

6 Pallets Cell System
20,000 RPM High Speed Spindle
Through Spindle Coolant

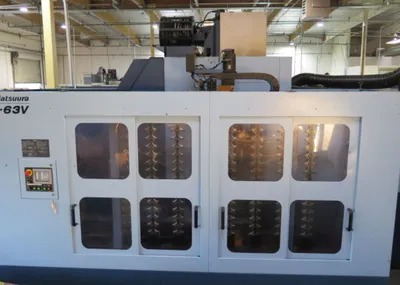

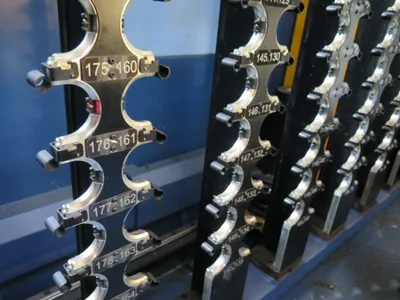

240 Station Automatic Tool Changer

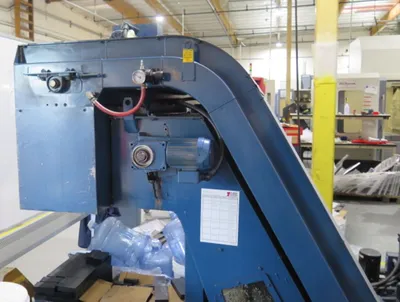

Chip Conveyor
