| X-Axis | 20.49" | 520.45 mm |
| Y-Axis | 16.95" | 430.53 mm |
| Z-Axis | 20.04" | 509.02 mm |
| A-axis | -140° -15° | -140° -15° |
| C-axis | 360° | 360° |
| Spindle Motor | 30 hp | 22.4 kW |
| Spindle Speed | 20,000 RPM | 20,000 RPM |
| ATC Capacity | 30 | 30 |
| Taper | CAT-40 | CAT-40 |
| Table Size | 25.7" x 15.7" | 25.7" x 15.7" |
| Table Load Capacity | 660 lb |

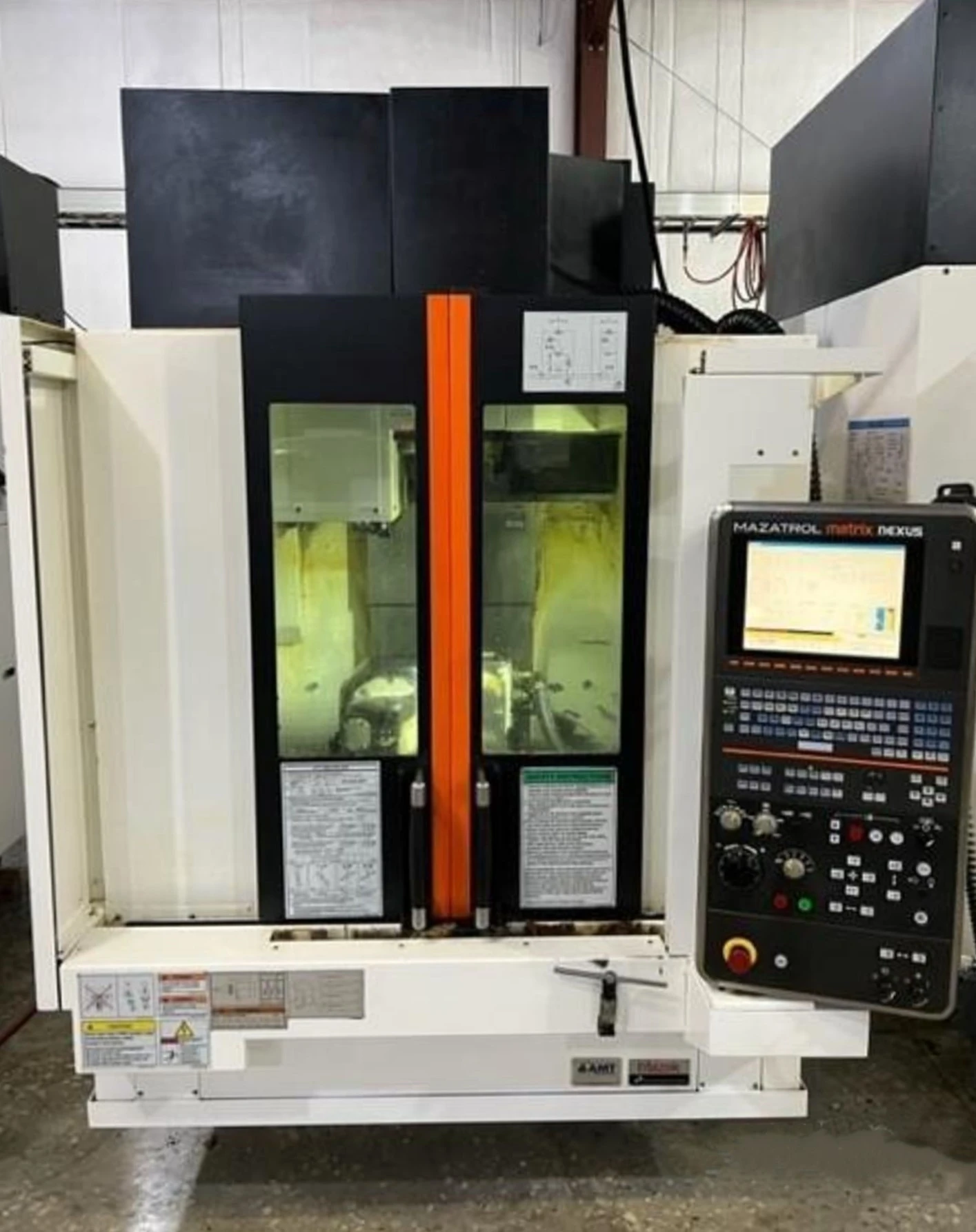

Mazatrol Matrix Nexus Control
5-Axis Rotary Table
Max Weight On Rotary Table 66 Lbs.
Dual Chip Conveyor
Hydraulic Oil Pan
208-480 VAC 3-Phase
