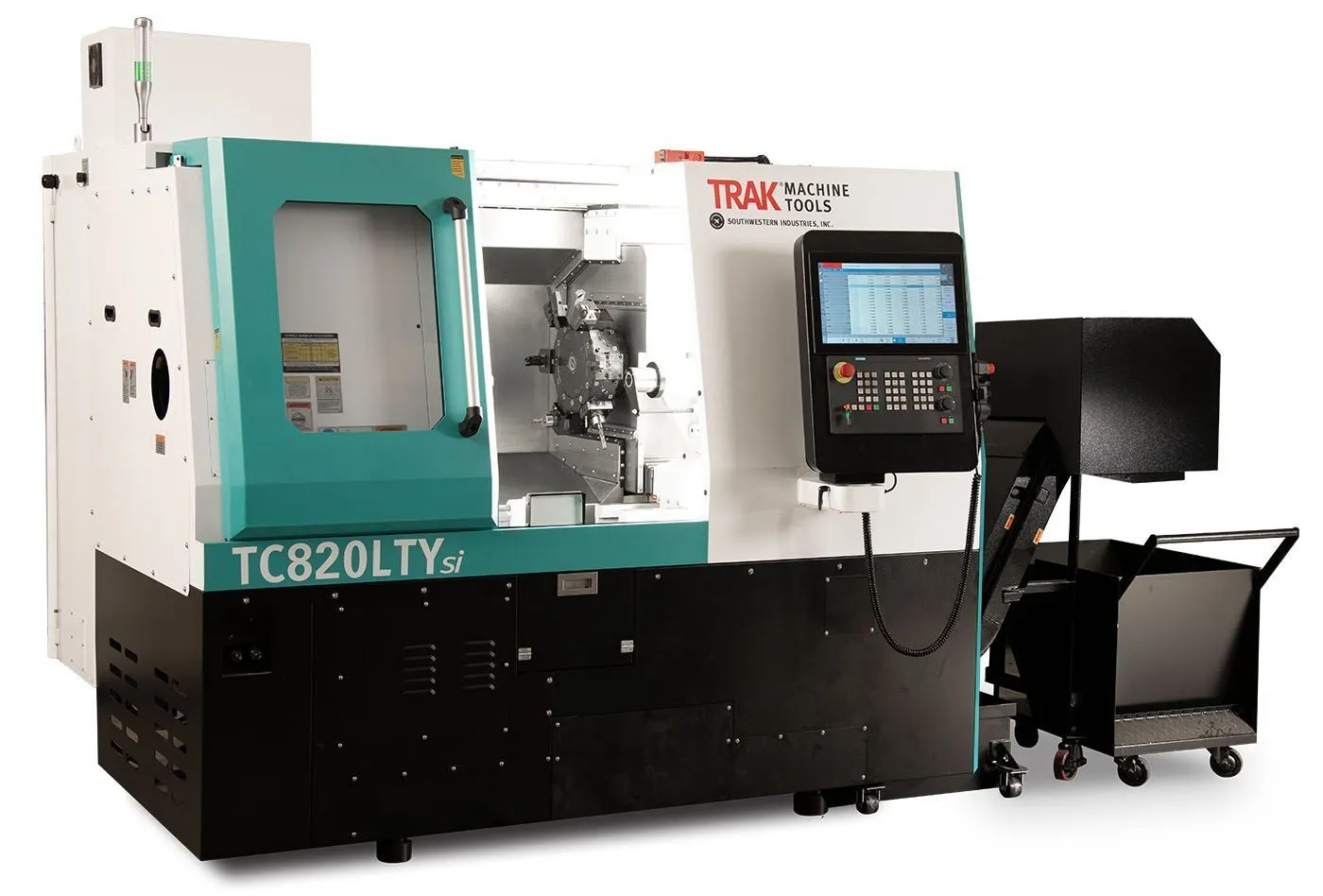

Discover the new TRAK MACHINE TOOLS TC820LTYsi multi-axis CNC lathe, featuring an 8-inch chuck, 2.56-inch bar capacity, and a 38 hp motor with 4,000 RPM. Enjoy 15.75-inch swing, 8.66-inch turning diameter, and 19.26-inch turning length with a tailstock.
PDF
http://hillaryinc.net/trakpdf/TC820si_Brochure_071024_Web_Spreads.pdf
| Control | CNC (SIEMENS SINUMERIK ONE) | CNC (SIEMENS SINUMERIK ONE) |
| CHUCK SIZE (in) | 8 | 8 |
| TURNING DIAMETER | 8.66" | 219.96 mm |
| BAR CAPACITY (in) | 2.5 | 2.5 |
| TURNING LENGTH | 19.26" | 489.2 mm |
| SWING (in) | 15.75" | 400.05 mm |
| POWER | 38 hp | 28.3 kW |
| RPM | 4,000 RPM | 4,000 RPM |
| SUB-SPINDLE | No | No |
| TAILSTOCK | Yes | Yes |
