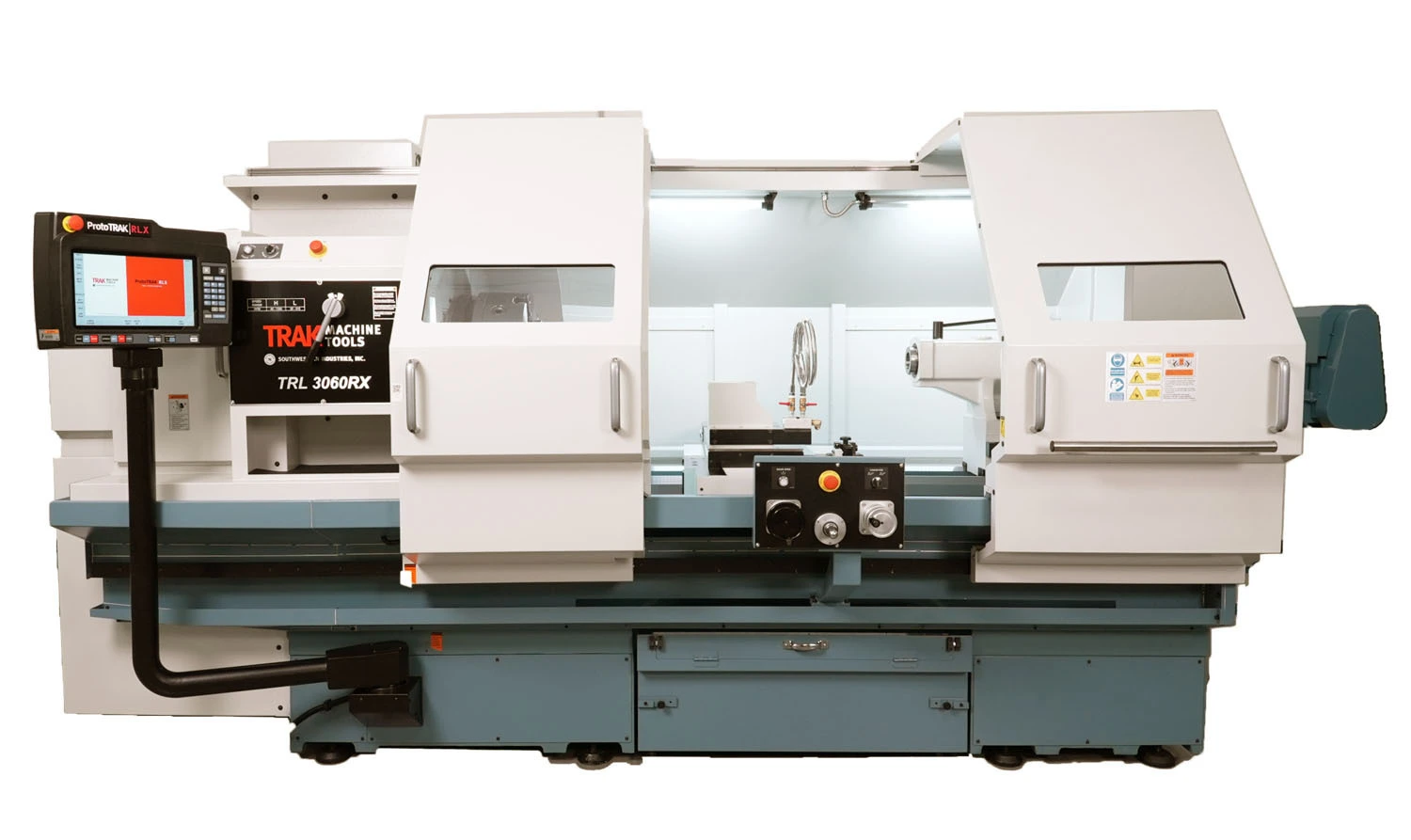

Our newest and largest lathe has the power and capacity to handle big jobs — and it comes equipped with the easy-to-use ProtoTRAK RLX CNC. The 3060 features a 30 HP spindle motor, 33″ swing, 60″ between centers and a 43.5″ swing over a 15.5″ gap.
| Control | CNC | CNC |
| Swing | 33" | 838.2 mm |
| Distance Between Centers | 60" | 1,524 mm |
| Bar Capacity | 6.3" | 160.02 mm |
| Max RPM | 1,300 RPM | 1,300 RPM |
| Power | 30 hp | 22.4 kW |
| Tailstock | Yes | Yes |
Gap bed lathe with 43.5″ swing over 15.5″ gap
60″ between centers with 60″ maximum cutting length
Generous 6.3″ spindle through hole
30 HP continuous spindle motor
Tapered roller bearings
High and low speed range settings
Standard on RX Series Lathes:
ProtoTRAK RLX CNC integrated into the machine at the factory
Manual or CNC operation
Electronic handwheels and jogstick
Brushless servo motors
Inverter-duty spindle drive
Programmable spindle speeds
Constant Surface Speed (CSS) Programming
Inch Per Revolution (IPR) Programming
Optional TRAKing® for manual control of CNC programs
Optional turret for automatic tool changes
