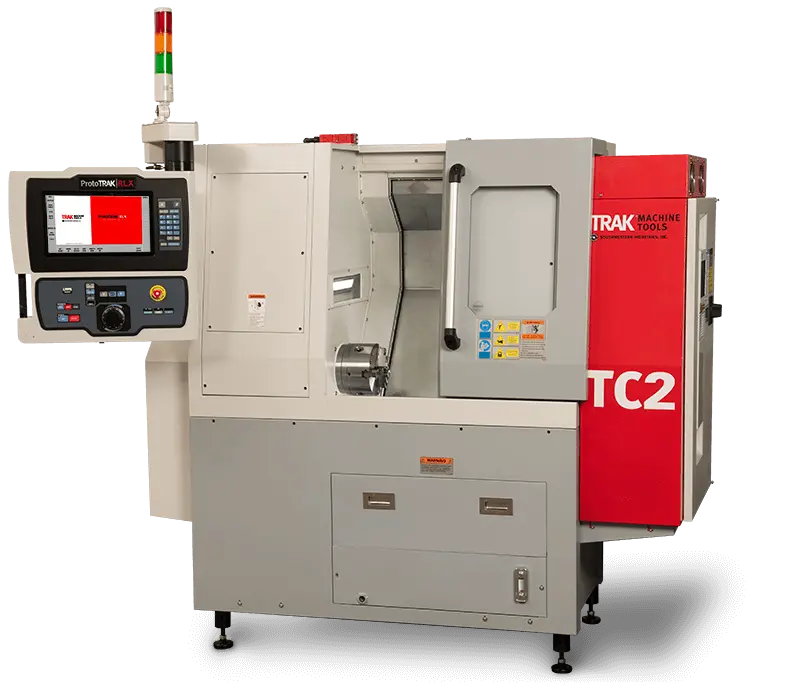

Rigid construction and generous capacities make this slant bed lathe ideal for smaller turned parts in lower volume production. Conversational Programming - Easy Setup of Simple Jobs G-Code Compatible - For Complex 3D Programs Hydraulic System Integrated into Machine Body
| Control | CNC (ProtoTRAK RLX CNC) | CNC (ProtoTRAK RLX CNC) |
| CHUCK SIZE (in) | 6 | 6 |
| MAX TURNING DIAMETER (in) | 8 | 8 |
| BAR CAPACITY (in) | 2 | 2 |
| MAX TURNING LENGTH (in) | 11 | 11 |
| SWING OVER BED (in) | 12 | 12 |
| TAILSTOCK | No | No |
| SPINDLE SPEED (rpm) | 4000 | 4000 |
| SPINDLE NOSE | A2-5 | A2-5 |
| SPINDLE MOTOR HP | 7.0 | 7.0 |
| Dimensions | 80.4″ x 36.5″ x 75.7″ | 80.4″ x 36.5″ x 75.7″ |
| Weight | 3370 | 3370 |
Hardware Features:
ProtoTRAK RLX CNC
2-Axis CNC and DRO
15.6″ LCD screen
4 USB 2.0 ports
Built-in LED status light
8-station turret
Coolant pump
Ethernet port
Software Features:
Clear, uncluttered interface
Prompted data inputs
Plain language - no codes
Soft keys change with context
Windows® operating system
Inch/mm selectable
G-Code run
Canned cycles
