HYUNDAI WIA's L5100 series edges out all it's South Korean competitors in MAX. TURNING DIAMETER, X-AXIS TRAVEL, SPINDLE TORQUE & CONSTRUCTION WEIGHT making it the clear winner. The extended max turning diameter of 29.9" and higher torque (3308 ft-lbs.) truly sets it apart from the competition.

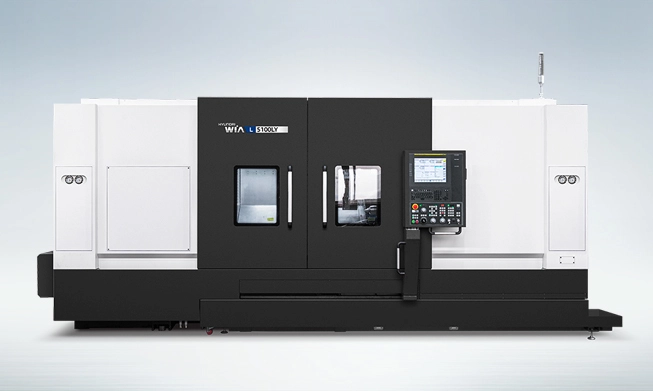

The L5100LC features a 30° slant bed design which was developed using finite element analysis (FEA) to absorb vibration and minimize thermal growth, ensures a stable platform for powerful precise cutting capabilities. Box guide ways adopted X, Y and Z axis offer improved rigidity due to the increase surface contact with the guideway, and can applicable for a variety of applications. HYUNDAI WIA’s advanced technological features to provide exceptional value.
PDF http://hillaryinc.net/hwpdf/HillaryMachinery-HyundaiWia%20L5100.pdf
Customer Reviews https://hillarymachinery.com/hyundai-wia-cnc-reviews
| Control | CNC (Fanuc) | CNC (Fanuc) |
| CHUCK SIZE (in) | 24 | 24 |
| MAX TURNING DIAMETER (in) | 29.0 | 29.0 |
| BAR CAPACITY (in) | 10.0 | 10.0 |
| MAX TURNING LENGTH (in) | 86.0 | 86.0 |
| SWING OVER BED (in) | 40.0 | 40.0 |
| TAILSTOCK | Yes | Yes |
| SPINDLE SPEED (rpm) | 1000 | 1000 |
| SPINDLE NOSE | A2-15 | A2-15 |
| SPINDLE MOTOR HP | 60 | 60 |
