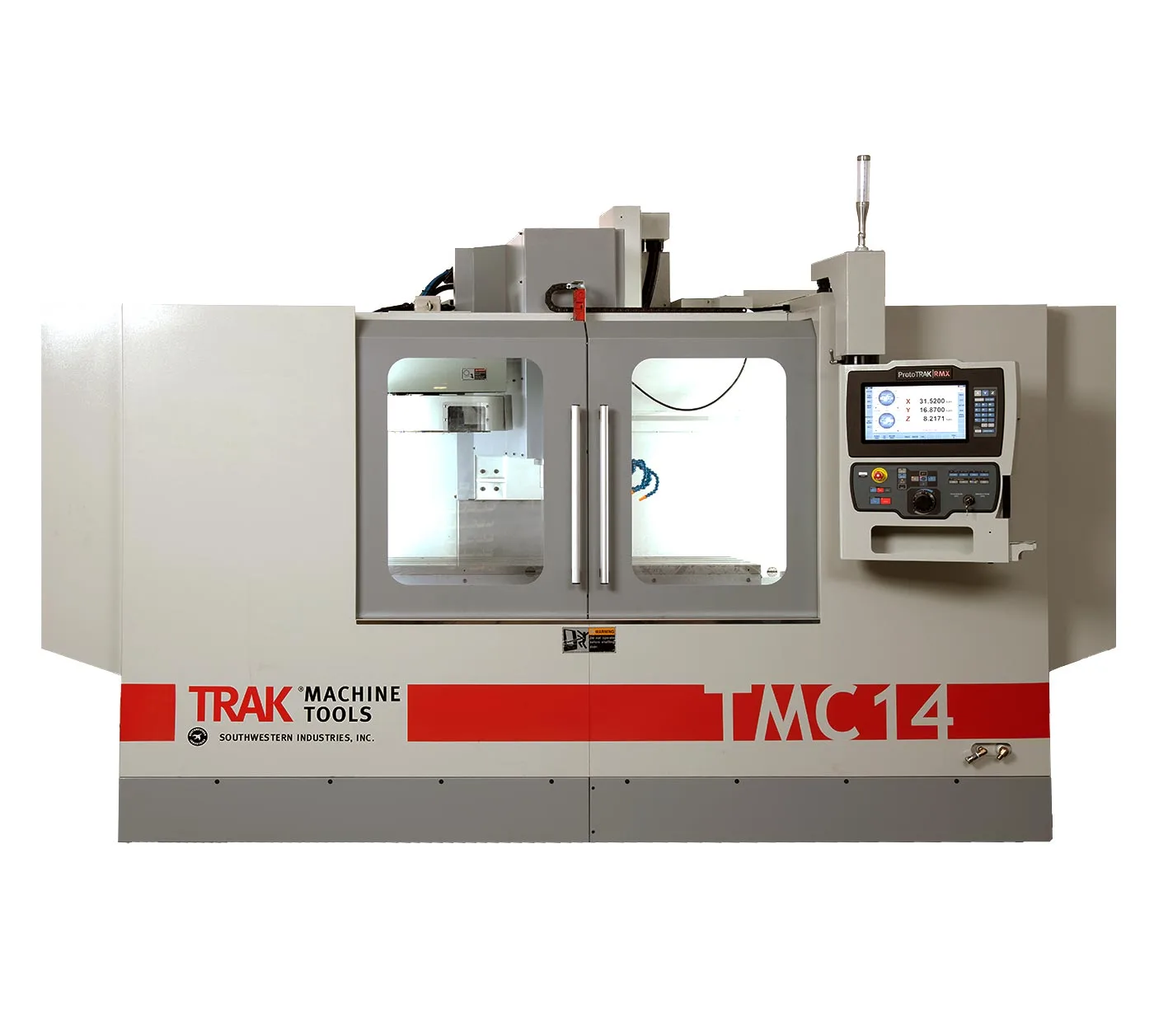

Introducing the World's First Toolroom VMC featuring the New ProtoTRAK RMX. It's a full featured 3-axis machining center with when you need to run low volume production. The amazing new ProtoTRAK® RMX CNC delivers a powerful easy-to-use interface. With the flip of a switch, you enter into Toolroom Ops™. Now your VMC works like our popular TRAK® DPM, only with an enclosure that keeps chips and coolant contained. Optional electronic handwheels allow you to crank the table and saddle for that familiar feel of working a manual machine. Transition from manual operations to 2 and 3-axis CNC.
| Control | CNC (ProtoTRAK RMX) | CNC (ProtoTRAK RMX) |
| X | 60" | 1,524 mm |
| Y | 27" | 685.8 mm |
| Z | 25" | 635 mm |
| Power | 22.5 hp | 16.8 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| # ATC | 16 | 16 |
| Taper | CAT40 | CAT40 |
| Table-W | 23.62" | 599.95 mm |
| Table-L | 62.99" | 1,599.9 mm |
| # Axis | 3 | 3 |
| Dimensions | 157.48″ x 144.76″ | 157.48″ x 144.76″ |
| Weight | 17,000 lbs | 17,000 lbs |
