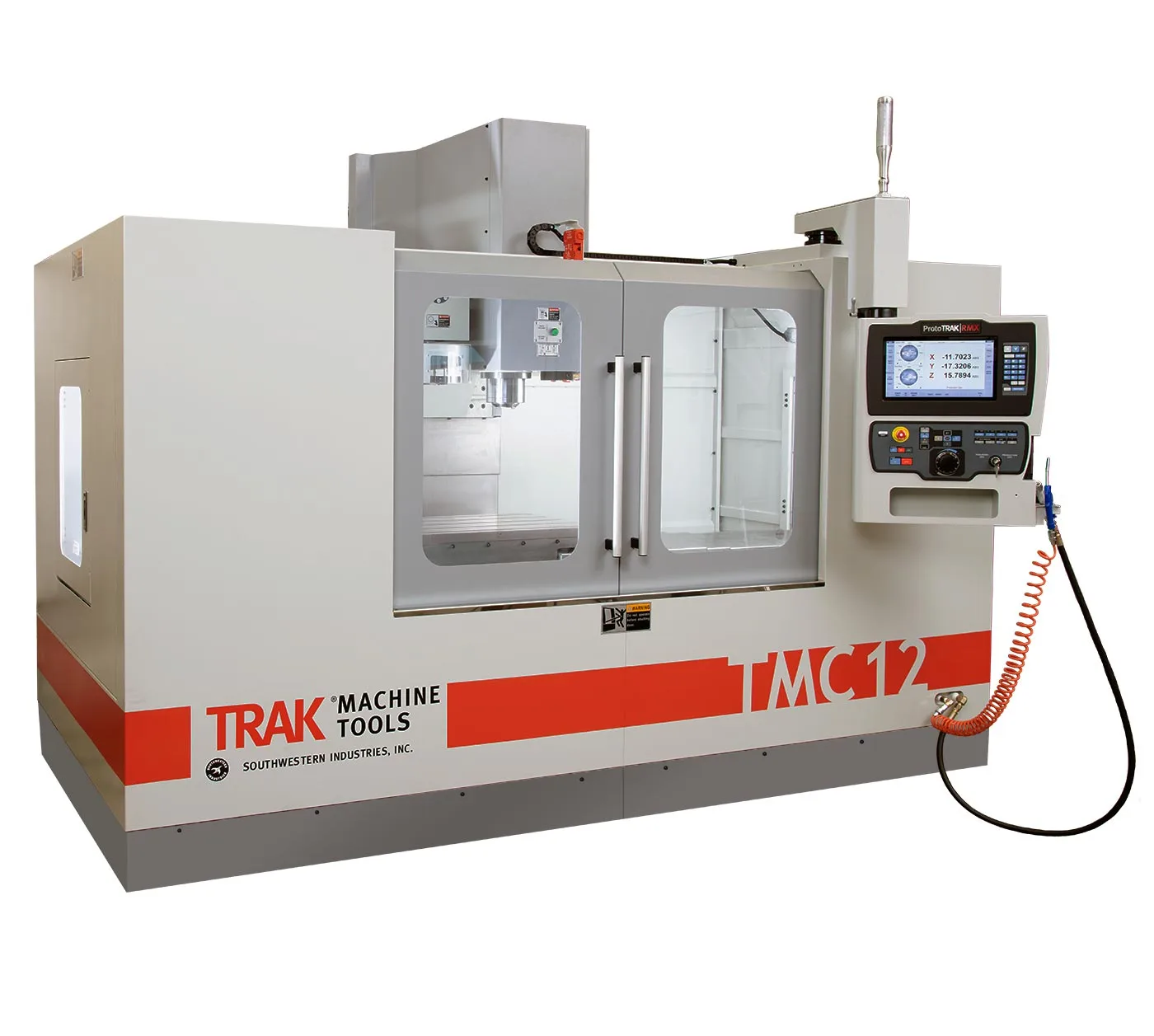

NEW TRAK MACHINE TOOLS TMC12

Texas, United States
380Listings|10Followers
Overview
Vertical Mills

Introducing the World's First Toolroom VMC featuring the New ProtoTRAK RMX. It's a full featured 3-axis machining center when you need to run low volume production. The amazing new ProtoTRAK® RMX CNC delivers a powerful easy-to-use interface. With the flip of a switch, you enter into Toolroom Ops™. Now your VMC works like our popular TRAK® DPM, only with an enclosure that keeps chips and coolant contained. Optional electronic handwheels allow you to crank the table and saddle for that familiar feel of working a manual machine. Transition from manual operations to 2 and 3-axis CNC.

PDF http://hillaryinc.net/trakpdf/traktmc.pdf

Specs
Control
CNC (ProtoTRAK RMX)
CNC (ProtoTRAK RMX)
X
50"
1,270 mm
Y
27"
685.8 mm
Z
25"
635 mm
Power
22.5 hp
16.8 kW
RPM
8,000 RPM
8,000 RPM
# ATC
16
16
Taper
CAT40
CAT40
Table-W
23.62"
599.95 mm
Table-L
51.18"
1,300 mm
# Axis
3
3
Dimensions
133.86″ x 144.76″
133.86″ x 144.76″
Weight
14,300 lbs
14,300 lbs
