NEW YAMA SEIKI CNC MACHINE TOOLS HD-3012
Overview

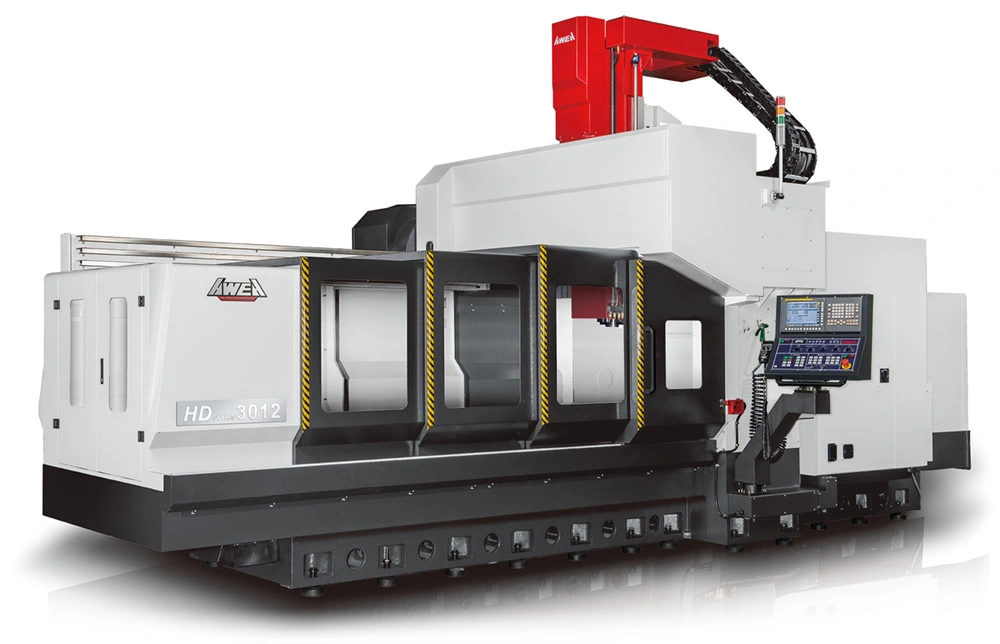

Super Rigid Bridge Type Machining Center built on a rigid structure combined with powerful spindle output and well featured key components to achieve outstanding heavy cutting capability.
Gear spindle design provides torque output up to 642 Nm; Enforced structure design of bridge and base accomplishes stronger structural rigidity with up to 20% enhancement; X / Y axes adopts high rigidity and high precision roller type linear guide ways. Z-axis uses high rigidity box ways which are strictly thoroughly heat treated and precisely grinded, best suits for heavy-duty cutting. Exterior design of full enclosed splash guard with extension operation doors achieves safety protection and wide opening for ease of loading parts.
Specs
CAPACITY
X-axis travel mm ( inch ) 3,000 ( 118.11" )
Y-axis travel mm ( inch ) 1,200 ( 47.24" )
Z-axis travel mm ( inch ) 760 ( 29.92" )
Distance from spindle nose to table top mm ( inch ) 200 ~ 960 ( 7.87" ~ 37.79" )
Distance between columns mm ( inch ) 1,300 ( 51.18" )
WORKING TABLE
Table size ( X direction ) mm ( inch ) 3,000 ( 118.11" )
Table size ( Y direction ) mm ( inch ) 1,100 ( 43.30" )
Table load capacity kg ( lb ) 5,500 ( 12,120 )
SPINDLE
Spindle motor ( cont. / 30 min. ) kW ( HP ) 22 / 26 ( 30 / 35 )
Spindle speed rpm 6,000
Spindle taper CAT50
FEED RATE
X-axis rapid feed rate m/min ( IPM ) 20 ( 788 )
Y-axis rapid feed rate m/min ( IPM ) 24 ( 945 )
Z-axis rapid feed rate m/min ( IPM ) 15 ( 590 )
Cutting feed rate m/min ( IPM ) 10 ( 394 )
TOOL MAGAZINE
Tool magazine capacity T 32 ( Opt. 40 )
Max. tool diameter / adj. pocket empty mm ( inch ) Ø 125 / 229 ( Ø 4.92" / 9.01" )
Max. tool length ( from gauge line ) mm ( inch ) 400 ( 15.74" )
Max. tool weight kg ( lb ) 15 ( 33 )
ACCURACY
Positioning accuracy ( JIS B 6338 ) mm ( inch ) P ≤ 0.025 ( 0.001" ) / Full travel
Positioning accuracy ( VDI 3441 ) mm ( inch ) P ≤ 0.02 ( 0.0008" ) / Full travel
Repeatability ( JIS B 6338 ) mm ( inch ) ± 0.003 ( 0.00012" )
Repeatability ( VDI 3441 ) mm ( inch ) Ps ≤ 0.02 ( 0.0008" ) / Full travel
GENERAL
Power requirement AC 220 ± 10% 3 Phase , 60 / 50 Hz / 50 kVA
Pneumatic pressure requirement kg / cm² ( PSI ) 5 ~ 8 ( 72 ~ 115 )
Hydraulic unit tank capacity ( pump ) liter ( HP ) 48 ( 3 )
Lubrication oil tank capacity liter 4.5
Coolant tank capacity ( pump ) liter ( HP ) 400 ( 1 )
Machine weight kg 22,500 ( 49,600 lb )
Equipped With
Spindle cooling system
Centralized automatic lubricating system
Extension door
Coolant system with pump and tank
Powerful twin screw type chip conveyor
Caterpillar type chip conveyor and bucket
Foundation bolt kit
Alarm light
Air / Water gum
Auto. power off system
