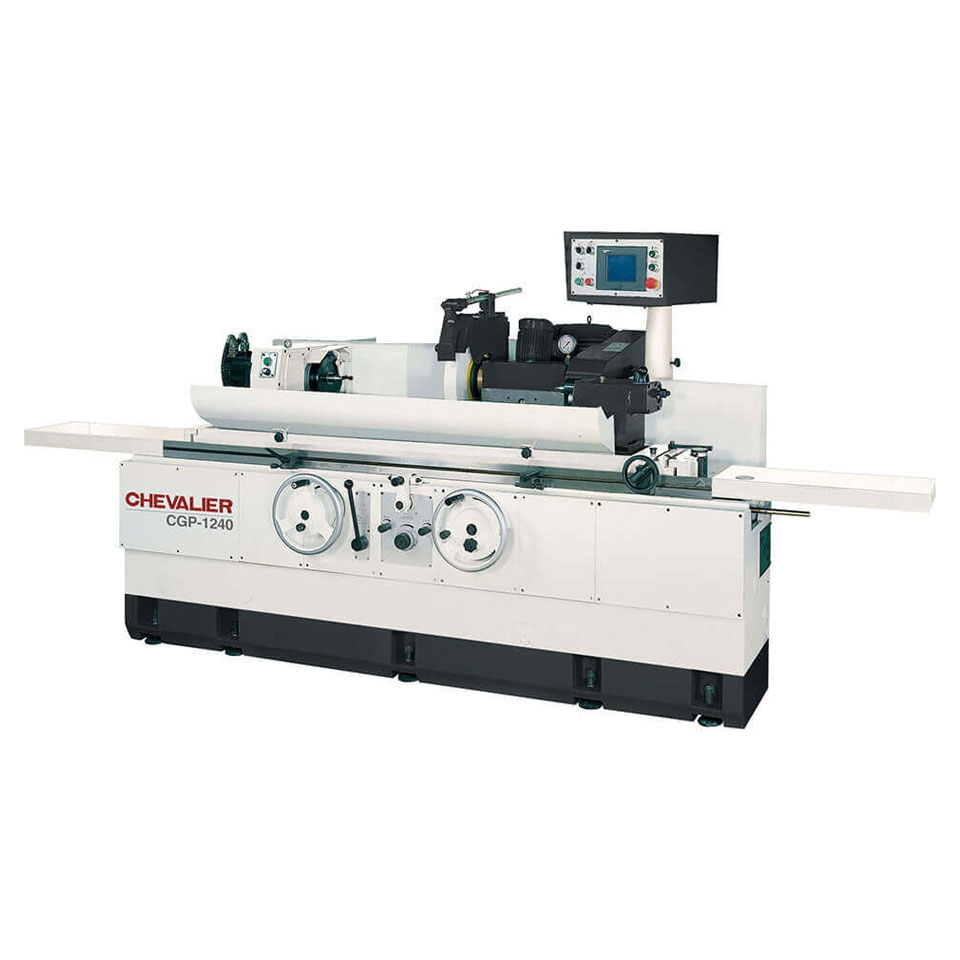

Friction-free hydrostatic spindle bearing for precision grinding. Precision ball screw driven by AC digital servo motor. Mitsubishi PLC control with touch screen operation. High-grade Nichrome steel SNCM-220 wheel head
Table travels on one V, one flat guideway. Machine castings are fully ribbed and are made of dense, high-grade Meehanite cast iron. Tailstock center is capable of absorbing thermal expansion of work piece. Rough grinding, fine grinding and spark-out in one automated cycle. Wheel head retracts to park unload point after grinding cycle is completed
PDF
http://hillaryinc.net/chevalierpdf/chevaliercylindrical.pdf
| Control | CNC (PLC) | CNC (PLC) |
| Swing | 16.5" | 419.1 mm |
| Centers | 39.3" | 998.22 mm |
| Grinding Wheel Dia. | 14" | 355.6 mm |
| Grinding Wheel Width | 2" | 50.8 mm |
| Max Weight Between Centers | 330 lb | 149.7 kg |
| Power | 5 hp | 3.7 kW |
| Workhead Power | 1 hp | 0.7 kW |
