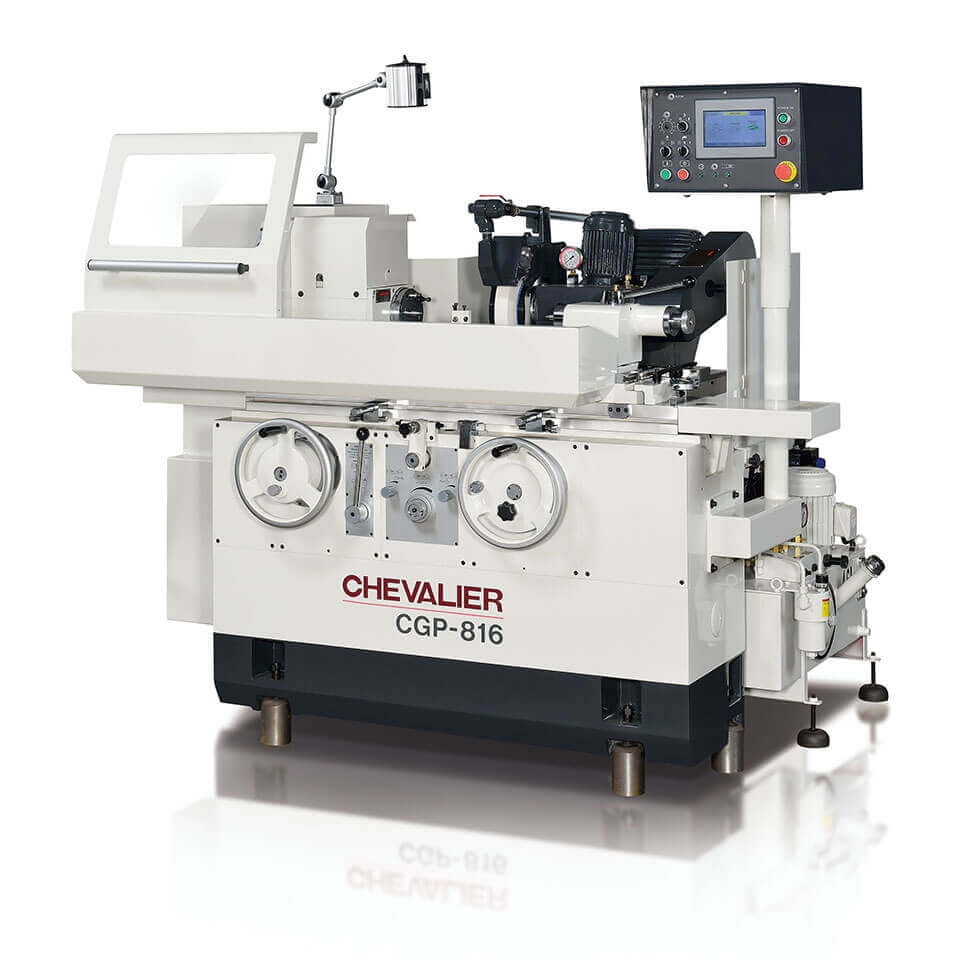

Friction-free hydrostatic spindle bearing for precision grinding. Precision ball screw driven by AC digital servo motor. Mitsubishi PLC control with touch screen operation. High-grade Nichrome steel SNCM-220 wheel head
Table travels on one V, one flat guideway. Machine castings are fully ribbed and are made of dense, high-grade Meehanite cast iron. Tailstock center is capable of absorbing thermal expansion of work piece. Rough grinding, fine grinding and spark-out in one automated cycle. Wheel head retracts to park unload point after grinding cycle is completed
PDF
http://hillaryinc.net/chevalierpdf/chevaliercylindrical.pdf
| Control | CNC (PLC) | CNC (PLC) |
| Swing | 7.9" | 200.66 mm |
| Centers | 15.7" | 398.78 mm |
| Grinding Wheel Dia. | 12" | 304.8 mm |
| Grinding Wheel Width | 1.5" | 38.1 mm |
| Max Weight Between Centers | 132 lb | 59.9 kg |
| Power | 3 hp | 2.2 kW |
| Workhead Power | 1 hp | 0.7 kW |
