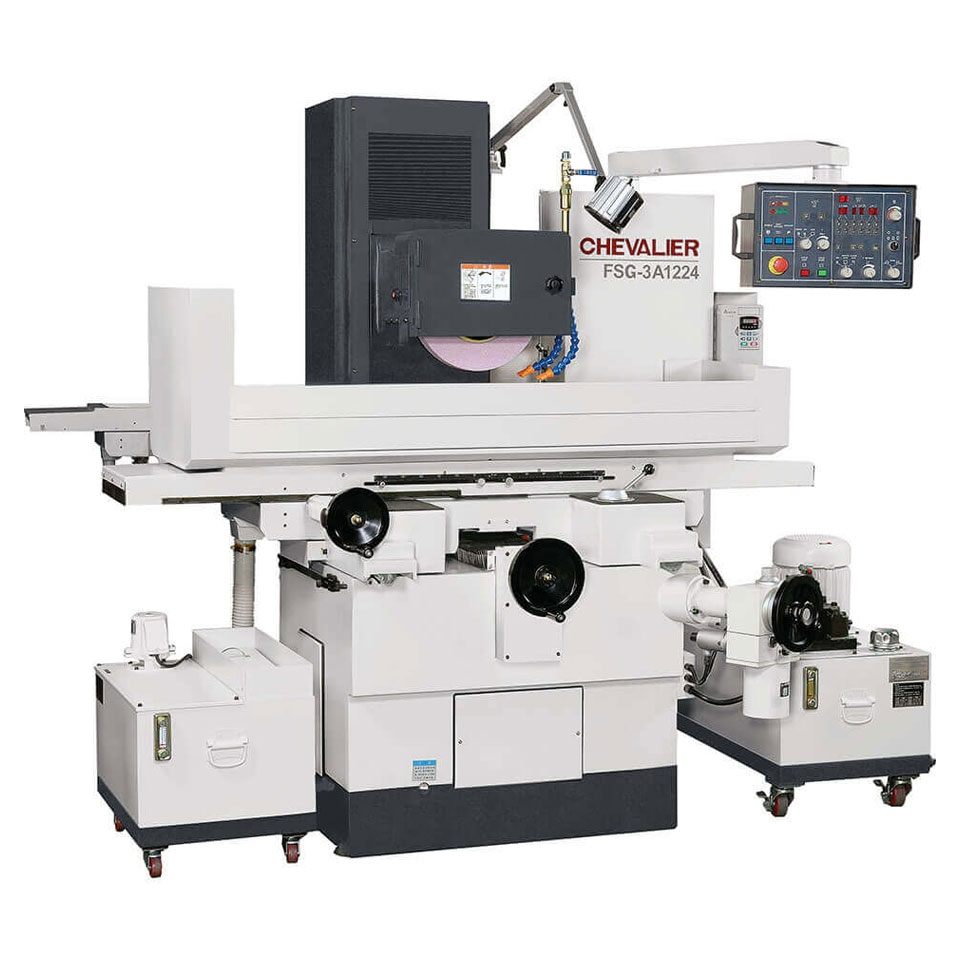

High precision cartridge type spindle equipped with 4 pieces of class 7 angular contact ball bearings, suitable for heavy duty grinding. 3-Axis fully automatic with surface and plunge grinding cycles. Separate hydraulic system prevents vibration & reduces heat transference. Saddle travels on Turcite-B coated and hand scraped double V guideways. Meehanite® cast iron Wheel head rises up automatically and table parks at left or right side after cycle is completed
PDF
http://hillaryinc.net/chevalierpdf/chevalier-FSG-3A1224.pdf
| Table-L | 24" | 609.6 mm |
| Table-W | 12" | 304.8 mm |
| Grinding Wheel Dia. | 14" | 355.6 mm |
| Grinding Wheel Width | 1.97" | 50.038 mm |
| Horizontal/Vertical | Horizontal | Horizontal |
| Operation | Automatic | Automatic |
| Power | 5 hp | 3.7 kW |
