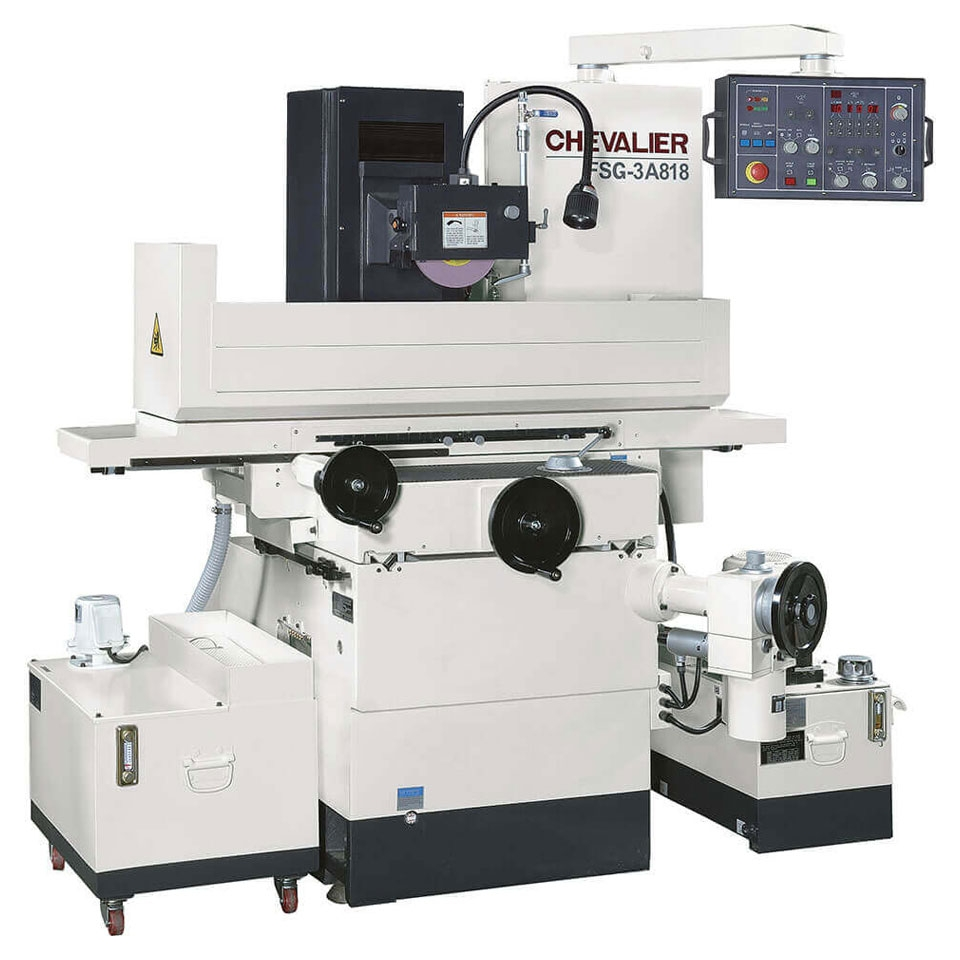

High precision cartridge type spindle equipped with 4 pieces of class 7 angular contact ball bearings, suitable for heavy duty grinding. 3-Axis fully automatic with surface and plunge grinding cycles. Separate hydraulic system prevents vibration & reduces heat transference. Saddle travels on Turcite-B coated and hand scraped double V guideways. Meehanite® cast iron Wheel head rises up automatically and table parks at left or right side after cycle is completed
PDF
http://hillaryinc.net/chevalierpdf/chevalier-FSG-3A818.pdf
| Table-L | 18" | 457.2 mm |
| Table-W | 8" | 203.2 mm |
| Grinding Wheel Dia. | 8" | 203.2 mm |
| Grinding Wheel Width | 0.5" | 12.7 mm |
| Horizontal/Vertical | Horizontal | Horizontal |
| Operation | Automatic | Automatic |
| Power | 2 hp | 1.5 kW |
