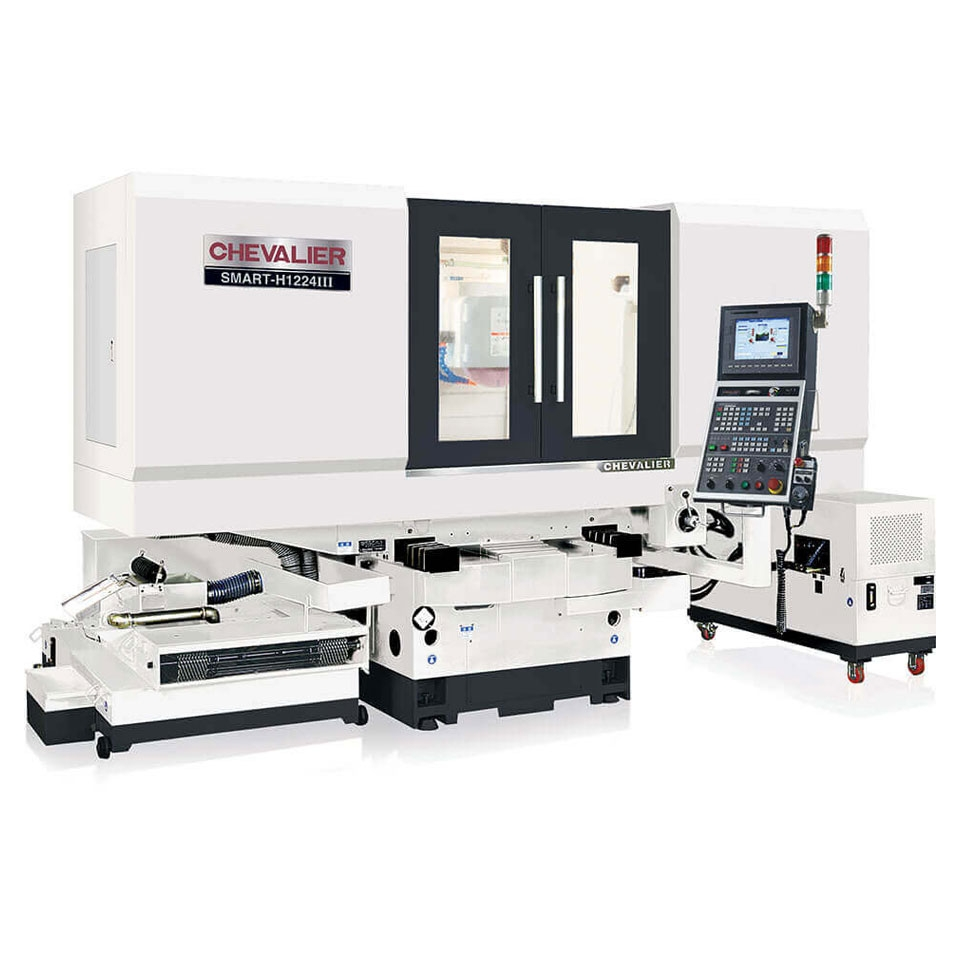

High precision cartridge type spindle equipped with four pieces of Class 7 (P4) angular contact ball bearings suitable for heavy duty grinding. Hand-scraped and Turcite-B Coated cross-feed guideways between base and saddle have double "V" design, providing support for full table travel and preventing table overhangs. Automatic dressing with compensation during grinding cycle. Hand-scraped and Turcite-B coated longitudinal ways between table and saddle are double "V" design, ideal for delicate side grinding operations. Data transfer is simplified by using a USB data port or Ethernet connection.
| Control | CNC (SMART iControl) | CNC (SMART iControl) |
| Table-L | 24" | 609.6 mm |
| Table-W | 12" | 304.8 mm |
| Grinding Wheel Dia. | 14" | 355.6 mm |
| Grinding Wheel Width | 2" | 50.8 mm |
| Horizontal/Vertical | Horizontal | Horizontal |
| Operation | CNC | CNC |
| Power | 15 hp | 11.2 kW |
