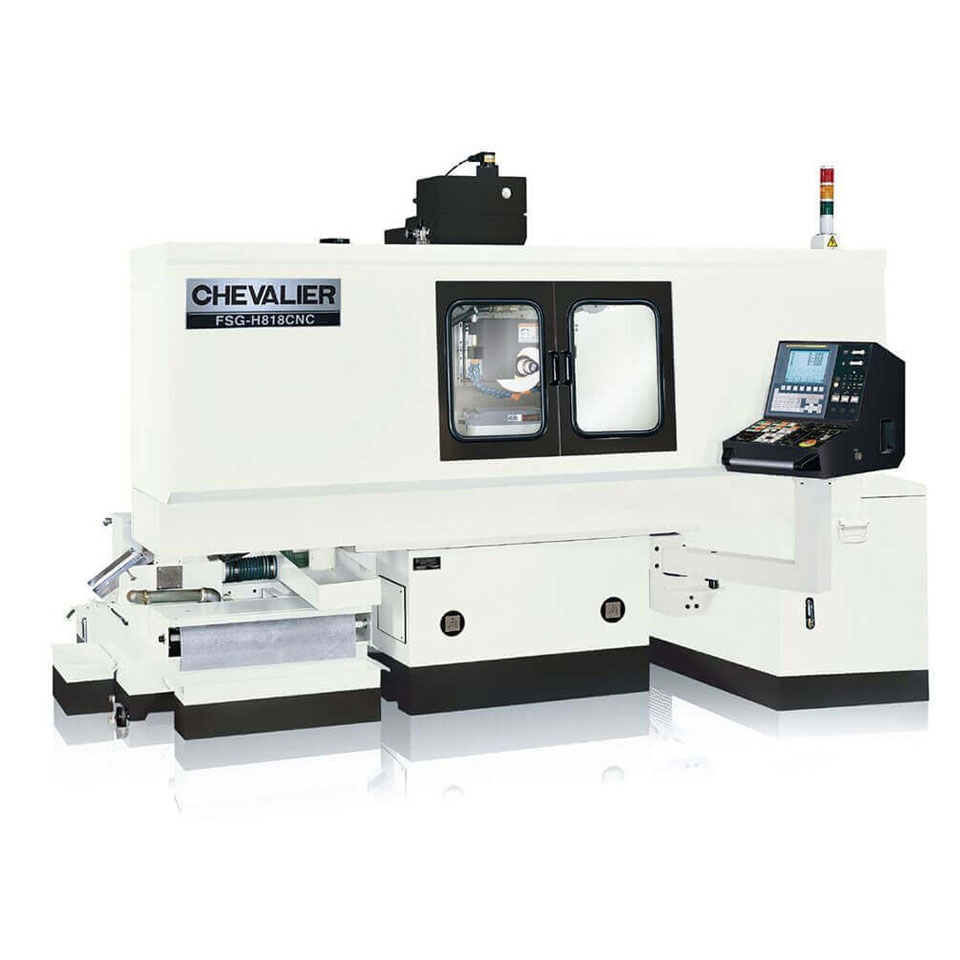

Precision ball screws on cross-feed, elevating and table. All 3 axes are AC servo motor driven which is suitable for creep-feed grinding. FANUC OiMF 3 axis CNC control with 8.4” LCD Mono Screen; 20HP FANUC β12/7000i spindle motor directly connected to spindle with flexible coupling; Capable of profile (contour) grinding, form grinding and step grinding with automatic wheel dressing and compensation; Column traverses on precision roller bearings on hardened and ground guideways. Run-hour display, PMC-L Ladder Search, Instruction Display and G-Code Menu Display are all included as standard control features.
| Control | CNC (Fanuc) | CNC (Fanuc) |
| Table-L | 18" | 457.2 mm |
| Table-W | 8" | 203.2 mm |
| Grinding Wheel Dia. | 12" | 304.8 mm |
| Grinding Wheel Width | 1.25" | 31.75 mm |
| Horizontal/Vertical | Horizontal | Horizontal |
| Operation | CNC | CNC |
| Power | 20 hp | 14.9 kW |
