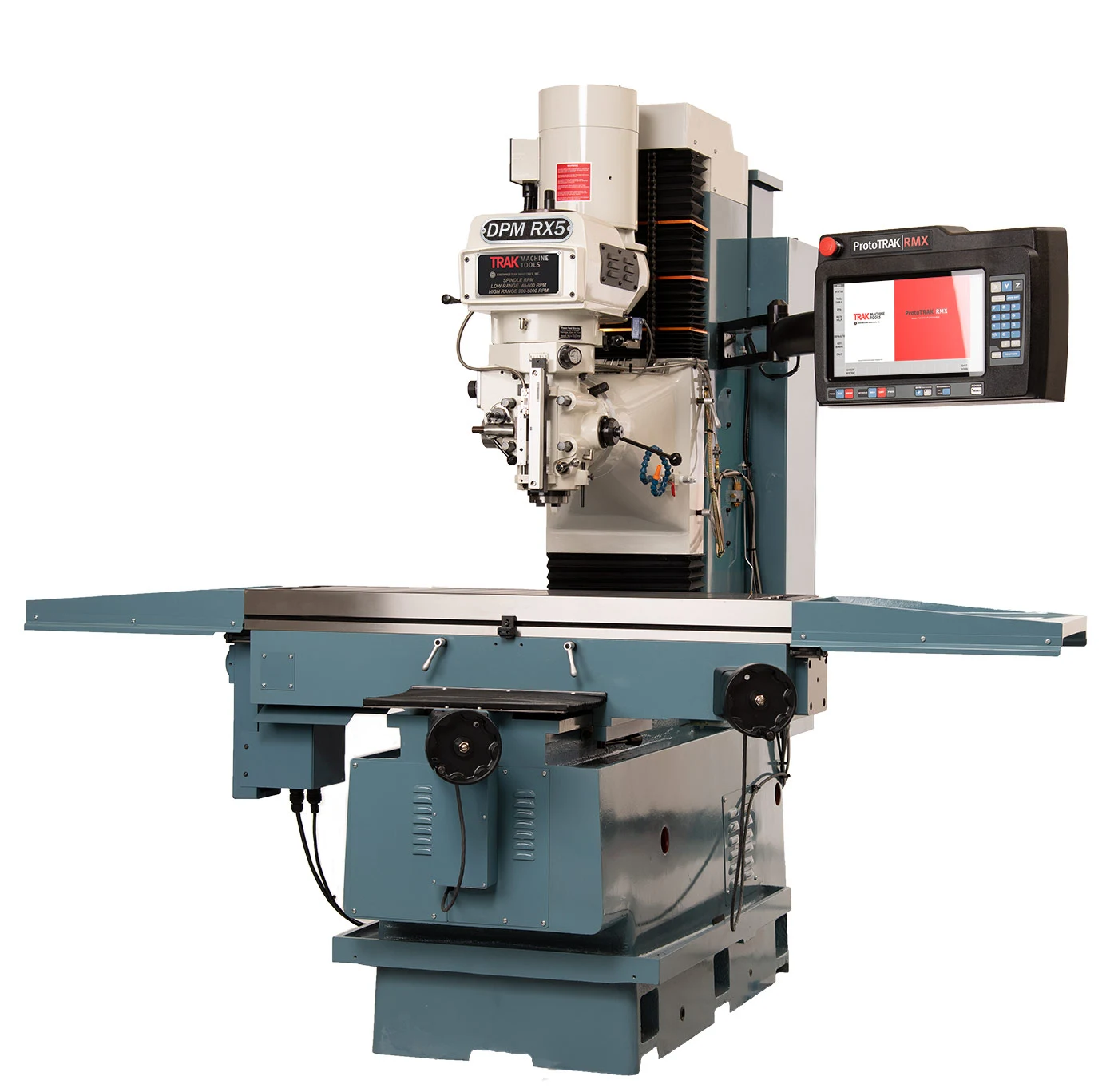

The Best Machines Ever Made for Toolroom and Short Run Production.
Manual, 2 or 3 axis, Programmable spindle speeds, Real handwheels, Touch Screen Conversational Control
| Control | CNC (RMX CNC) | CNC (RMX CNC) |
| Taper | CAT40 | CAT40 |
| Travel-Long | 40" | 1,016 mm |
| Travel-Cross | 20" | 508 mm |
| Table-L | 50" | 1,270 mm |
| Table-W | 12" | 304.8 mm |
| Power | 5 hp | 3.7 kW |
| RPM | 5,000 RPM | 5,000 RPM |
Standard Features:
ProtoTRAK RMX CNC integrated into the machine at the factory
Solid ram moves along the column providing mass for heavy cuts
Generous Z-axis CNC travel
Strong and rigid
Efficient for any job: manual, 2-axis CNC or 3-axis CNC
Standard electronic head for programmable spindle speeds and tapping
Precision ground ballscrews installed in the table, saddle and column
Manual quill with integrated quill and ram encoders
Wide way surfaces are hardened and ground, slideways are Turcite® coated
Real handwheels so you can work manually
