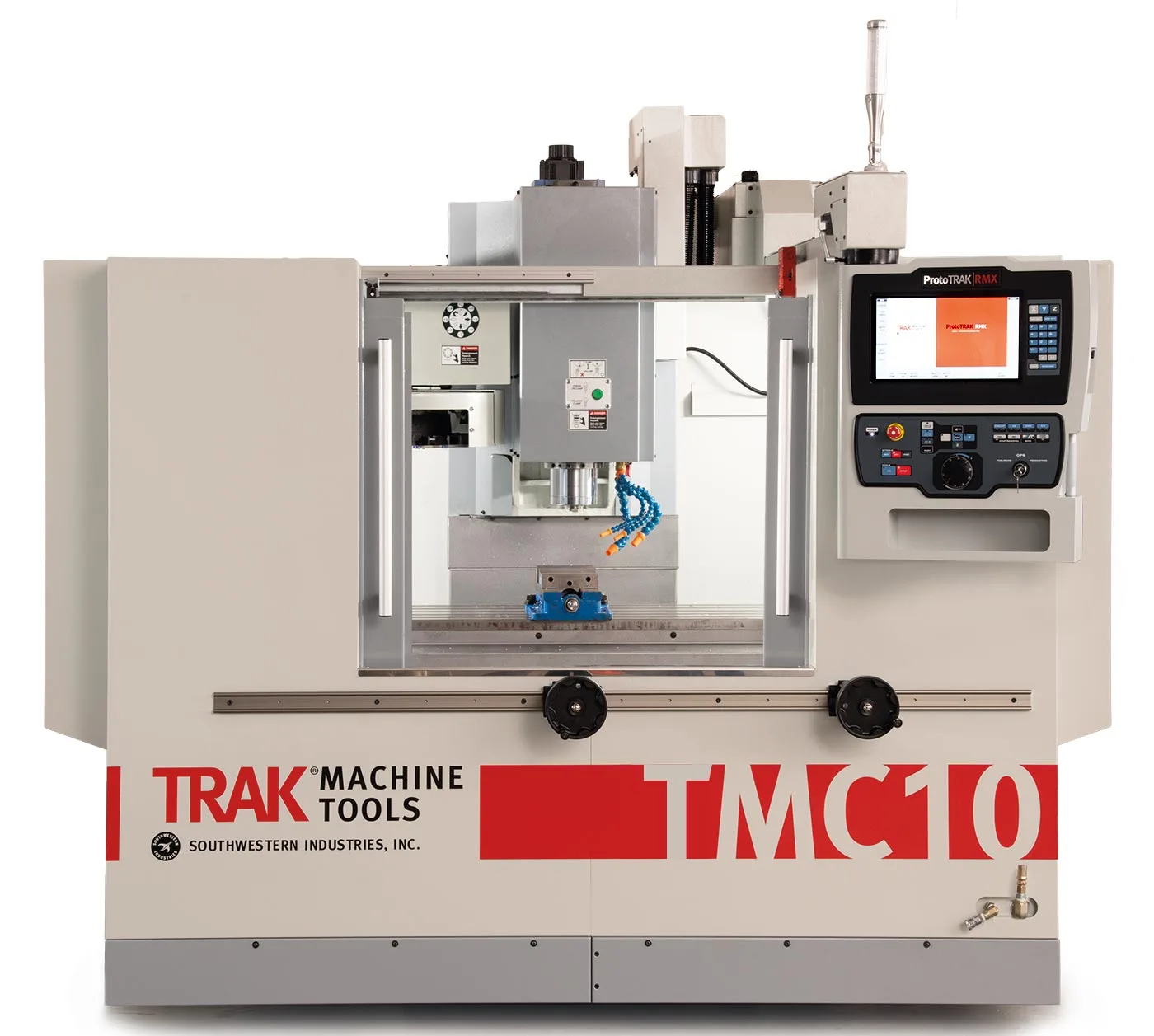

Introducing the World's First Toolroom VMC featuring the New ProtoTRAK RMX. It's a full featured 3-axis machining center with DUAL MANUAL/CNC CONTROL when you need to run low volume production. The amazing new ProtoTRAK® RMX CNC delivers a powerful easy-to-use interface. With the flip of a switch, you enter into Toolroom Ops™. Now your VMC works like our popular TRAK® DPM, only with an enclosure that keeps chips and coolant contained. Optional electronic handwheels allow you to crank the table and saddle for that familiar feel of working a manual machine. Transition from manual operations to 2 and 3-axis CNC.
| Control | CNC (ProtoTRAK RMX) | CNC (ProtoTRAK RMX) |
| X | 40.75" | 1,035 mm |
| Y | 20" | 508 mm |
| Z | 20" | 508 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| # ATC | 16 | 16 |
| Taper | CAT40 | CAT40 |
| Table-W | 19.69" | 500.13 mm |
| Table-L | 44.09" | 1,119.9 mm |
| # Axis | 3 | 3 |
| Dimensions | 111″ x 135″ | 111″ x 135″ |
| Weight | 10,250 lbs | 10,250 lbs |
