New | Build-to-Order

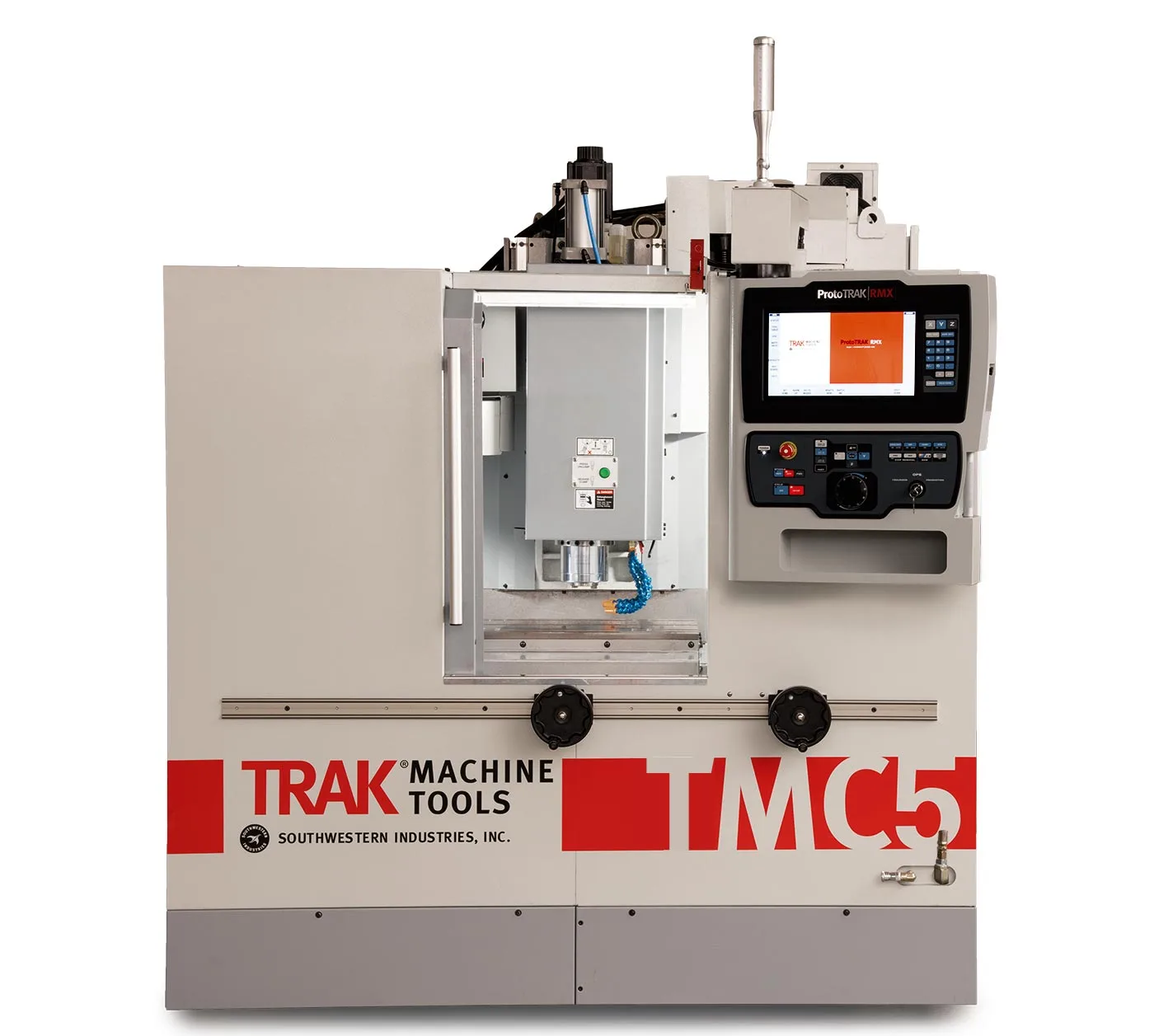

NEW TRAK MACHINE TOOLS TMC5

Texas, United States
380Listings|10Followers
Overview
Vertical Mills

Introducing the World's First Toolroom VMC featuring the New ProtoTRAK RMX. It's a full featured 3-axis machining center with DUAL MANUAL/CNC CONTROL when you need to run low volume production. The amazing new ProtoTRAK® RMX CNC delivers a powerful easy-to-use interface. With the flip of a switch, you enter into Toolroom Ops™. Now your VMC works like our popular TRAK® DPM, only with an enclosure that keeps chips and coolant contained. Optional electronic handwheels allow you to crank the table and saddle for that familiar feel of working a manual machine. Transition from manual operations to 2 and 3-axis CNC.

PDF http://hillaryinc.net/trakpdf/traktmc.pdf

Specs
Control
CNC (ProtoTRAK RMX)
CNC (ProtoTRAK RMX)
X
20"
508 mm
Y
16"
406.4 mm
Z
20"
508 mm
Power
15 hp
11.2 kW
RPM
8,000 RPM
8,000 RPM
# ATC
16
16
Taper
CAT40
CAT40
Table-W
15.75"
400.05 mm
Table-L
27.56"
700.02 mm
# Axis
3
3
Dimensions
85″ x 129.25″
85″ x 129.25″
Weight
7,600 lbs
7,600 lbs
