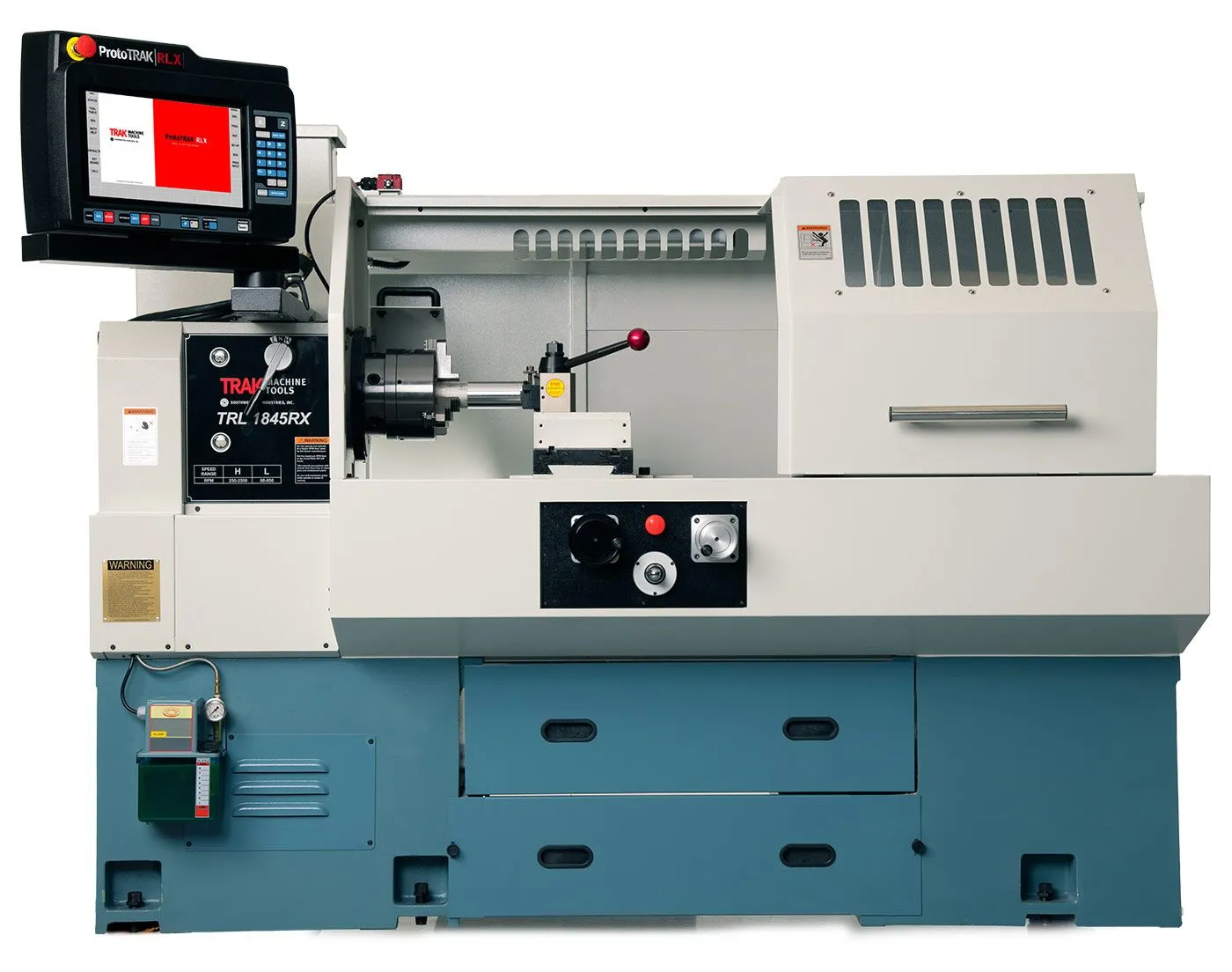

NEW TRAK Machine Tools TRAK 1845RX

Texas, United States
363Listings|15Followers
Overview
CNC Lathes

Discover the TRAK 1845RX showroom demo toolroom lathe. With a robust 18" swing and 45" center distance, this CNC lathe features integrated ProtoTRAK RLX, electronic handwheels, and a 10 hp motor. Ideal for precision and adaptability in machining.

PDF http://hillaryinc.net/trakpdf/traklathes.pdf

Specs
Control
CNC (ProtoTRAK RLX CNC)
CNC (ProtoTRAK RLX CNC)
Swing
18"
457.2 mm
Distance Between Centers
45"
1,143 mm
Bar Capacity
2.36"
59.944 mm
Max RPM
2,500 RPM
2,500 RPM
Power
10 hp
7.5 kW
Tailstock
Yes
Yes
Equipped With

Standard Features:
ProtoTRAK RLX CNC integrated into the machine at the factory
Manual or CNC operation
Electronic handwheels and jogstick
Brushless servo motors
Inverter-duty spindle drive
Programmable spindle speeds
Constant Surface Speed (CSS) Programming
Inch Per Revolution (IPR) Programming
Optional TRAKing® for manual control of CNC programs
Optional turret for automatic tool changes
