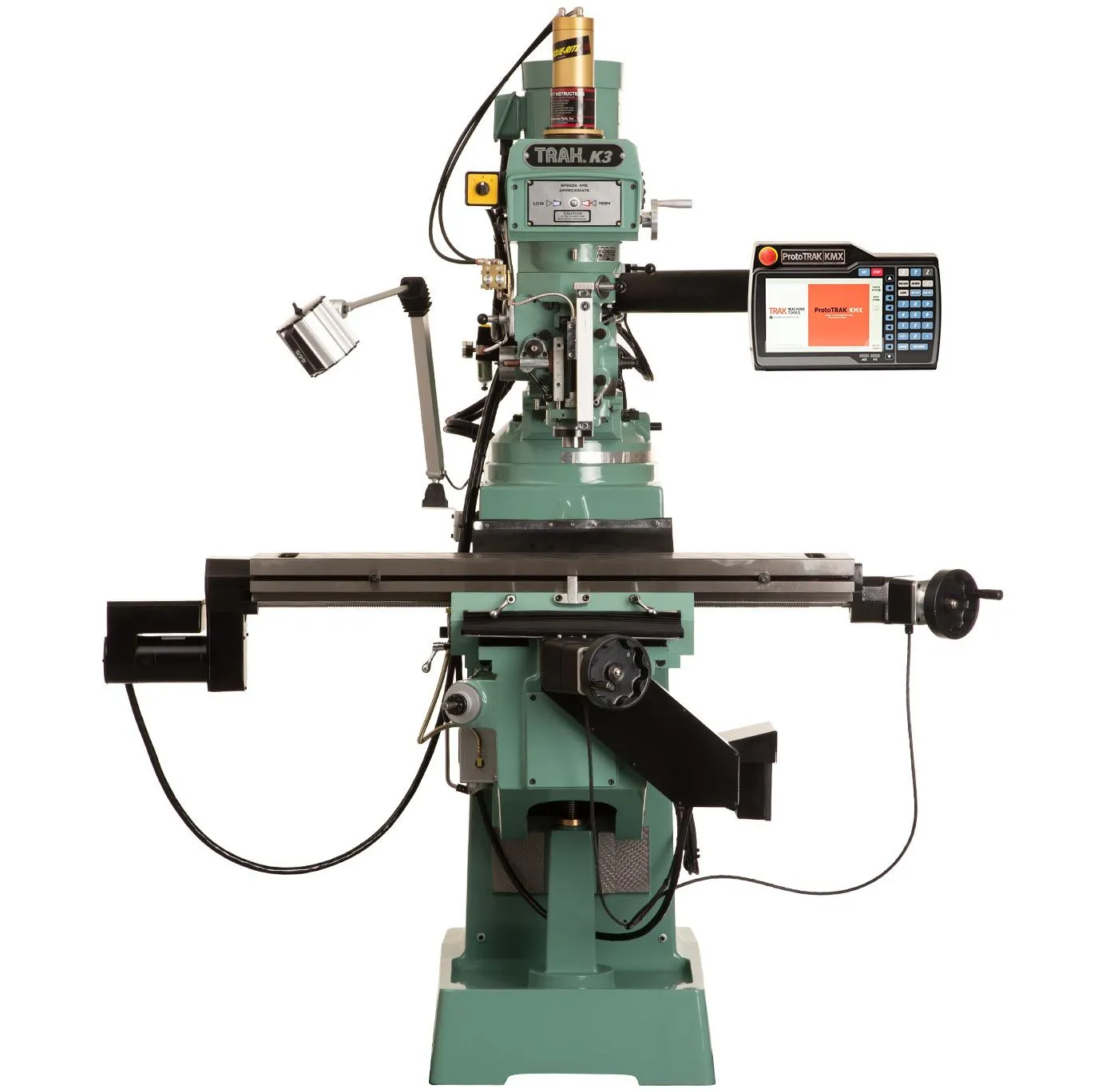

NEW TRAK MACHINE TOOLS TRAK K3

Texas, United States
380Listings|10Followers
Overview
Vertical Mills

The best built, best supported CNC knee-type milling machine you can buy.

PDF http://hillaryinc.net/trakpdf/trakkneemill.pdf

Specs
Taper
R8
R8
Travel-Long
32"
812.8 mm
Travel-Cross
16"
406.4 mm
Table-L
50"
1,270 mm
Table-W
10"
254 mm
Power
3 hp
2.2 kW
RPM
4,200 RPM
4,200 RPM
Equipped With

Standard Features:
ProtoTRAK® CNC integrated at the factory
Precision 7207 P4 spindle bearings
Glass scale for quill Z readout
Precision ground ballscrews installed in the table and saddle
Chrome ground quill
Wide way surfaces are hardened and ground
Slideways are Turcite® coated
Real handwheels so you can work manually
Meehanite® castings
