24000 RPM, 3 Head
| Table-W | 72" | 1,828.8 mm |
| Table-L | 216" | 5,486.4 mm |
| Power | 3.5 hp | 2.6 kW |
| RPM | 24,000 RPM | 24,000 RPM |
| # Axis | 3 | 3 |
| X | 72" | 1,828.8 mm |
| Y | 216" | 5,486.4 mm |
| Z | 6" | 152.4 mm |

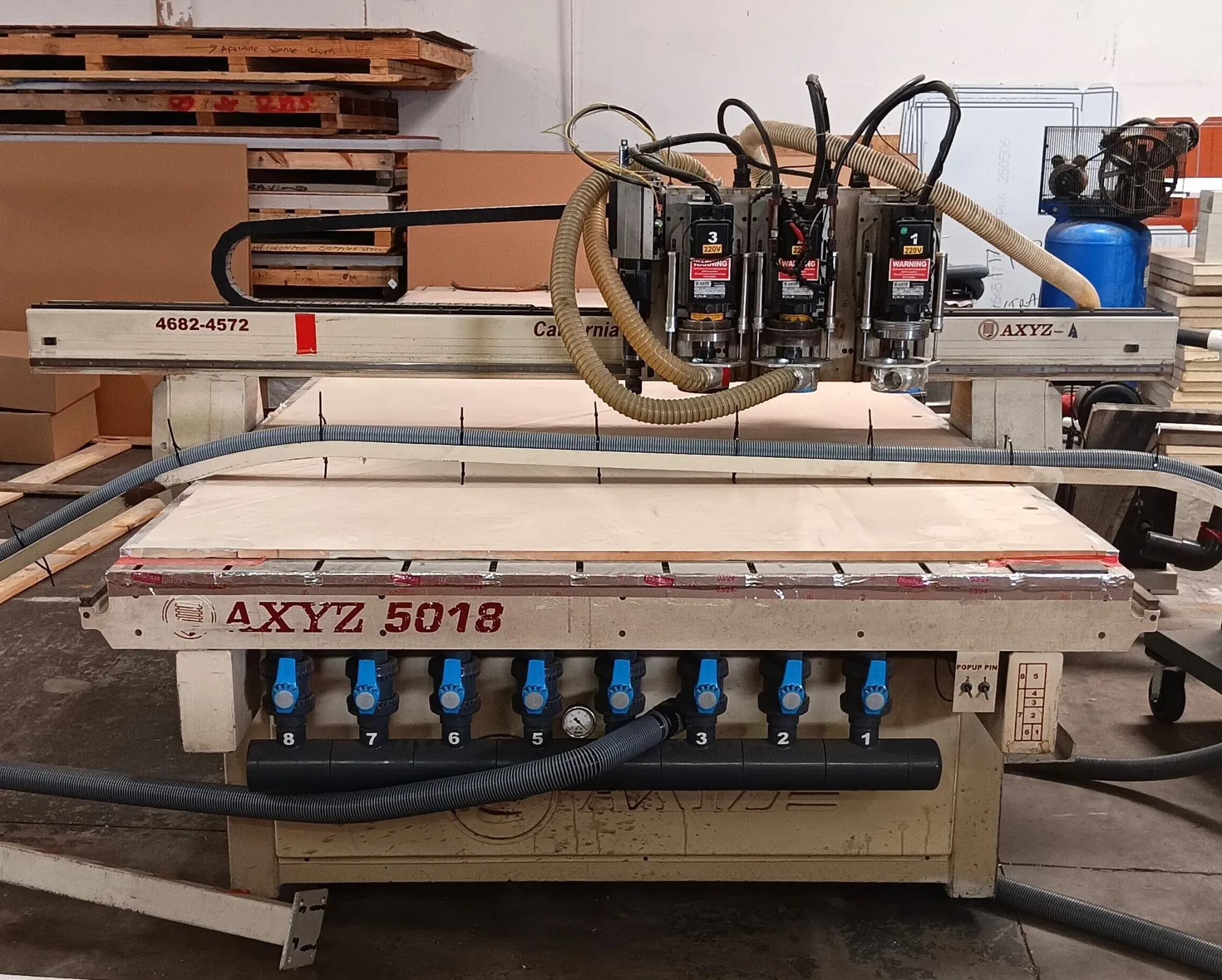

AXYZ 5018 CNC Router (2015)
X-Axis: 72″
Y-Axis: 216″
Z-Axis: 6″
Spindle Power: 10.8 HP
Spindle Speed: 24,000 RPM
Hours: 37.5
Dimensions: 242″L x 128″W x 72″H
Weight: 10,000 LBS
Electrics: 220/230/3/60
Smart Console, 3 Axis with 3 tool capabilities,drill press attachment and self-oiling system for cutting aluminum. Busch Mink MM 1252 AV, All software has just been updated by AXYZ this month and will be provided with back up for future users. AXYZ has all documentation
