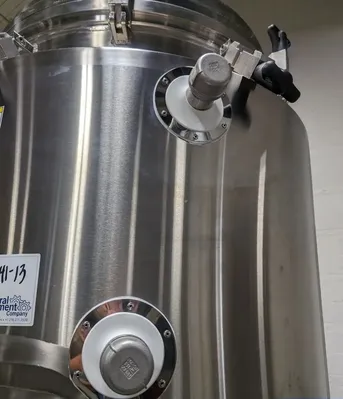

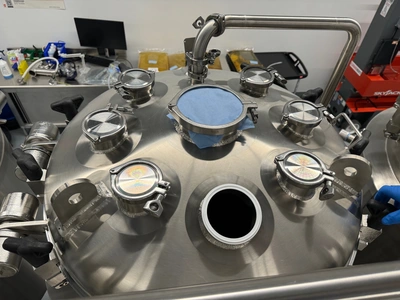

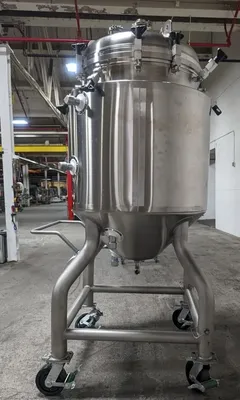

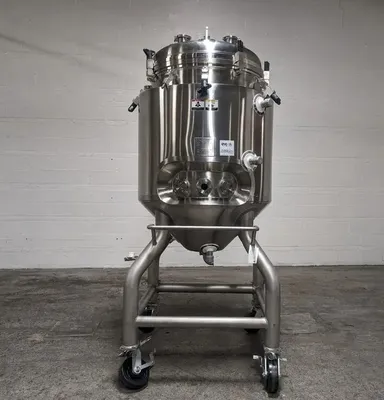

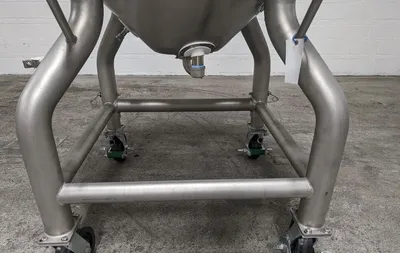

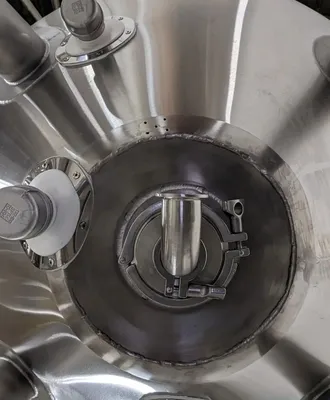

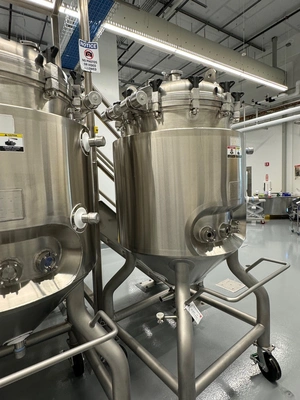

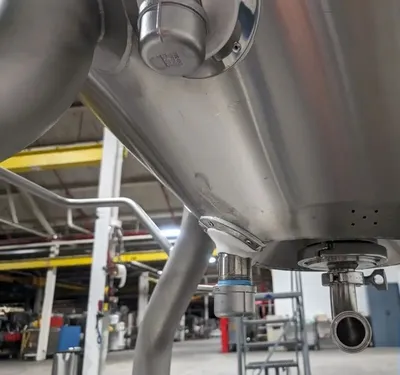

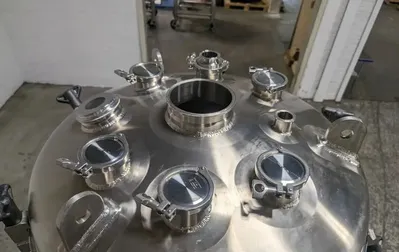

A&B Process Receiver Tank, 500 Liter capacity. 316 stainless steel construction, approximately 34.5" diameter x 38" straight side, dished removable top, cone bottom, rated 44 psi and full vacuum @ 366 F internal, jacketed for 150 psi @ 366 F, on legs, national board# 4591.
| Dimensions | 55" x 55" x 98" | 55" x 55" x 98" |
| Weight | 3000 | 3000 |
Straight Side (Inches): 38
Capacity (Gallons): 132
Diameter (Inches): 34.5
Internal Pressure (PSI): 44
Internal Temperature (°F): 366
Jacket Pressure: 150
Jacket Temperature (°F): 366
Jacketed: Yes
Material of Construction: Stainless Steel

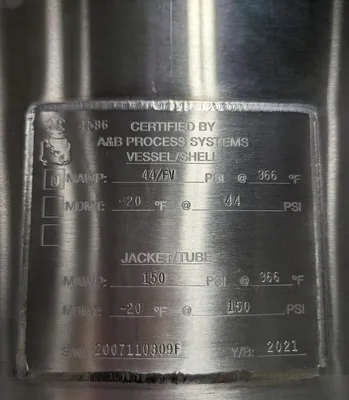

National Board Number: 4,586
Serial Number: 2007110809F
Stainless Steel Grades: 316
Vacuum Rated: Yes
Year of Construction: 2021
