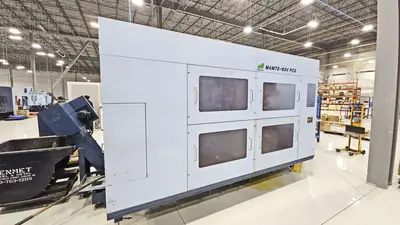

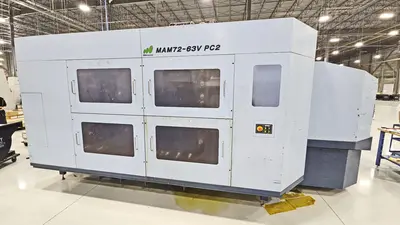

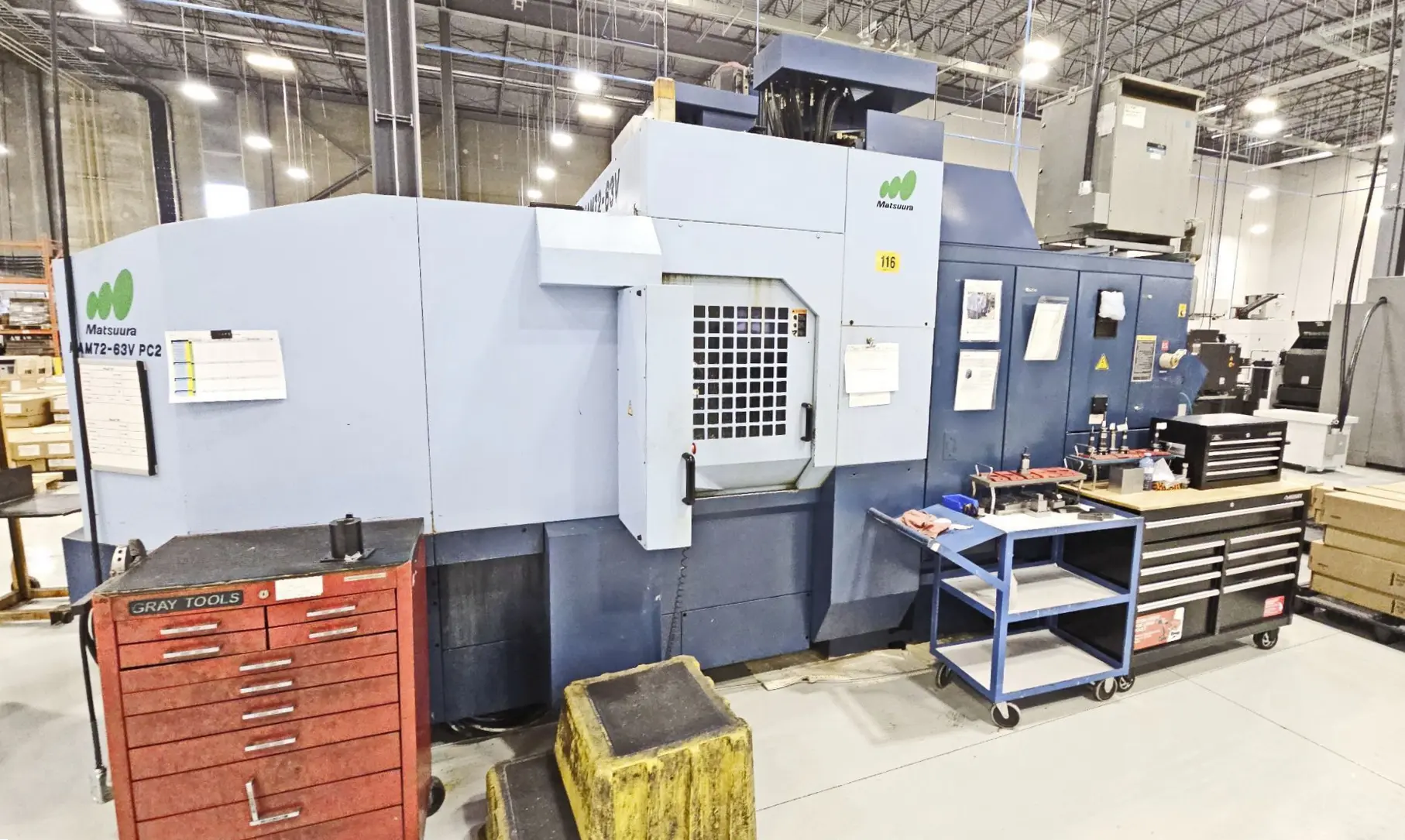

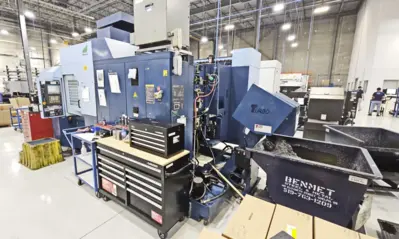

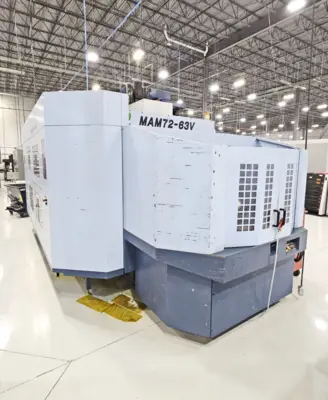

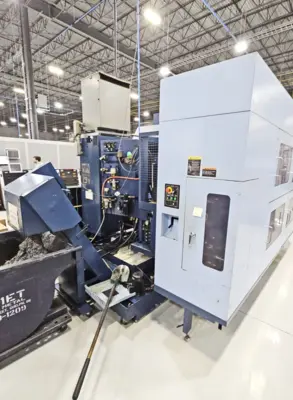

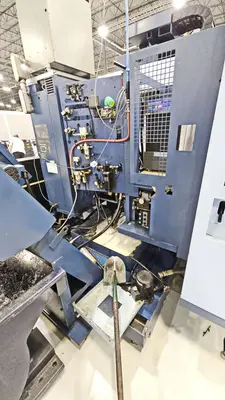

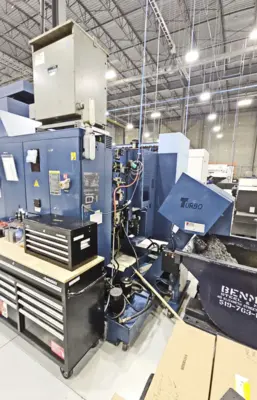

USED 2006 MATSUURA MAM72-63V PC2
Overview
Specifications
| X Axis Travel | 29.92" | 759.97 mm |
|---|---|---|
| Y Axis Travel | 33.26" | 844.8 mm |
| Z Axis Travel | 24.01" | 609.85 mm |
| A Axis Travel | +10° ~ -110° | +10° ~ -110° |
| C Axis Travel | 360° | 360° |
| Spindle Motor | 29.5 hp | 22 kW |
| Spindle Speed | 12,000 RPM | 12,000 RPM |
| ATC Capacity | 120 | 120 |
| Spindle Taper | 40 | 40 |
| # Axis | 5 | 5 |
| Table dimensions | 19.68" x 19.68" | 19.68" x 19.68" |
| Max. Table Load | 771 Lbs. | 771 Lbs. |
| Dimensions | 347" x 194.5" x 127" | 347" x 194.5" x 127" |
| Weight | 33,069 Lbs. | 33,069 Lbs. |
Equipped With

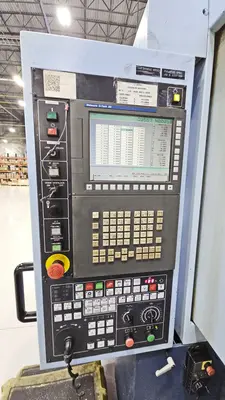

Matsuura G-Tech 30i CNC Control
Full 5-Axis

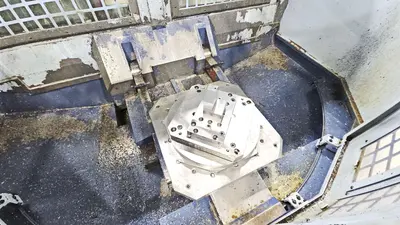

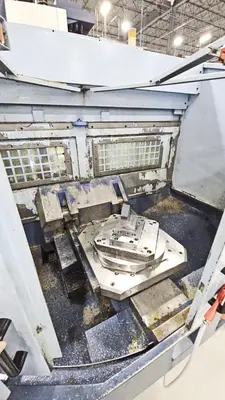

Dual-Pallet Changer
Spindle Overload Protection
Scale Feedback (a/c-axis)
Chip Conveyor
