EZ-Surf PC Based CNC Programmable Control
| Table-W | 6" | 152.4 mm |
| Table-L | 18" | 457.2 mm |
| Horz/Vert | Horz | Horz |
| Power | 2.5 hp | 1.9 kW |
| Grinding Wheel Width | 8" | 203.2 mm |
| Grinding Wheel Dia. | 0.5" | 12.7 mm |

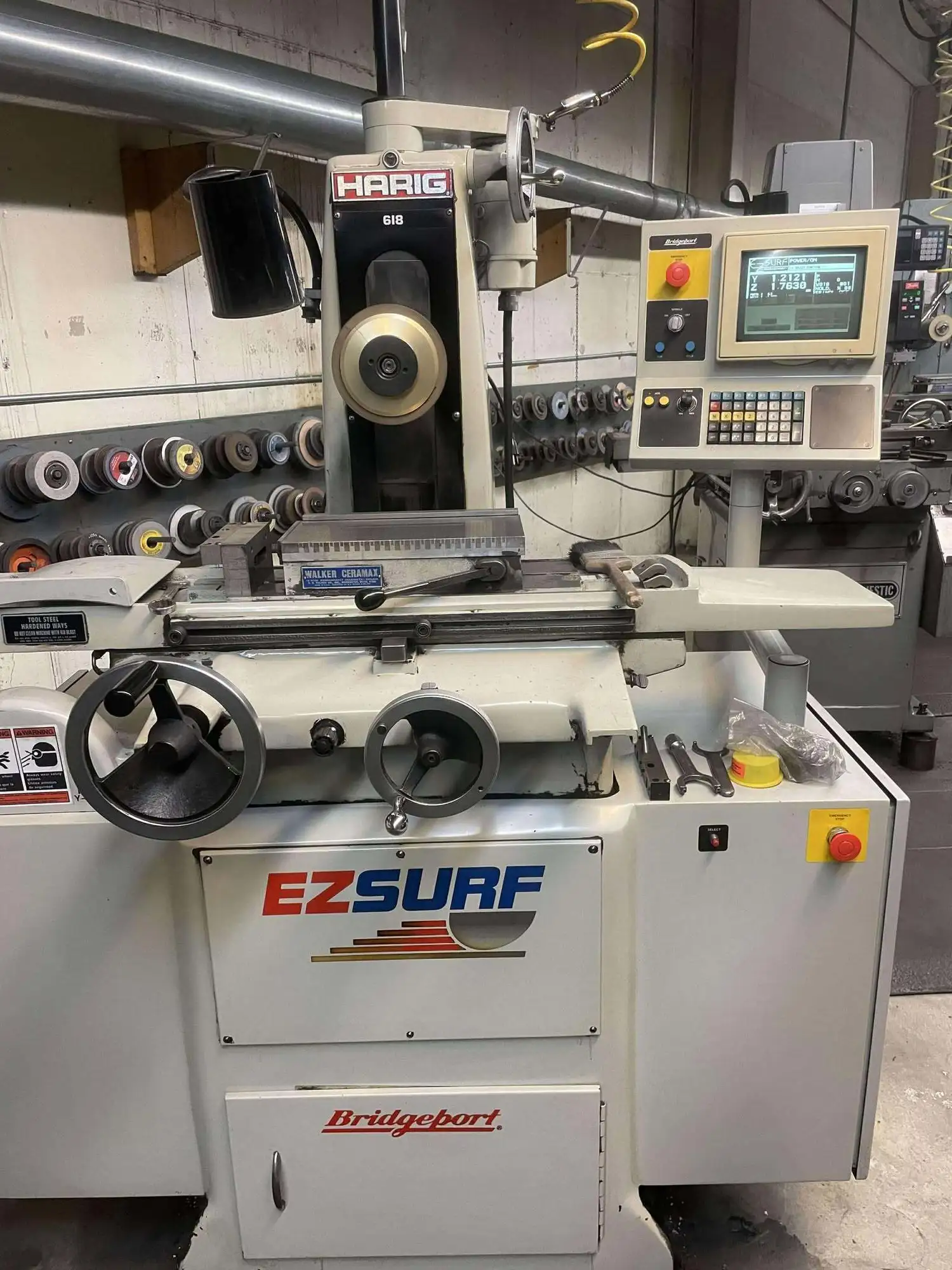

Bridgeport Harig Model 618 EZ Surf CNC Hydraulic Surface Grinder
Table Working Surface – Maximum: 6″ x 18″
Longitudinal Travel – X-Axis: 20″
Cross Travel – Z-Axis: 6-3/4″
Spindle Center to Table – Maximum Height: 12″
Grinding Spindle Speed: 3450 RPM
Grinding Wheel Diameter: 8″
Grinding Wheel Width: 1-1/4″
Grinding Wheel Hole Diameter: 1-1/4″
Grinding Wheel Motor: 2.5 HP
Electrics: 460/230/3/60
Approximate Dimensions: 89″L x 75″W x 88″H
Approximate Weight: 2900 Lbs.
