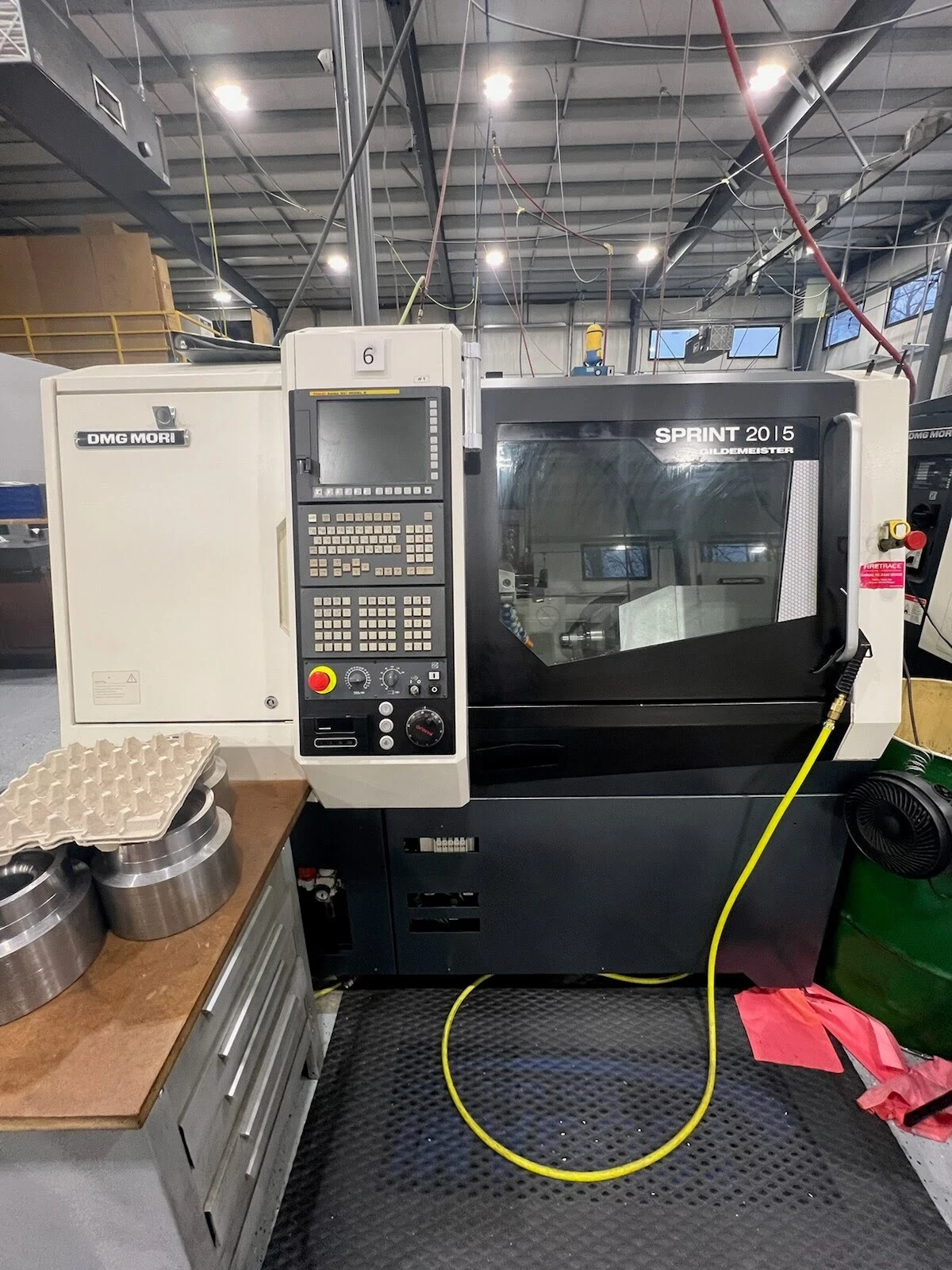

USED 2015 DMG MORI Sprint 20/5

Machine concept
Number of linear axes + C-axes 5 + 1
Number of spindles 2
Number of channels 2
Main spindle
Maximum bar capacity mm | in 20 | 0.79
Speed rpm 10,000
Power (S2 30 min/S1) kW | hp 3.7/2.2 | 5.0/3.0
Torque (S2 30 min/S1) Nm | ft lbs 23.6/14 | 17.4/10.3
Counter spindle
Maximum bar capacity mm | in 20 | 0.79
Speed rpm 10,000
Power (S2 30 min/S1) kW | hp 2.2/1.5 | 3.0/2
Torque (S2 30 min/S1) Nm | ft lbs 7.0/4.8 | 5.2/3.5
Working area/ travels
Tool carrier 1: X1/Y1 travel mm | in 50/325 | 1.97/12.80
Counter spindle: X2/Z2 travel mm | in 220/170 | 8.66/6.69
Rapid traverse speed on linear axes
X1, Z1, X2, Z2/Y1, Y2 m / min | in/ min 32/32 | 105/105
Acceleration in linear axes m /s² | ft /s² 5 | 0.02
Tool holder on slide 1
Fixed turning tools 6
Tools for front machining/back-working 6/3
Driven tools 2 + 2
Maximum speed rpm 6,000
Power (S3 40 % /S1) kW | hp 1.3/0.8 | 1.7/1.1
Maximum torque (S3 40 % /S1) Nm | ft lbs 2/1.3 | 1.5/1.0
Maximum speed rpm 3,450
Power (S3 40 % /S1) kW | hp 1.3/0.8 | 1.7/1.1
Maximum torque (S3 40 % /S1) Nm | ft lbs 3.5/3 | 2.6/2.2
Tool holder on slide Y2 On station for back working On station for back working
Fixed/driven tools for back-working 4/0
Maximum speed rpm 6,000
Power (S3 40 % /S1) kW | hp 1.2/1 | 1.6/1.3
Maximum torque (S3 40 % /S1) Nm | ft lbs 2.5/2 | 1.8/1.5
