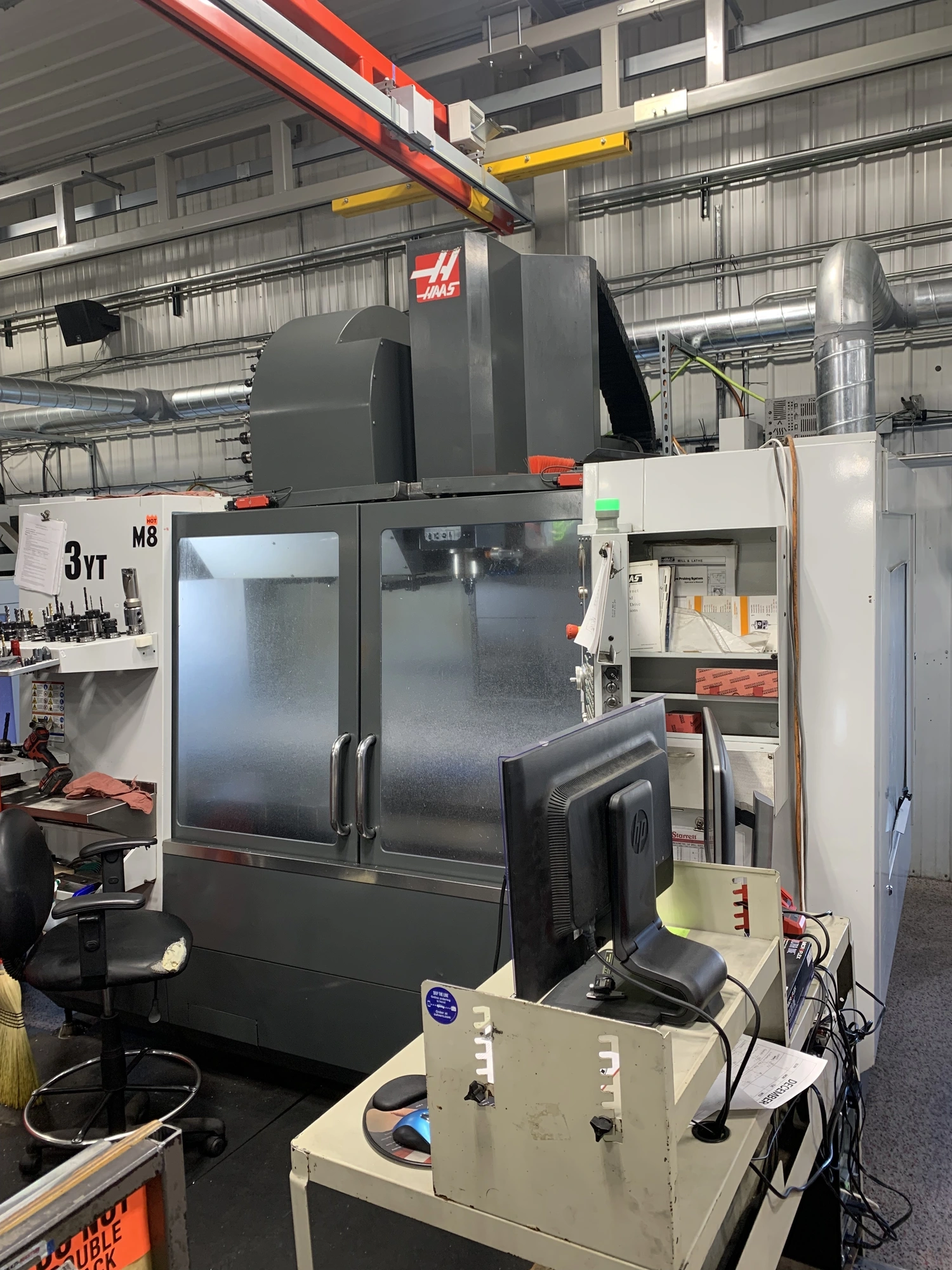

USED 2012 HAAS VF-3-YT

TRAVELS
X Axis 40.0 in 1016 mm
Y Axis 26.0 in 660 mm
Z Axis 25.0 in 635 mm
Spindle Nose to Table (~ max) 29.2 in 742 mm
Spindle Nose to Table (~ min) 4.2 in 107 mm
SPINDLE
Max Rating 30.0 hp 22.4 kW
Max Speed 8100 rpm
Max Torque 90.0 ft-lbf @ 2000 rpm 122.0 Nm @ 2000 rpm
Max Torque w/opt Gearbox 250 ft-lbf @ 450 rpm 339 Nm @ 450 rpm
Drive System Inline
Taper CT40
Bearing Lubrication Air / Oil Injection
Cooling Liquid Cooled Liquid Cooled
TABLE
Length 54.0 in 1372 mm
Width 24.0 in 610 mm
T-Slot Width 0.626 in to 0.630 in 15.90 mm to 16.00 mm
T-Slot Center Distance 3.15 in 80 mm
Number of Std T-Slots 7
Max Weight on Table (evenly distributed) 3500 lb 1588 kg
FEEDRATES
Max Cutting 500 ipm 12.7 m/min
Rapids on X 710 ipm 18.0 m/min
Rapids on Y 710 ipm 18.0 m/min
Rapids on Z 710 ipm 18.0 m/min
AXIS MOTORS
Max Thrust X 2550 lbf 11343 N
Max Thrust Y 4100 lbf 18238 N
Max Thrust Z 4100 lbf 18238 N
TOOL CHANGER
Type Carousel
Capacity 40
Max Tool Diameter (full) 3.5 in 89 mm
Max Tool Weight 12 lb 5.4 kg
Tool-to-Tool (avg) 4.20 s 4.2 s
Chip-to-Chip (avg) 4.50 s 4.5 s
GENERAL
Coolant Capacity 55 gal 208 L
AIR REQUIREMENTS
Air Required 4 scfm @ 100 psi 113 L/min @ 6.9 bar
Inline Air Hose 3/8 in
Coupler (Air) 3/8 in 3/8 in
Air Pressure Min 80 psi 5.5 bar
ELECTRICAL SPECIFICATION
Spindle Speed 8100 rpm
Drive System Inline Direct-Drive
Spindle Power 30.0 hp 22.4 kW
Input AC Voltage (3 Phase) - Low 220 VAC
Full Load Amps (3 Phase) - Low 70 A
Input AC Voltage (3 Phase) - High* 440 VAC
Full Load Amps (3 Phase) - High* 35 A
