| size | 15" Chuck | 15" Chuck |
| Swing | 33" | 838.2 mm |
| Machining Length | 83.9" | 2,131.1 mm |
| # Axis | 2 | 2 |
| Chuck Size | 18" | 457.2 mm |
| Bar Capacity | 6.5" | 165.1 mm |
| Power | 73 hp | 54.4 kW |
| Turning Dia | 25" | 635 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |

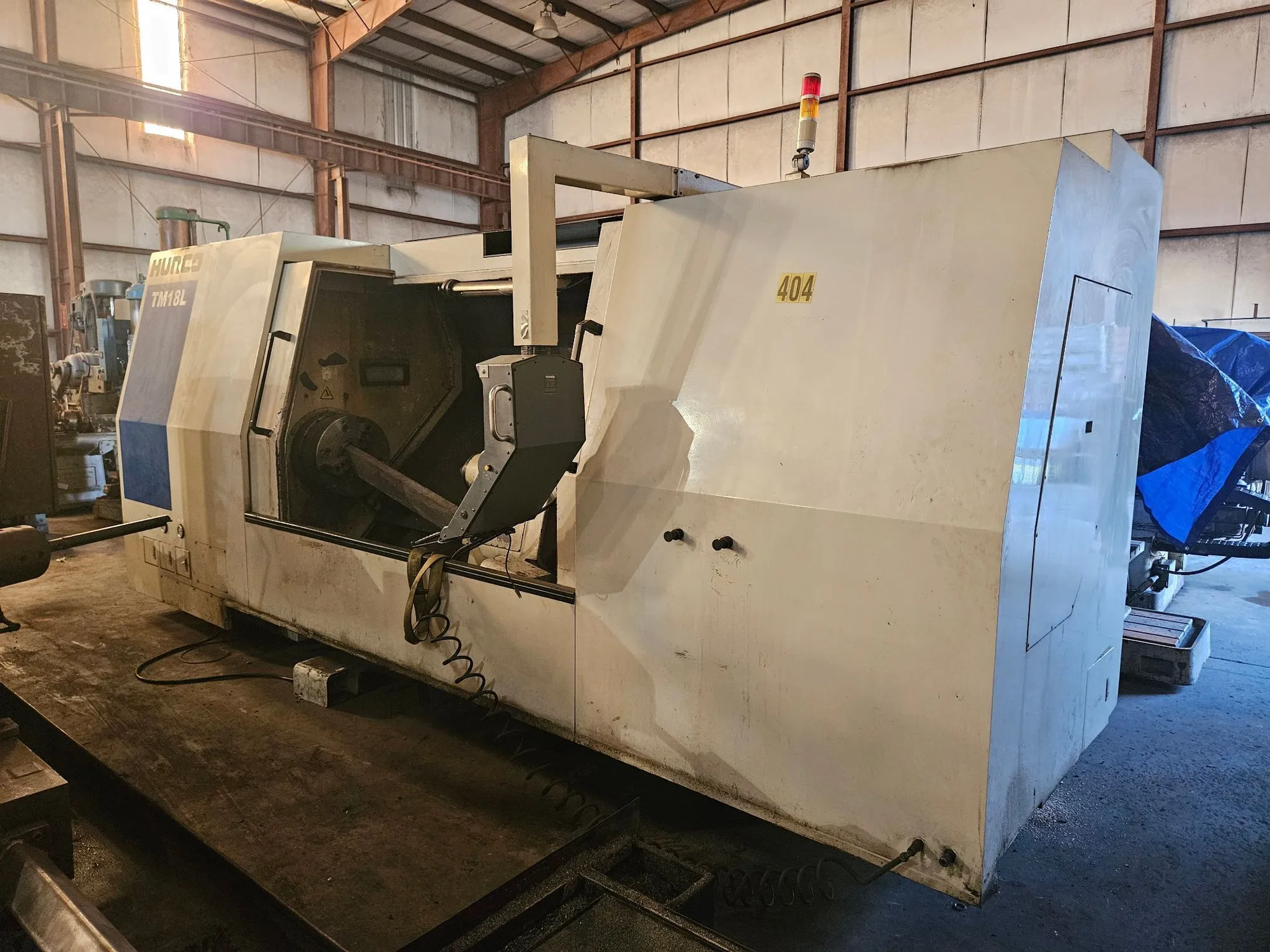

Hurco TM18LI 33" x 83" 2 Axis Flat Bed CNC Lathe
Swing Over Bed: 33.5"
Center Distance: 83.9"
Swing Over Cross Slide: 25.6"
Max Turning Diameter: 25"
X-Axis: 17"
Z-Axis: 80"
Spindle Power: 73 HP
Spindle Nose: A2-15
Tool Capacity: 12 Stations
