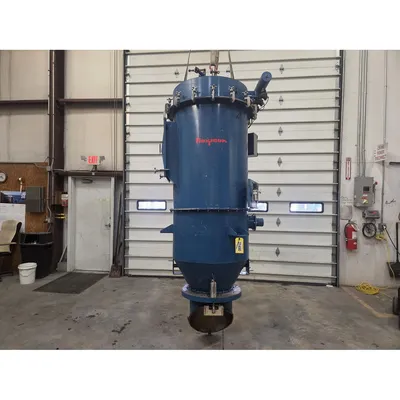

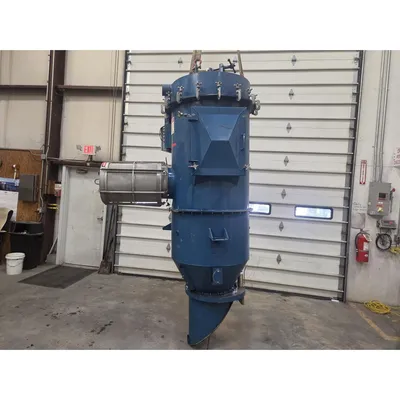

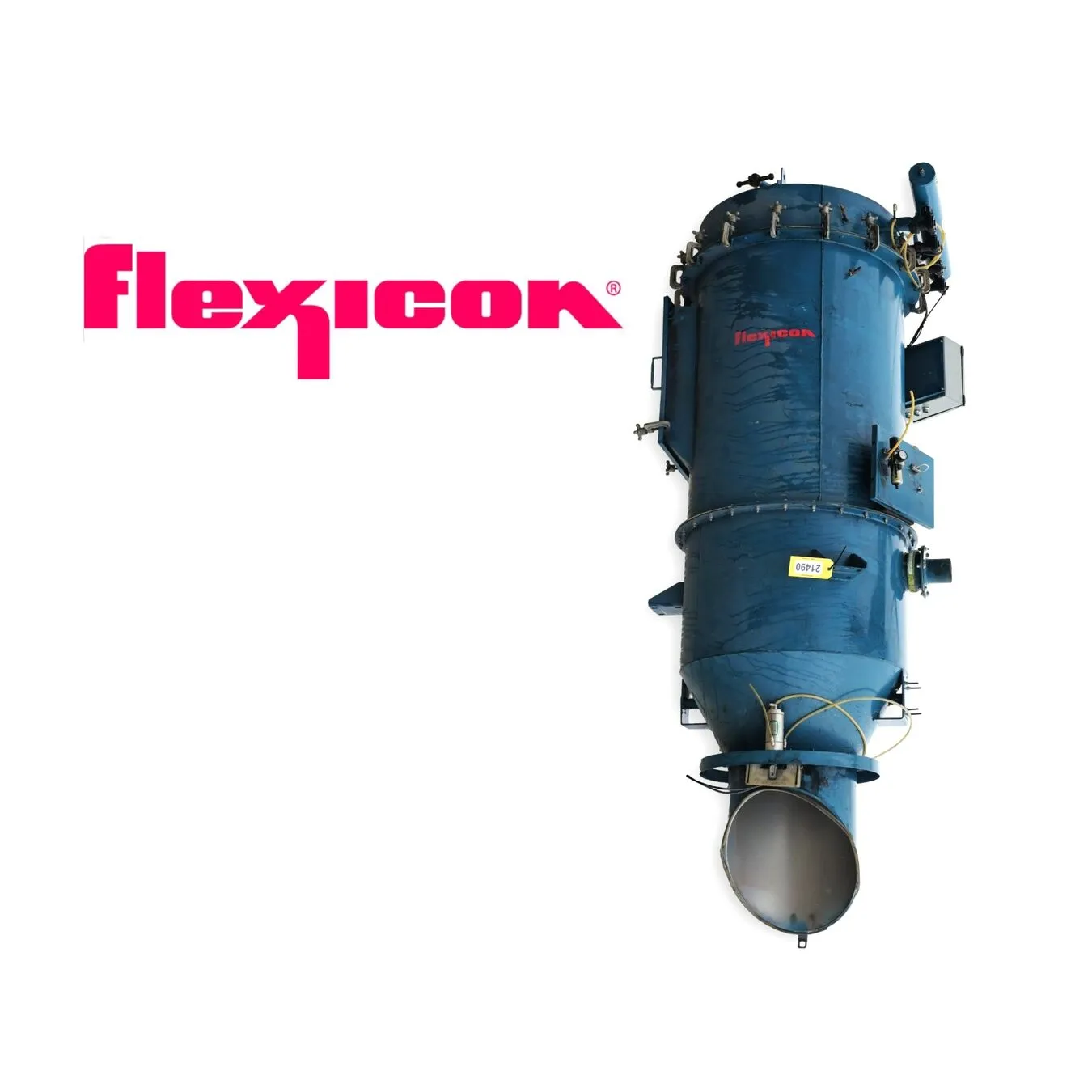

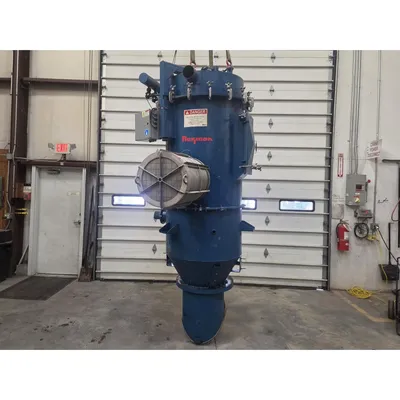

Used 36" Dia. Flexicon Filter Receiver Cartridge Collector w/Fike Explosion Vent
Overview
For material separation in a pneumatic conveying system airstream with pulse-jet filter cleaning.

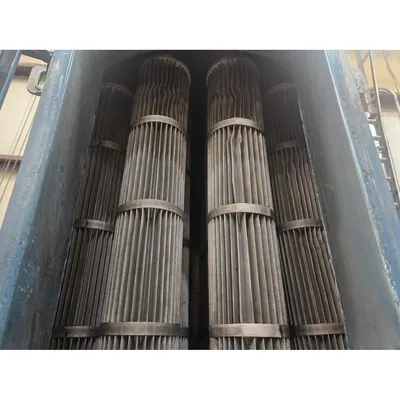

Contains a quantity of fourteen- spun bond polyester cartridge filters.
Filtration Area: 290 square feet
Pressure Rating: 7.25PSI
Housing Dimensions: 36"Ø X 128" tall
Inlet: 4" O.D. sleeve
Outlet: 6"Ø flange with 4" O.D. sleeve adapter

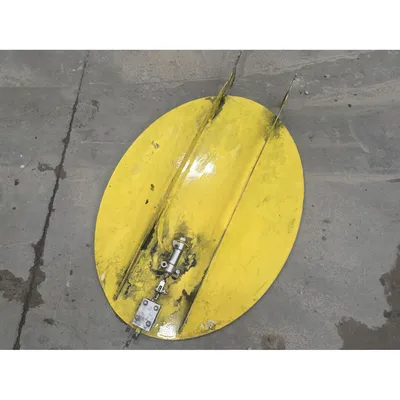

Solids Discharge: 20"Ø flap type pneumatic dump valve with 26"Ø spout skirt
Included components:
•14 cu/ft capacity Type "R" receiving hopper for semi-free flowing powders with tri-mounts.

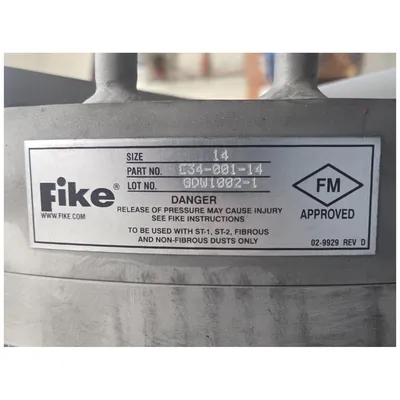

•Flameless explosion vent & flame quench assembly (14"Ø flange connection).
•Side-mounted inspection door & top filter access with davit lift assist.

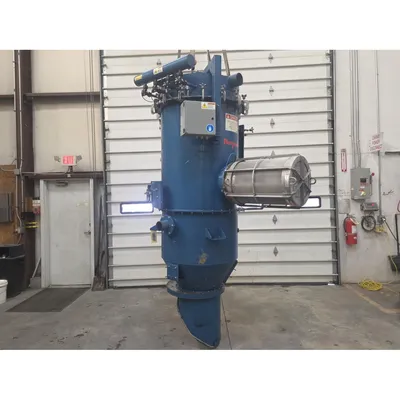

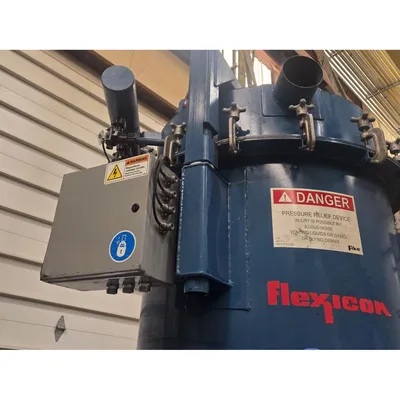

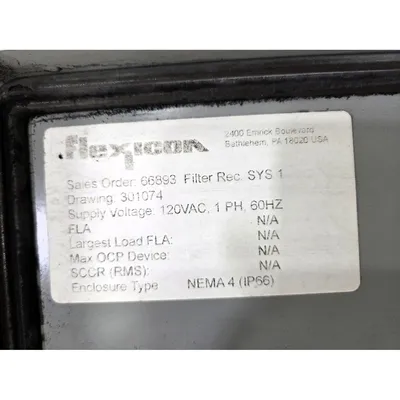

NEMA 4 control enclosure with solenoid valves and filter timer controller.
Unit will require 120V, 1PH, 60Hz AC power and 60-80PSI compressed air.
Total height required for filter removal: approx. 158"
Drawing package and operation manual on file.
FOB: Millwood, WV 25262
Specs
Item: 21490
MFG: Flexicon
CFM: 0
Capacity (sqft): 290
