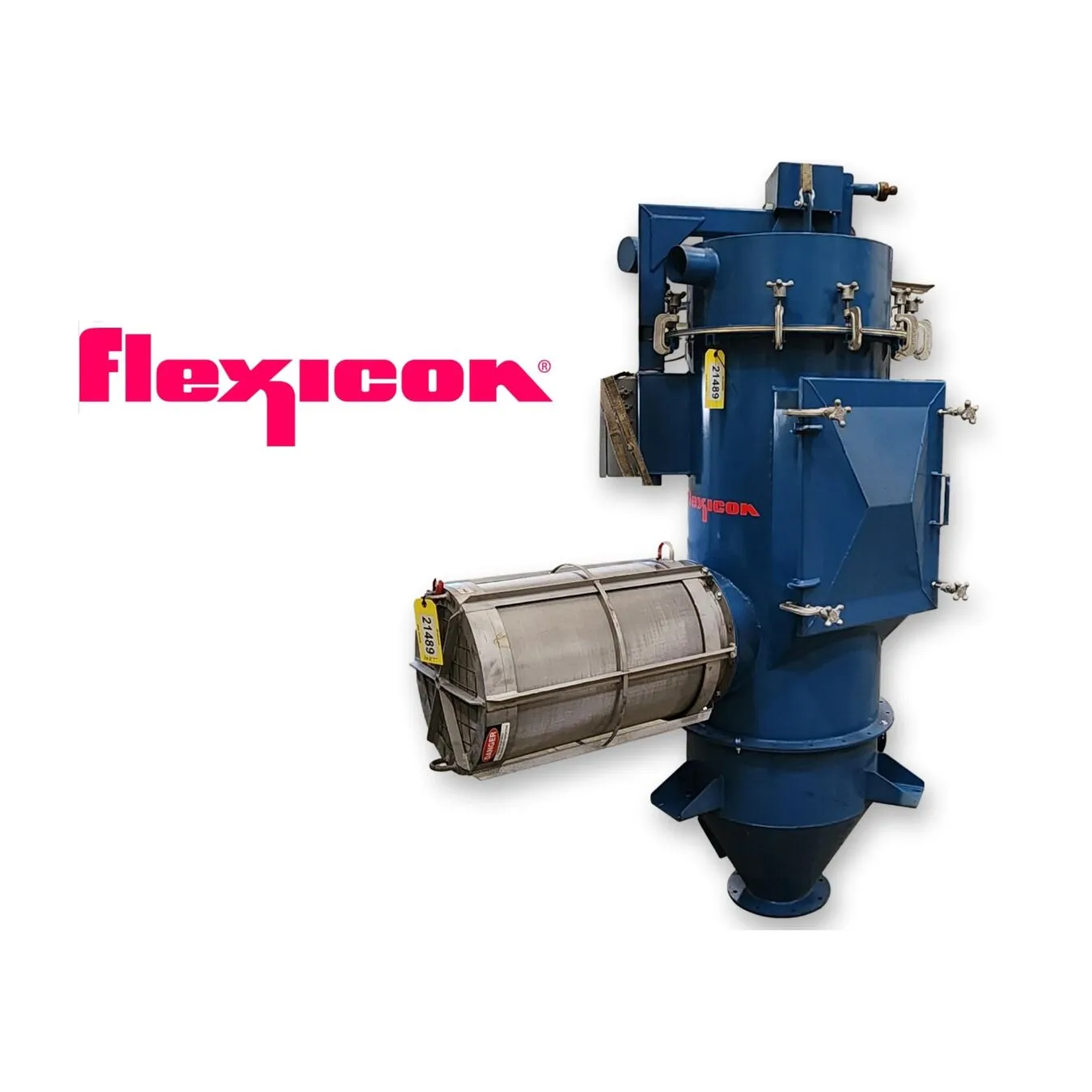

USED FLEXICON FRCT-C24W-X

For material separation in a pneumatic conveying system airstream with pulse-jet filter cleaning.

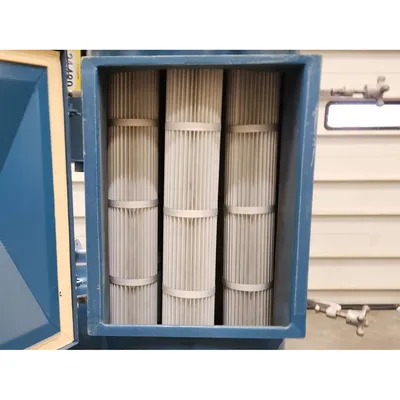

Contains a quantity of seven- spun bond polyester cartrige filters, top romoval.
Filtration Area: 145 square feet
Air Flow: 200CFM
Pressure Rating: 7.25PSI

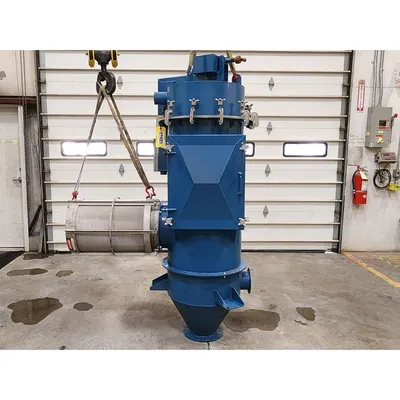

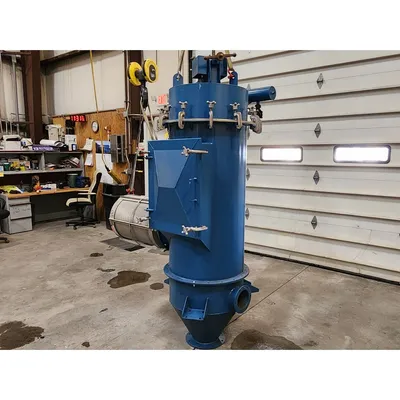

Housing Dimensions: 24"Ø X 89.5" tall (40" additional for filter removal)
Inlet: 6" flange
Outlet: 4"Ø sleeve
Solids Discharge: 8" flange
Included components:
•2 cu/ft capacity Type "R" receiving hopper for semi-free flowing powders with mounts.

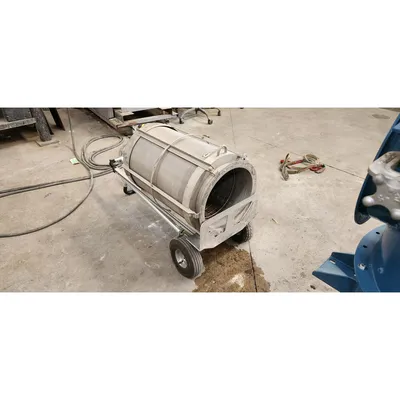

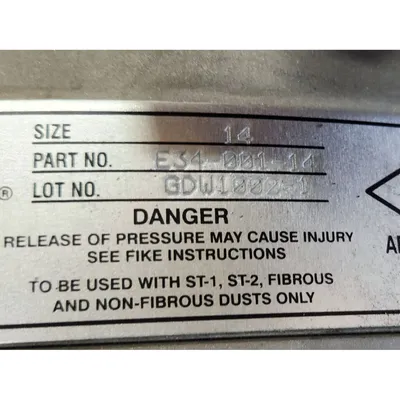

•Flameless explosion vent (14"Ø flange connection).
•Side-mounted inspection door & top filter access with davit lift assist.

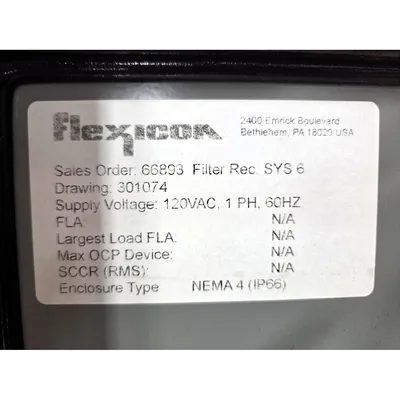

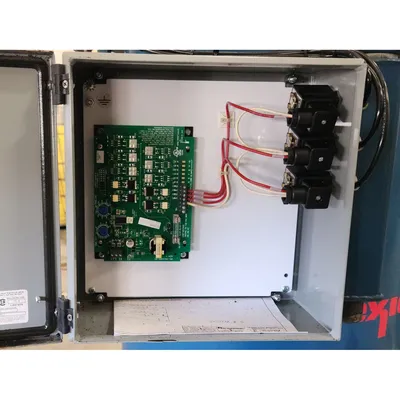

NEMA 4 control enclosure with solenoid valves and filter timer control.
Unit will require 120V, 1PH, 60Hz AC power and 80PSI compressed air.

FOB: Millwood, WV 25262

Item: 21489      Model :   FRCT-C24W-X
 MFG: Flexicon
 CFM: 200
  Capacity (sqft): 145
