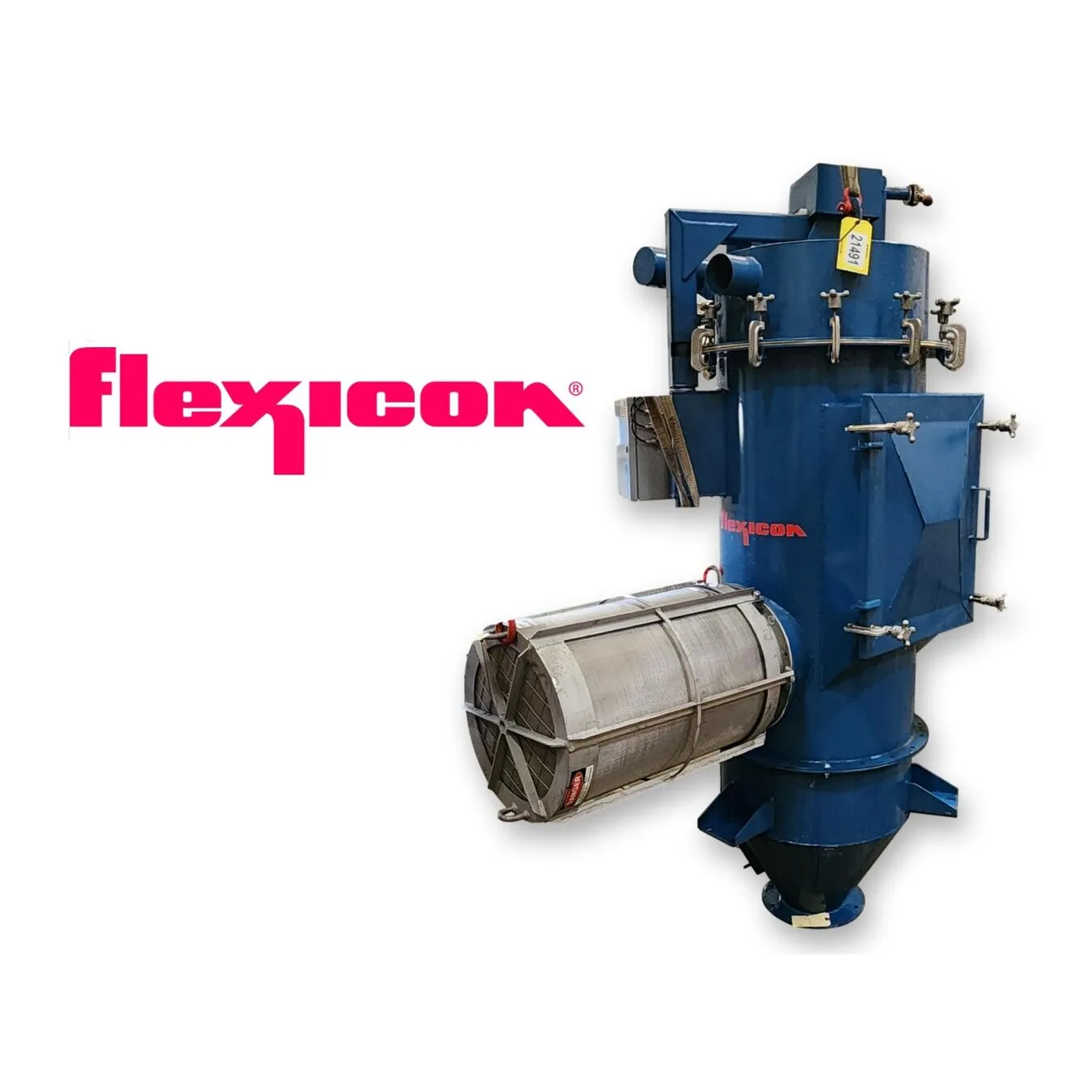

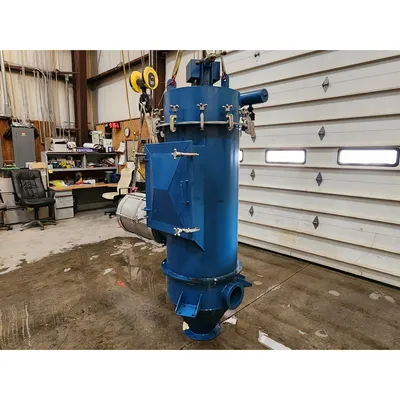

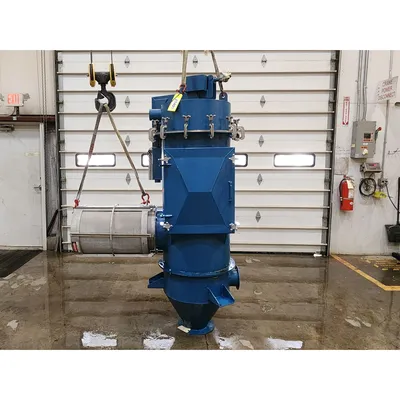

Used 24" Flexicon Filter Receiver Cartridge Collector with Fike Explosion Vent
Overview
Description
Sales Order: 66893
For material separation in a pneumatic conveying system airstream with pulse-jet filter cleaning.

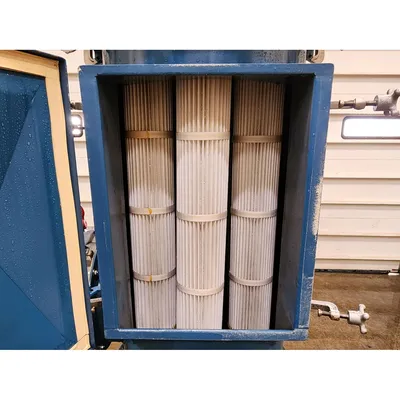

Contains a quantity of seven- spun bond polyester cartridge filters, top removal.
Filtration Area: 145 square feet
Air Flow: 200CFM
Pressure Rating: 7.25PSI
Housing Dimensions: 24"Ø X 89.5" tall (40" additional for filter removal)
Inlet: 6" flange
Outlet: 4"Ø sleeve
Solids Discharge: 8" flange
Included components:
•2 cu/ft capacity Type "R" receiving hopper for semi-free flowing powders with tri-mounts.

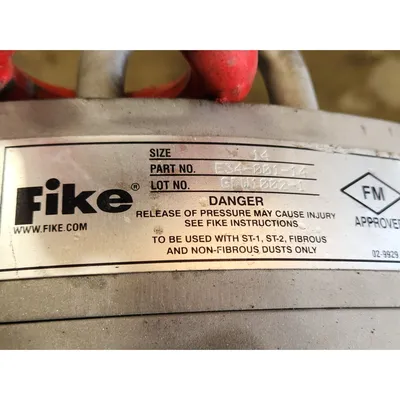

•Flameless explosion vent & flame quench assembly (14"Ø flange connection).
•Side-mounted inspection door & top filter access with davit lift assist.

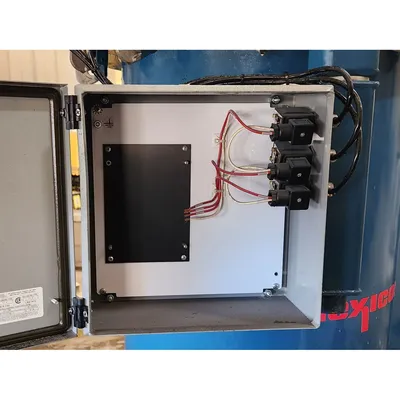

NEMA 4 control enclosure with solenoid valves (missing control, will require a pulse timer card).
Unit will require 120V, 1PH, 60Hz AC power and 80PSI compressed air.
FOB: Millwood, WV 25262
Specifications
Item: 21491
MFG: Flexicon
CFM: 200
Capacity (sqft): 145
