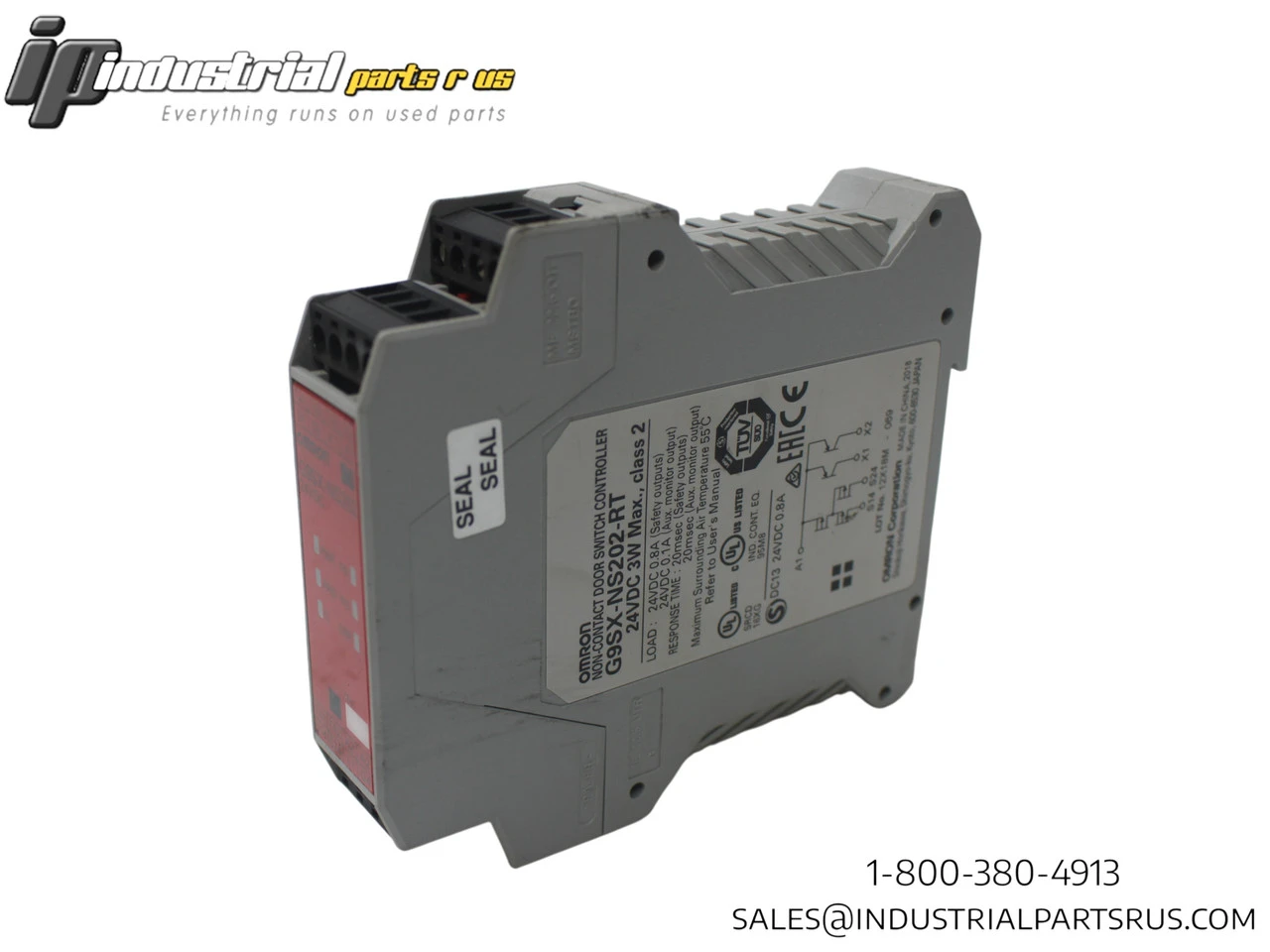

USED OMRON G9SX-N202-RT

The Omron G9SX-NS202-RT is a safety relay designed for electronic monitoring and control of non-contact door switches in industrial automation applications. This unit provides enhanced stability in operation and can connect up to 30 non-contact door switches with LED indicators to one controller.
Specification
Value
Brand
Omron
Model/Part Number
G9SX-NS202-RT
Series
G9SX-NS
Supply Voltage
24V DC
Power Consumption
3W max
Safety Category
Category 3 (EN 954-1)
Safety Rating
PLd (ISO 13849-1)
Input Type
Non-Contact Door Switch
Safety Input Voltage
20.4-26.4V DC
Safety Contacts
2 Instantaneous
Auxiliary Contacts
2
Reset Method
Automatic & Manual
Terminal Type
Screw
Mounting
DIN Rail
Dimensions (W x D x L)
23mm x 115mm x 100mm
Operating Time
100ms max (OFF to ON)
Standards
EN 50178
Country of Origin
China
We warranty all items for 30 days from date of purchase.

SKU: AI0097
UPC: 679523686260
Condition: Used
Availability: In Stock
Weight: 2.00 LBS
Width: 6.00
(in)
Height: 7.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
Country/Region of Manufacture: Japan
GTIN: 679523686260
Manufacturer: Omron
Part Number: G9SX-N202-RT
Response Time: 15 ms max
Shelf: F-19 Tub 2
Model: G9SX-N202-RT
MPN: G9SX-N202-RT
Type: Safety Relay
Mounting Style: DIN Rail
Current Rating: 6A
Application: Safety Control
Coil Voltage: 24V DC
