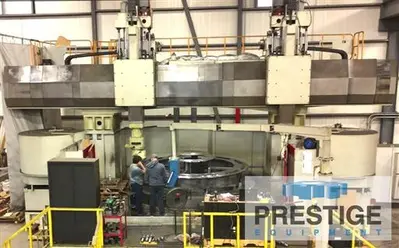

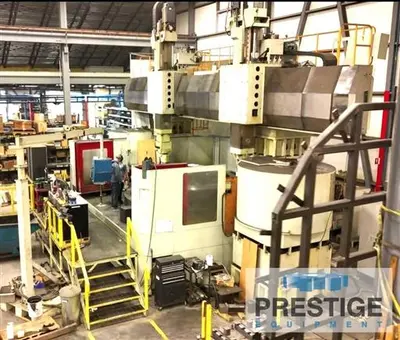

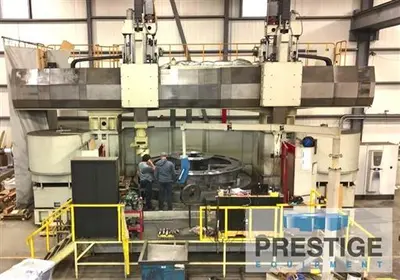

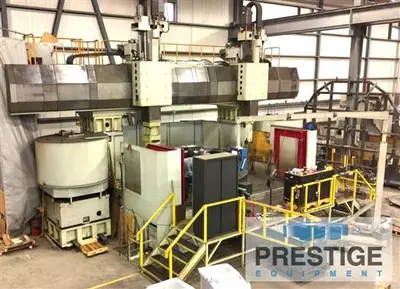

USED 2017 KIHEUNG VH 5000

SPECIFICATIONS:
Table Diameter: 144"
Turning Diameter: 196.85"
Maximum Turning Height: 84"
Maximum Stroke of Vertical Rams: 39.34"
Ram Cross Section: 17.71" x 17.71"
Table Speeds, Max: 50 RPM
Table Motor: 240 HP
Table Indexing: .001 dgrees
Table Capacity: 100 Ton

MILLING SPINDLE:
Milling Spindle Taper: #50
Milling Spindle Speeds, Max: 2500 RPM
Milling Spindle Motor: 80 HP

FLOOR SPACE & MACHINE WEIGHT:
Machine Footprint: 615" x 292"
Machine Height: 287"
Machine Weight: 400,000 lbs

Equipped With:
Siemens 840D CNC Control
Live Spindle on Both Rams
C-Axis Table for Milling and Drilling Operations
144" Hydrostatic Chuck
Automatic Tool Changer on Both Rams
2-Axis Head w/ Adapter

NOTES:
Inspect In Plant Under Power!

Features:
Siemens 840D CNC Control
Live Spindle on Both Rams
C-Axis Table for Milling and Drilling Operations
144" Hydrostatic Chuck
Automatic Tool Changer on Both Rams
2-Axis Head w/ Adapter
