USED 1995 P&H 2 TON REDILIFT CABLE HOIST

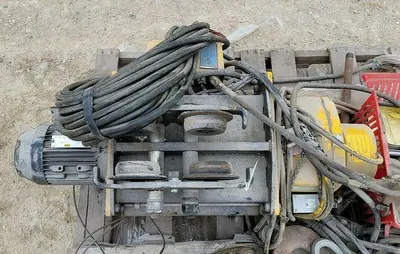

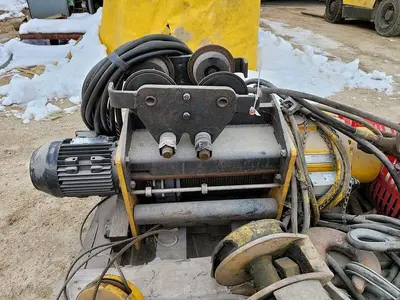

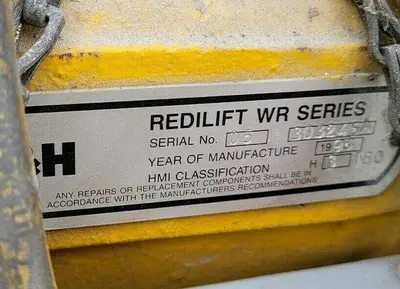

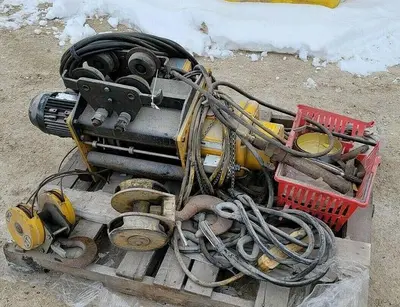

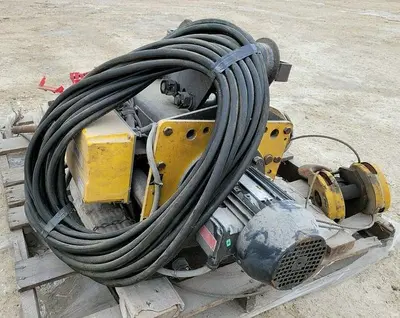

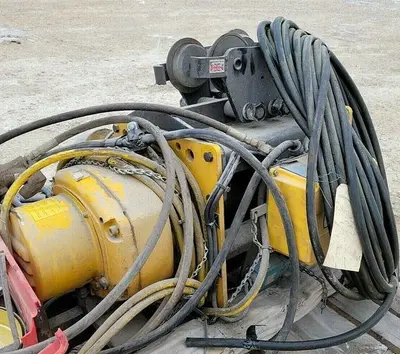

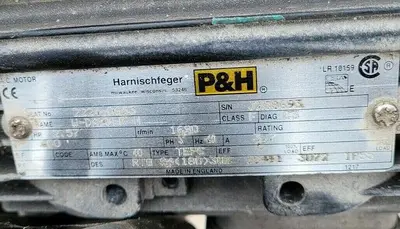

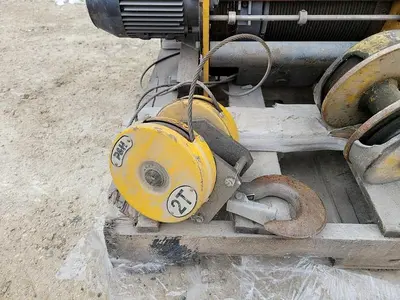

1995 P&H Redilift WR Series Underslung Cable Hoist | 2 Ton CapacityUNIT OVERVIEW The P&H Redilift WR Series is a heavy-duty, industrial wire rope hoist known for its rugged construction and reliability in demanding production environments. This 2 Ton (4,000 lb) underslung unit is designed to run on the bottom flange of an I-beam or patented track, making it an excellent choice for low-headroom applications where maximizing lift height is critical.TECHNICAL SPECIFICATIONSManufacturer: P&H (Harnischfeger Corp / Morris Material Handling)Model: Redilift WR SeriesYear of Manufacture: 1995Capacity: 2 Ton (4,000 lbs)Type: Underslung Wire Rope (Cable) HoistTrolley: Integrated Motorized TrolleyHoist Motor: 2.5 HP | 1690 RPMVoltage: 208-230/460V | 3-Phase | 60 HzDuty Classification: Class C or D (Heavy Industrial)Country of Origin: USAApprox: 20' Lift KEY DEALER FEATURESLow-Headroom Underslung Design The WR series is engineered to sit tight against the runway beam. This underslung configuration is perfect for facilities with low ceilings, allowing you to lift loads higher than a standard top-running hoist could manage. It maximizes your usable vertical workspace without compromising capacity.Precision Wire Rope Hoisting Unlike chain hoists, wire rope hoists provide a smoother lift and are better suited for high-duty cycle applications. The cable drum is precision-grooved to ensure the wire rope seats properly, preventing overlapping and extending the life of the cable. The self-aligning lower hook block further prevents rope overlap during operation.Industrial-Grade Reliability P&H hoists are "legacy" machines built with a balanced design and a robust gearbox featuring precision-cut, hardened alloy steel gears. These units are famously rebuildable, with a mechanical load brake and a heavy-duty AC magnetic motor brake designed for instant, secure stopping power.Heavy-Duty Motorized Trolley The integrated 3-phase motorized trolley provides effortless lateral movement along the beam. Its heavy-duty construction and adjustable side rollers allow it to be fitted to various I-beam sizes, ensuring smooth travel even under a full 2-ton load.

Voltage rating: 220 V
Custom bundle: No
Country of manufacture: United States
Modified item: No
* Approx: 20' Lift
* Capacity: 2 Ton (4,000 lbs)
* Trolley: Integrated Motorized Trolley
