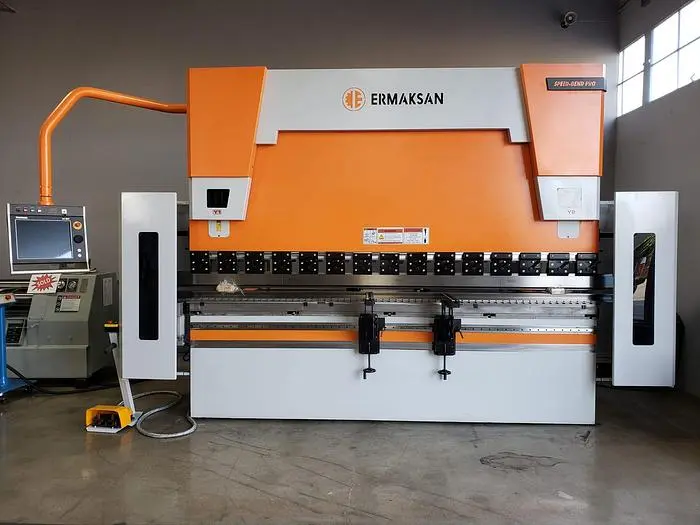

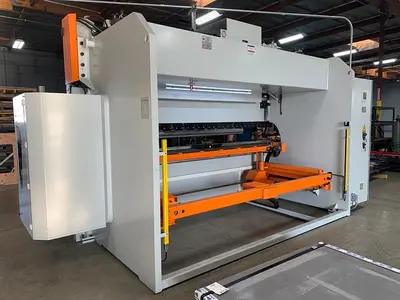

NEW ERMAKSAN SB 4270-175

Capacity: 193 Tons
Overall Bending Length: 168"
Distance Between Housings: 148.82
Y Rapid Speed: 7.09" /sec
Y Working Speed: 0.47" /sec
Y Return Speed: 7.48" /sec
X Axis Travel: 31.5"
X Axis Speed: 13.78" / sec
Z1, Z2 Axis Speed: 39.37"
Stroke: 10.8"
Daylight: 21.65
Throat: 16.1"
Dimensions (approx): 247 x 87 x 106"H
Weight (approx.): 25,400 lbs.
Oil Capacity: 79 Gallons

Equipped With:
Delem DA-69S Full 3D Touch Screen Control
Delem Profile-T 3D Software (Full Version)
Y1, Y2, X, R, Z1, Z2 Axes
CNC Crowning
LazerSafe System
Suspension Controller Arm

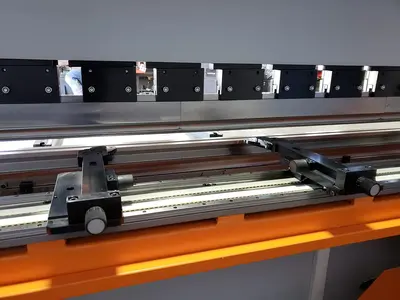

Quick Release Universal Punch Holders,
Tooling Package w/4-Way Bottom Die
Sheet Support Arms
Foot Pedal
