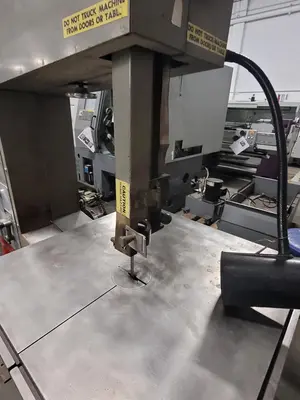

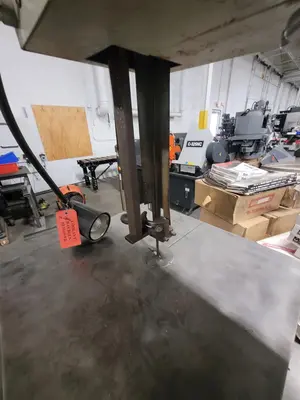

THE WELLSAW MODEL V20 VERTICAL BANDSAW FEATURES A 20-INCH THROAT DEPTH AND A TABLE-TO-GUIDE HEIGHT OF 16 INCHES. IT ACCOMMODATES BLADE SIZES RANGING FROM 3/16 INCH TO 3/4 INCH AS STANDARD, WITH OPTIONAL SIZES FROM 1/2 INCH TO 1 INCH. THE BLADE LENGTH IS 14 FEET 9 INCHES (177 INCHES). THE BANDSAW IS EQUIPPED WITH 21-INCH CAST ALUMINUM BAND WHEELS WITH REPLACEABLE RUBBER TIRES. IT OFFERS BLADE SPEEDS IN TWO RANGES: A LOW RANGE OF 45 TO 400 SURFACE FEET PER MINUTE (SFPM) AND A HIGH RANGE OF 325 TO 3000 SFPM. THE BLADE GUIDES ARE DESIGNED WITH SEALED BALL BEARINGS AND A 90-DEGREE ROTATION FEATURE. THE TABLE MEASURES 26 INCHES BY 26 INCHES AND IS MADE OF CAST IRON, WITH A TILT CAPABILITY OF 5 DEGREES INSIDE AND 45 DEGREES OUTSIDE. THE OVERALL HEIGHT OF THE MACHINE IS 37-1/2 INCHES. IT IS POWERED BY A THREE-PHASE 3HP MOTOR, COMPATIBLE WITH 208/230/460 VOLTS. THE FLOOR AREA REQUIRED FOR THE BANDSAW IS 32 INCHES WIDE BY 48 INCHES DEEP, WITH A STANDARD HEIGHT OF 83-1/2 INCHES. THE SHIPPING WEIGHT OF THE UNIT IS 950 POUNDS.
