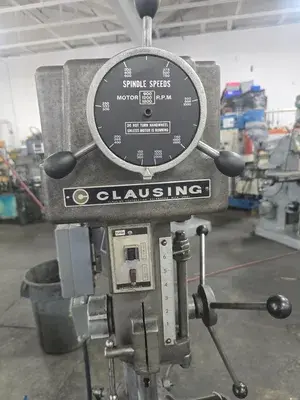

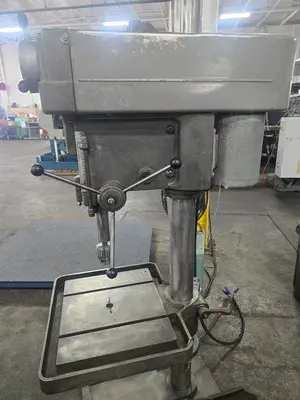

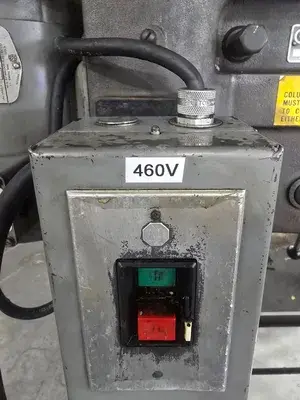

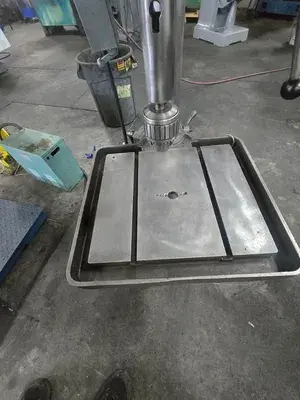

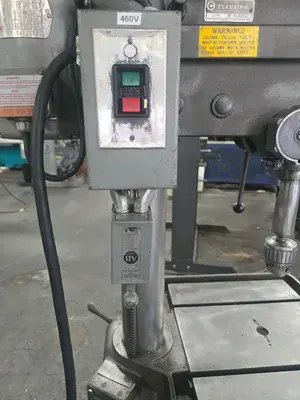

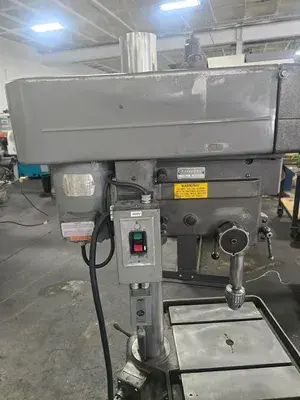

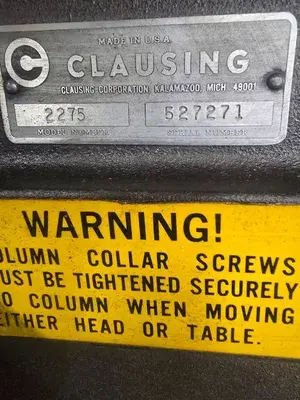

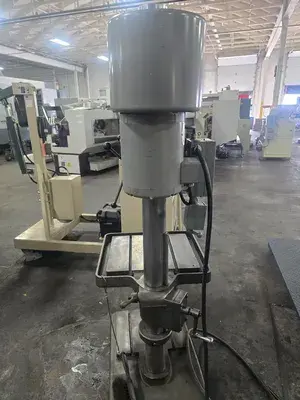

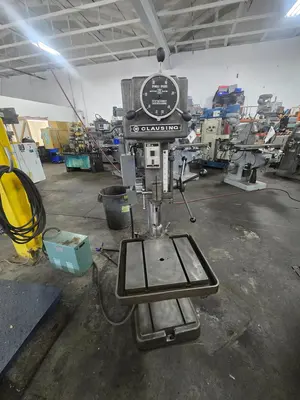

THE CLAUSING MODEL 2275 IS A 20-INCH, HEAVY-DUTY, FLOOR-STYLE DRILL PRESS. IT IS EQUIPPED WITH A 1.5 HP MOTOR AND A VARIABLE SPEED DRIVE SYSTEM, OFFERING A TYPICAL SPEED RANGE OF 200-1333 RPM. KEY SPECIFICATIONS INCLUDE A #3 MT (MORSE TAPER) SPINDLE WITH 6.5 INCHES OF TRAVEL, A 2.5-INCH DIAMETER QUILL, AND A RIGID 4-INCH DIAMETER STEEL COLUMN. THE UNIT FEATURES A PRECISION GROUND ADJUSTABLE TABLE MEASURING 22" X 19.5". IT IS DESIGNED FOR HEAVY-DUTY WORK IN STEEL AND CAST IRON, OFFERING A 7/8-INCH CAPACITY IN MILD STEEL. ELECTRICAL REQUIREMENTS ARE 460V/3PH, ALTHOUGH IT SUPPORTS 208-230/460V 3 PHASE OPERATION AND IS CURRENTLY WIRED FOR 460V. THE APPROXIMATE SHIPPING WEIGHT IS 750 LBS.
