USED CLAUSING 2276

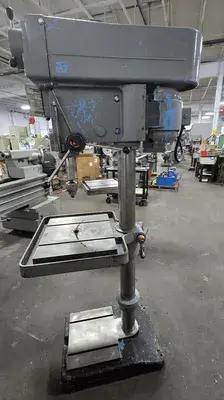

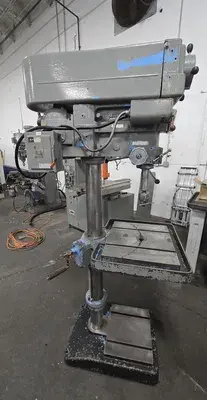

THE CLAUSING 2276 20-INCH FLOOR DRILL IS ENGINEERED FOR PRECISE DRILLING, FEATURING A CAPACITY OF 1-1/4 INCH DIAMETER IN MILD STEEL. IT ACCOMMODATES DRILLING UP TO A 20-INCH CIRCLE. THE MACHINE OPERATES WITH A TWO-SPEED MOTOR PROVIDING 1-1/2 HP AND 3/4 HP, DRIVING A VARIABLE SPEED RANGE FROM 150 TO 1,000 RPM IN THE LOW RANGE AND 300 TO 2,000 RPM IN THE HIGH RANGE. THE SPINDLE UTILIZES A #3 MORSE TAPER AND OFFERS 6.5 INCHES OF TRAVEL WITH A 2.5-INCH QUILL DIAMETER. THE WORKING SURFACE OF THE TABLE MEASURES 22 INCHES BY 19.5 INCHES, WHILE THE BASE WORKING SURFACE IS 15.5 INCHES BY 13 INCHES. KEY DISTANCES INCLUDE A MAXIMUM SPINDLE-TO-TABLE DISTANCE OF 33.125 INCHES AND A MAXIMUM SPINDLE-TO-BASE DISTANCE OF 43.375 INCHES. THE MACHINE IS SUPPORTED BY A 4-INCH DIAMETER COLUMN AND WEIGHS APPROXIMATELY 700 LBS.
