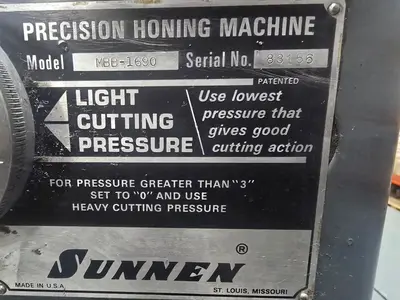

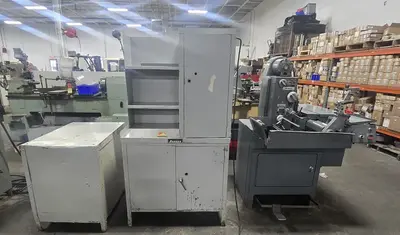

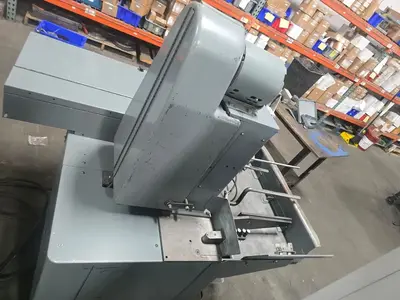

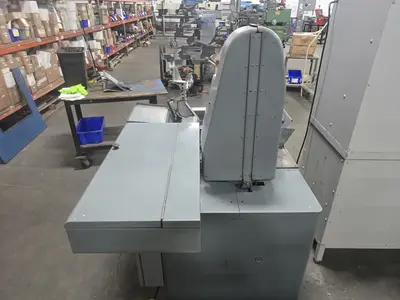

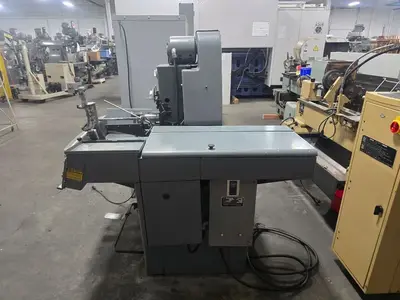

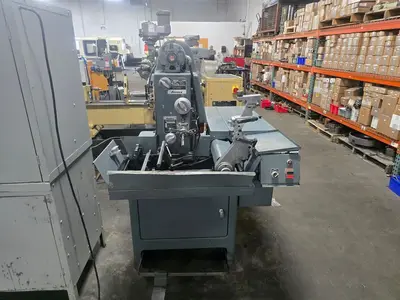

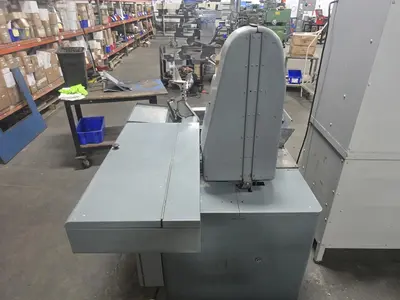

THE SUNNEN MBB-1690 POWER STROKE HONING MACHINE IS DESIGNED WITH A DIAMETER CAPACITY RANGE OF 0.060” TO 6.5” (1.5 TO 165MM) AND CAN HANDLE A MAXIMUM STROKE LENGTH OF UP TO 16” (400MM). POWER IS SUPPLIED BY A 1/2 HORSEPOWER SPINDLE MOTOR, WHICH DRIVES A 12-SPEED SPINDLE WITH SPEEDS RANGING FROM 200 TO 1600 RPM. THE STROKE SPEED IS VARIABLE, OPERATING BETWEEN 80 AND 310 SPM. THE SYSTEM INCORPORATES A SELF-CONTAINED HONING FLUID MECHANISM, COMPLETE WITH A PUMP AND FILTER, FOR EFFICIENT OPERATION. ELECTRICAL SPECIFICATIONS REQUIRE 230V, 3 PHASE, 60 HERTZ, AND 2.6 AMPS. THE MACHINE WEIGHS 2000LBS, WITH OVERALL DIMENSIONS MEASURING 56 X 58 X 70 INCHES.
