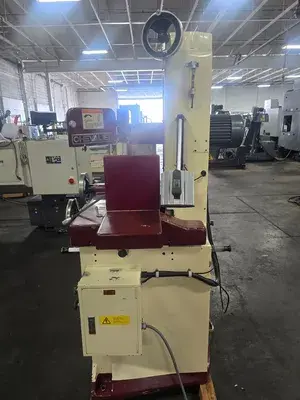

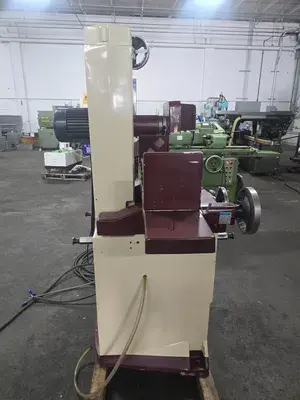

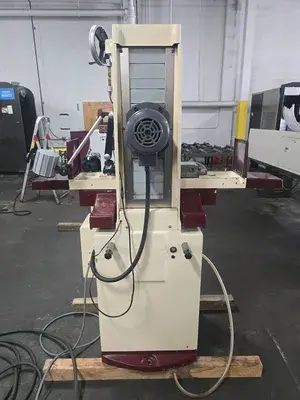

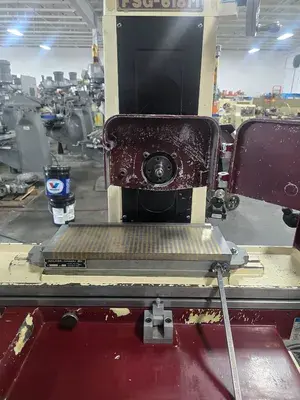

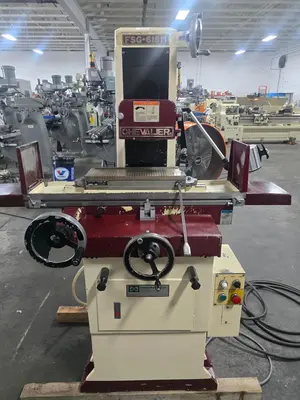

USED CHEVALIER 618M

THE CHEVALIER 618M IS A MANUAL SURFACE GRINDER FEATURING A GRINDING LENGTH OF 18.0" AND A GRINDING WIDTH OF 6.0". THE TABLE SIZE MEASURES 5.9" X 18.1", WITH A MAXIMUM MANUAL TABLE TRAVEL OF 19.0". IT HAS A MAXIMUM TABLE LOAD CAPACITY OF 462 LBS. THE MACHINE'S CAPACITY ALLOWS FOR A DISTANCE OF 17.7" FROM THE TABLE TO THE CENTERLINE OF THE WHEEL. THE TRAVERSE MOVEMENT (Z) HAS A MAXIMUM MANUAL TRAVEL OF 7.1". THE SPINDLE MOTOR IS 2 HP, AND THE SPINDLE SPEED IS 3,450 RPM AT 60 HZ OR 2,850 RPM AT 50 HZ. IT ACCOMMODATES A WHEEL DIMENSION WITH AN OD OF 8", A WIDTH OF 0.5", AND A BORE OF 1.3". THE MACHINE DIMENSIONS (FLOOR SPACE W X D X H) ARE 74.8" X 55.1" X 83.9", AND THE NET WEIGHT IS 1,480 LBS.
