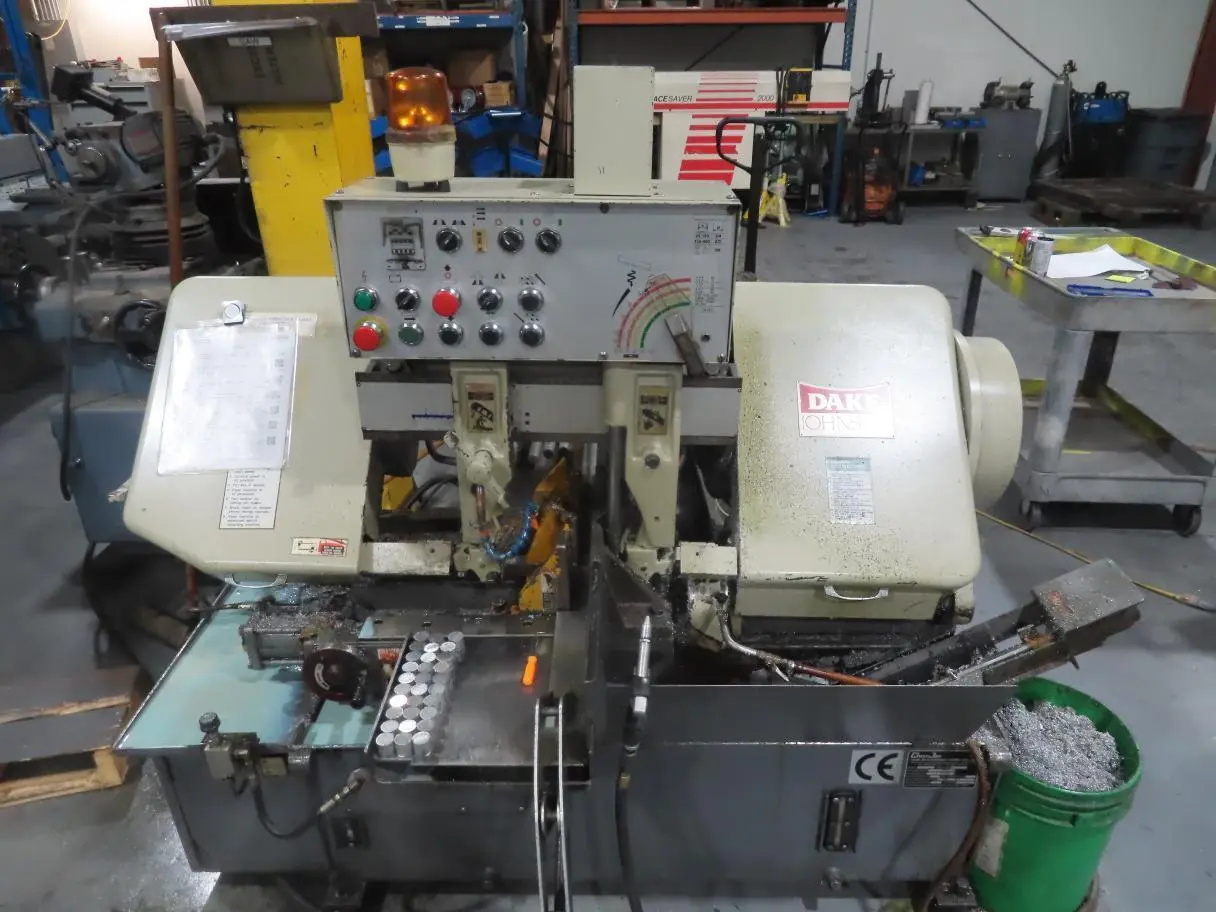

Automatic Horizontal Bandsaw
Manufacturer: Chun Jei Machinery Works (Taiwan)
Model: CB-250A (Dake Johnson)
DOM: 2003
Electrics: 220-440 Volt, 3 Phase, 60 Cycle, 8.2-4.2 Amps
Main Motor: 3 HP, 1730 RPM
Hours (meter reading): 3,348
Features and Specifications:
...Blade Size: 1.06" Width x 138" Length
...Blade Speeds (5): 88 - 262 FPM
...Feed Speed: 0.2367 - 5.512 IPM
...Workpiece Sizes:
......Rounds: 10"
......Squares: 10" x 10"
......Rectangular: 11.8" x 7"
...Index Length (Single Stroke): 15.75"
...Automatic Hydraulic Downfeed
...Shuttle Vise Feeding System
...Auger
...Coolant System
...Infeed Conveyor
Machine Dimensions (approx.): 76” x 69" x 56"
Machine Weight (approx.): 2,650 lbs.
Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.
Functionality Notes & History:
This machine is coming out of a large manufacturing house currently consolidating equipment from three buildings to one building. Selling older equipment that no longer fits in with future business plan; owner purchasing new equipment.
Machine is under power; power is going to be disconnected within 6-8 weeks. Machine is presently cutting parts for production. The indexing function does not work. The current owner does not use this function so it does not effect their production.
CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS
EQUIPMENT LOCATION: Portland, OR Metro Area
Equipment is under power; available for inspection.
Buyer responsible for loading onto transportation.
Buyer responsible for freight logistics and expenses.
MD Equipment Services (MDES) can quote loading and freight.
Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
