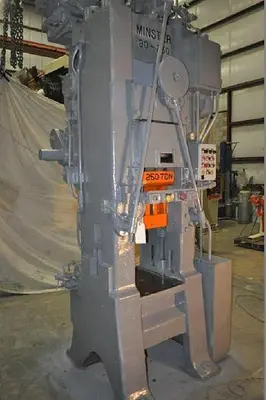

The Minster 90 is a used 250-ton knuckle joint press in good condition, ideal for industrial applications requiring high precision and strength. This unit comes equipped with an air clutch and brake system, as well as standard safety features like palm buttons. With a structure measuring 60" x 64" x 135" in height, it fits well within various manufacturing setups.
Key specifications include a 3" stroke, a shut height of 16.5", and a ram adjustment of 1/2". The bed size is 18" x 24", and the ram area is 13.75" x 12", providing adequate space for a diverse range of operations. Operating at 80 strokes per minute, it is powered by a robust 15 HP motor, compatible with 230/460 volts and a 60 Hz three-phase power supply. The press has an approximate weight of 22,000 lbs, reflecting its sturdy construction.
It should be noted that the Ross air valve is missing from this unit, which should be addressed to ensure optimal performance and safety. Despite this, the press maintains a reliable operational capacity.
Conditon: Used
Stroke: 3"
Shut height: 16.5"
Ram adjustment: 1/2"
Bed area: 18" X 24"
Ram area: 13.75" X 12"
Strokes per minute: 80
Motor: 15 HP, 230/460/60/3
Approx weight: 22,000 LBS
