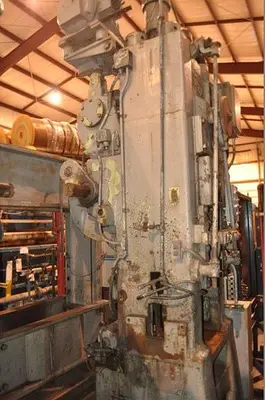

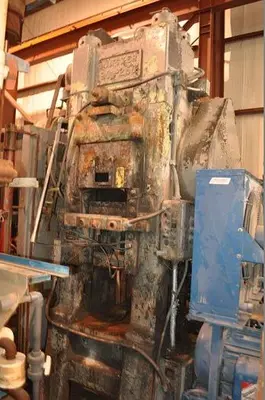

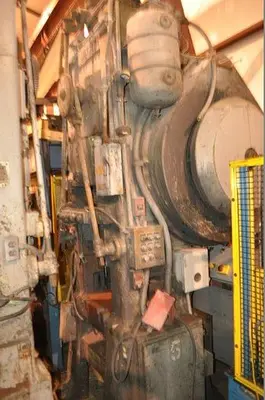

The MINSTER 90 Knuckle Joint Press, a robust machine suitable for demanding industrial applications, offers a force capacity of 250 tons. This used press is equipped with an air clutch and brake system, providing efficient operation and control. Operator safety is enhanced with palm buttons for ease of use. The machine measures 60" x 64" x 135" in height, ensuring a substantial yet manageable footprint on your production floor.
This model features a 3" stroke, with a shut height of 16.5" and a 0.5" ram adjustment, allowing for versatile operations. The bed area measures 18" x 24", while the ram area is 13.75" x 12", catering to a variety of press work. With a capability of 80 strokes per minute, this press is both efficient and reliable, meeting rigorous manufacturing needs. It operates with a 15 HP motor supporting voltage configurations of 230/460 Volts, 60 Hz, 3 Phase.
In good working condition, the MINSTER 90 weighs approximately 22,000 lbs. Note that the unit is missing the Ross air valve, which should be considered before purchase. Ideal for users looking for a robust solution in metal forming processes, this used press provides reliability and consistent performance.
Conditon: Used
Stroke: 3"
Shut height: 16.5"
Ram adjustment: 1/2"
Bed area: 18" X 24"
Ram area: 13.75" X 12"
Strokes per minute: 80
Motor: 15 HP, 230/460/60/3
Approx weight: 22,000 LBS
