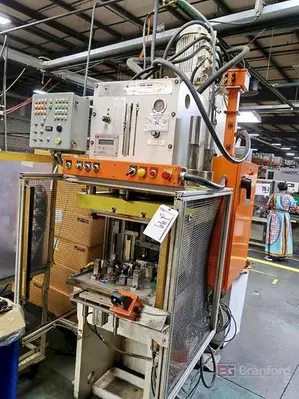

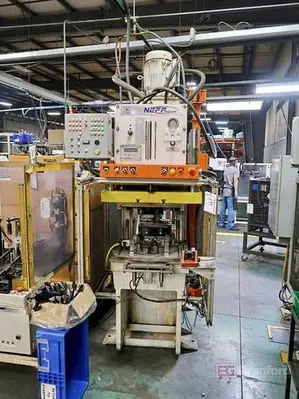

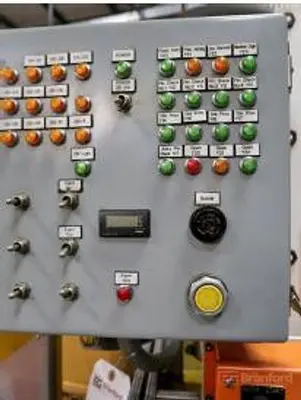

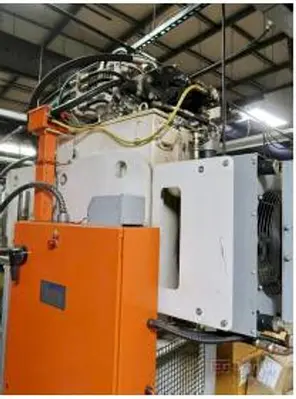

The used NEFF D40-15M is a robust 42-ton C frame hydraulic press, suitable for industrial applications requiring precise force and control. This machine features palm buttons and light curtains for enhanced safety operations. The unit operates within a pressure range of 150-3000 PSI, supported by a 60-gallon reservoir, and delivers reliable performance with its 15 HP motor running on 208/60/3 power.

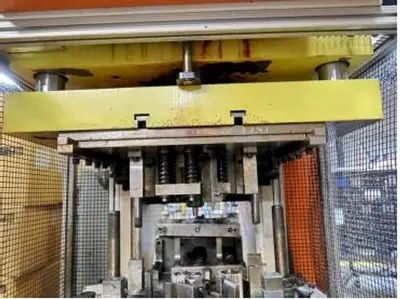

The press offers three distinct operational speeds: advancing at 642 inches per minute (IPM), pressing at 65 IPM, and returning at 514 IPM. Its design includes a 4-post guided frame, ensuring consistent movement and alignment during operations. The working area consists of a 24" x 21" ram and bed, with a 6" piston diameter and a 10" throat, providing ample space for a variety of pressing tasks.
With approximate dimensions of 45" x 76" x 82" tall and a weight of 6,000 lbs, this hydraulic press is a substantial piece of equipment, emphasizing its durability and capacity for heavy-duty tasks. Suitable for industries requiring robust and efficient pressing solutions, this NEFF model demonstrates high performance and reliable construction.
MODEL: D40-15M
SERIAL NUMBER: 12096
RAM: 24" x 21"
BED: 24" x 21" x 3"
PISTON DIAMETER: 6"
THROAT: 10"
ADVANCE: 642 IPM
PRESSING: 65 IPM
RETURN: 514 IPM
APPROX WEIGHT: 6,000 LBS
